43-02740

Active

Amphenol CONEC

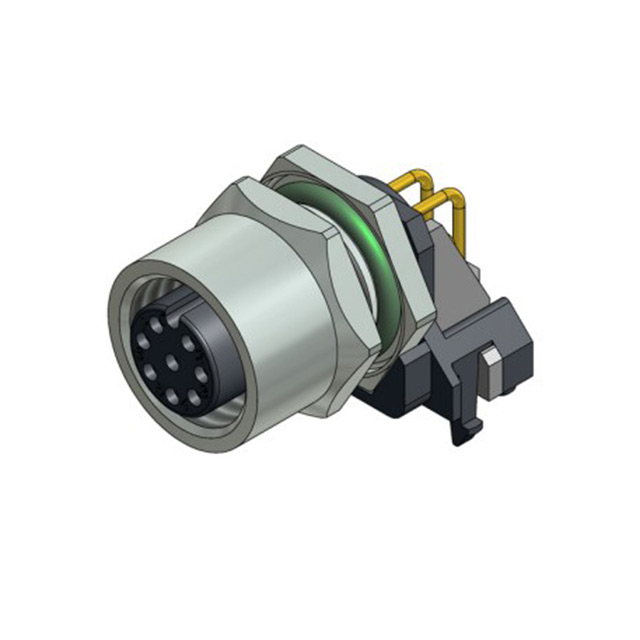

SENSOR CONN, M12, R/A RCPT, 8POS, PANEL ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Amphenol CONEC

SENSOR CONN, M12, R/A RCPT, 8POS, PANEL ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	43-02740

Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Zinc
Current Rating (Amps)	2 A
Features	Board Guide, Board Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	8
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Zinc
Shell Size - Insert	M12-8
Shielding	Shielded
Termination	Solder
Voltage Rating	30 VDC

Part	Ingress Protection	Mounting Feature	Mounting Type	Primary Material	Shielding	Material Flammability Rating	Color	Features	Contact Finish - Mating	Orientation	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Insert Material	Shell Size - Insert	Number of Positions	Current Rating (Amps)	Shell Finish	Voltage Rating	Connector Type	Termination
Amphenol CONEC 43-02742	IP67 - Dust Tight Waterproof	Bulkhead	Panel Mount Right Angle Through Hole	Metal	Shielded	UL94 V-0	Silver	Board Guide Board Lock	Gold	A	Copper Zinc	-30 ░C	85 °C	Copper Zinc	Polyamide (PA) Nylon Glass Filled	M12-12	12	1.5 A	Nickel	30 VDC	Female Sockets Plug	Solder
Amphenol CONEC 43-02741	IP67 - Dust Tight Waterproof	Bulkhead	Panel Mount Right Angle Through Hole	Metal	Unshielded	UL94 V-0	Silver	Board Guide Board Lock	Gold	A	Copper Zinc	-30 ░C	85 °C	Copper Zinc	Polyamide (PA) Nylon Glass Filled	M12-12	12	1.5 A	Nickel	30 VDC	Female Sockets Plug	Solder
Amphenol CONEC 43-02740	IP67 - Dust Tight Waterproof	Bulkhead	Panel Mount Right Angle Through Hole	Metal	Shielded	UL94 V-0	Silver	Board Guide Board Lock	Gold	A	Copper Zinc	-30 ░C	85 °C	Copper Zinc	Polyamide (PA) Nylon Glass Filled	M12-8	8	2 A	Nickel	30 VDC	Female Sockets Plug	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Plug, Female Sockets Solder
