43-02741
ActiveAmphenol CONEC

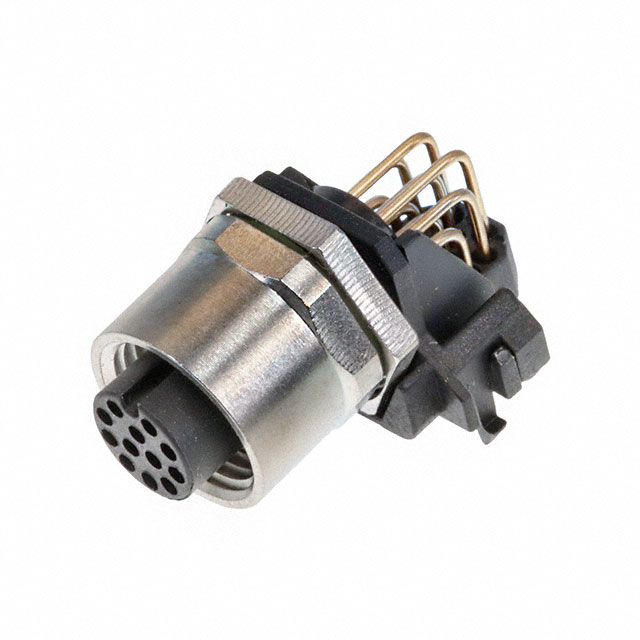

SENSOR CONN, M12, R/A RCPT, 12POS, PANEL ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
43-02741
ActiveAmphenol CONEC
SENSOR CONN, M12, R/A RCPT, 12POS, PANEL ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 43-02741 |
|---|---|
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Zinc |
| Current Rating (Amps) | 1.5 A |
| Features | Board Guide, Board Lock |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA), Nylon, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 12 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Copper Zinc |
| Shell Size - Insert | M12-12 |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 30 VDC |
43-0274 Series
| Part | Ingress Protection | Mounting Feature | Mounting Type | Primary Material | Shielding | Material Flammability Rating | Color | Features | Contact Finish - Mating | Orientation | Shell Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Insert Material | Shell Size - Insert | Number of Positions | Current Rating (Amps) | Shell Finish | Voltage Rating | Connector Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol CONEC | IP67 - Dust Tight Waterproof | Bulkhead | Panel Mount Right Angle Through Hole | Metal | Shielded | UL94 V-0 | Silver | Board Guide Board Lock | Gold | A | Copper Zinc | -30 ░C | 85 °C | Copper Zinc | Polyamide (PA) Nylon Glass Filled | M12-12 | 12 | 1.5 A | Nickel | 30 VDC | Female Sockets Plug | Solder |
Amphenol CONEC | IP67 - Dust Tight Waterproof | Bulkhead | Panel Mount Right Angle Through Hole | Metal | Unshielded | UL94 V-0 | Silver | Board Guide Board Lock | Gold | A | Copper Zinc | -30 ░C | 85 °C | Copper Zinc | Polyamide (PA) Nylon Glass Filled | M12-12 | 12 | 1.5 A | Nickel | 30 VDC | Female Sockets Plug | Solder |
Amphenol CONEC | IP67 - Dust Tight Waterproof | Bulkhead | Panel Mount Right Angle Through Hole | Metal | Shielded | UL94 V-0 | Silver | Board Guide Board Lock | Gold | A | Copper Zinc | -30 ░C | 85 °C | Copper Zinc | Polyamide (PA) Nylon Glass Filled | M12-8 | 8 | 2 A | Nickel | 30 VDC | Female Sockets Plug | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
43-0274 Series
12 Position Circular Connector Plug, Female Sockets Solder
