43-02742

Active

Amphenol CONEC

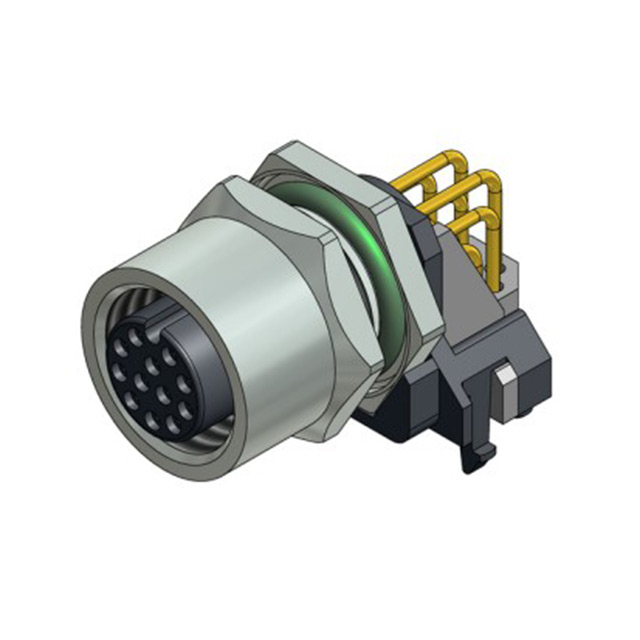

SENSOR CONN, M12, R/A RCPT, 12POS, PANEL ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Amphenol CONEC

SENSOR CONN, M12, R/A RCPT, 12POS, PANEL ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	43-02742

Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Zinc
Current Rating (Amps)	1.5 A
Features	Board Guide, Board Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	12
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Zinc
Shell Size - Insert	M12-12
Shielding	Shielded
Termination	Solder
Voltage Rating	30 VDC

Part	Ingress Protection	Mounting Feature	Mounting Type	Primary Material	Shielding	Material Flammability Rating	Color	Features	Contact Finish - Mating	Orientation	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Insert Material	Shell Size - Insert	Number of Positions	Current Rating (Amps)	Shell Finish	Voltage Rating	Connector Type	Termination
Amphenol CONEC 43-02742	IP67 - Dust Tight Waterproof	Bulkhead	Panel Mount Right Angle Through Hole	Metal	Shielded	UL94 V-0	Silver	Board Guide Board Lock	Gold	A	Copper Zinc	-30 ░C	85 °C	Copper Zinc	Polyamide (PA) Nylon Glass Filled	M12-12	12	1.5 A	Nickel	30 VDC	Female Sockets Plug	Solder
Amphenol CONEC 43-02741	IP67 - Dust Tight Waterproof	Bulkhead	Panel Mount Right Angle Through Hole	Metal	Unshielded	UL94 V-0	Silver	Board Guide Board Lock	Gold	A	Copper Zinc	-30 ░C	85 °C	Copper Zinc	Polyamide (PA) Nylon Glass Filled	M12-12	12	1.5 A	Nickel	30 VDC	Female Sockets Plug	Solder
Amphenol CONEC 43-02740	IP67 - Dust Tight Waterproof	Bulkhead	Panel Mount Right Angle Through Hole	Metal	Shielded	UL94 V-0	Silver	Board Guide Board Lock	Gold	A	Copper Zinc	-30 ░C	85 °C	Copper Zinc	Polyamide (PA) Nylon Glass Filled	M12-8	8	2 A	Nickel	30 VDC	Female Sockets Plug	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position Circular Connector Plug, Female Sockets Solder
