31-71033

Amphenol RF

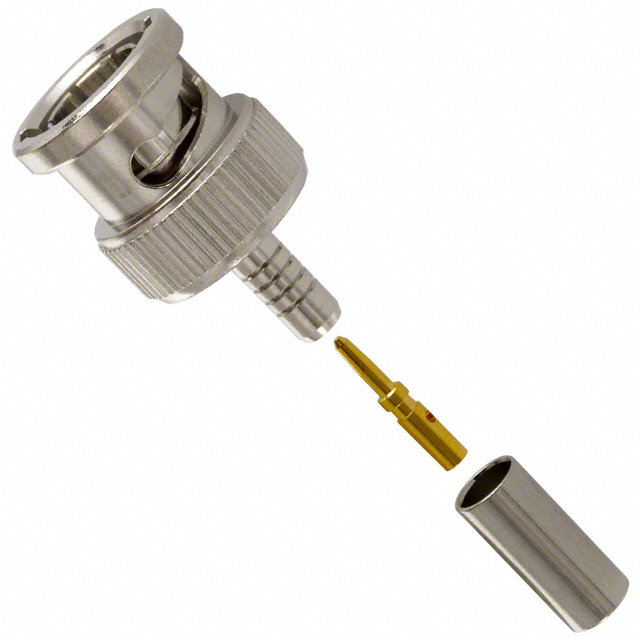

CONN BNC PLUG STR 75 OHM CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

31-71033

Amphenol RF

CONN BNC PLUG STR 75 OHM CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	31-71033

Body Finish	Nickel
Body Material	Brass
Cable Group	AT&T 735, 735A, Belden 735A1
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	75 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

31-710 Series

Part	Center Contact Material	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Body Material	Voltage Rating	Cable Group	Housing Color	Shield Termination	Connector Type	Mating Cycles	Contact Termination	Includes	Number of Ports	Impedance	Insertion Loss	Fastening Type	Dielectric Material	Frequency - Max [Max]	Body Finish	Center Contact Plating	Mounting Feature	Features
Amphenol RF 31-71008-RFX	Brass	BNC	-65 ░C	165 °C	Free Hanging (In-Line)	Brass	500 V	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	Silver	Crimp	Male Pin Plug	500	Crimp	1 Bushing 1 Connector 1 Contact 1 Ferrule	1	75 Ohms	0.2 dB	Bayonet Lock	Polyoxymethylene (POM) Acetal	2 GHz	Nickel	Gold
Amphenol RF 31-71013	Brass	BNC	-65 ░C	165 °C	Free Hanging (In-Line)	Brass	500 V	179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179	Silver	Crimp	Male Pin Plug	500	Crimp	1 Connector 1 Contact 1 Ferrule 1 Sleeve	1	75 Ohms	0.2 dB	Bayonet Lock	Polytetrafluoroethylene (PTFE)	2 GHz	Nickel	Gold
Amphenol RF 31-71032	Brass	BNC	-65 ░C	165 °C	Free Hanging (In-Line)	Brass	500 V	RG-59 Double Braid Belden 9231	Silver	Crimp	Male Pin Plug	500	Crimp	1 Connector 1 Contact 1 Ferrule	1	75 Ohms	0.2 dB	Bayonet Lock	Polytetrafluoroethylene (PTFE)	4 GHz	Nickel	Gold
Amphenol RF 31-71043-1010	Phosphor Bronze	BNC	-55 °C	85 °C	Panel Mount Right Angle Through Hole	Zinc Die Cast	500 V		Silver	Solder	Female Socket Jack	500	Solder		1	75 Ohms	0.2 dB	Bayonet Lock	Polypropylene (PP)	1 GHz	Nickel	Gold	Bulkhead - Front Side Nut
Amphenol RF 31-71033	Brass	BNC	-65 ░C	165 °C	Free Hanging (In-Line)	Brass	500 V	735A AT&T 735 Belden 735A1	Silver	Crimp	Male Pin Plug	500	Crimp	1 Connector 1 Contact 1 Ferrule	1	75 Ohms	0.2 dB	Bayonet Lock	Polytetrafluoroethylene (PTFE)	4 GHz	Nickel	Gold
Amphenol RF 31-71047-1010	Phosphor Bronze	BNC	-55 °C	85 °C	Panel Mount Right Angle Through Hole	Zinc Die Cast	500 V		Silver White	Solder	Female Socket Jack	500	Solder		1	75 Ohms	0.2 dB	Bayonet Lock	Polypropylene (PP)	1 GHz	Nickel	Gold	Bulkhead - Front Side Nut	Board Lock Isolated

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.28
		10	$ 7.49
		25	$ 7.07
		50	$ 6.90
		100	$ 6.55
		250	$ 5.86
		500	$ 5.52
		1000	$ 4.83

Description

General part information

31-710 Series

BNC Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Crimp
