31-71047-1010

Active

Amphenol RF

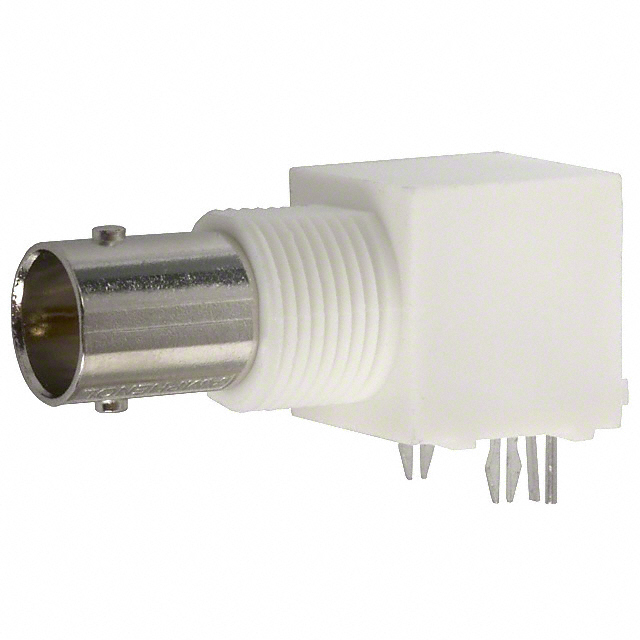

RF / COAXIAL CONNECTOR, BNC COAXIAL, RIGHT ANGLE BULKHEAD JACK, SOLDER, 75 OHM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

31-71047-1010

Active

Amphenol RF

RF / COAXIAL CONNECTOR, BNC COAXIAL, RIGHT ANGLE BULKHEAD JACK, SOLDER, 75 OHM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	31-71047-1010

Body Finish	Nickel
Body Material	Zinc Die Cast
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polypropylene (PP)
Fastening Type	Bayonet Lock
Features	Board Lock, Isolated
Frequency - Max [Max]	1 GHz
Housing Color	White, Silver
Impedance	75 Ohms
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	500 V

31-710 Series

Part	Center Contact Material	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Body Material	Voltage Rating	Cable Group	Housing Color	Shield Termination	Connector Type	Mating Cycles	Contact Termination	Includes	Number of Ports	Impedance	Insertion Loss	Fastening Type	Dielectric Material	Frequency - Max [Max]	Body Finish	Center Contact Plating	Mounting Feature	Features
Amphenol RF 31-71008-RFX	Brass	BNC	-65 ░C	165 °C	Free Hanging (In-Line)	Brass	500 V	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	Silver	Crimp	Male Pin Plug	500	Crimp	1 Bushing 1 Connector 1 Contact 1 Ferrule	1	75 Ohms	0.2 dB	Bayonet Lock	Polyoxymethylene (POM) Acetal	2 GHz	Nickel	Gold
Amphenol RF 31-71013	Brass	BNC	-65 ░C	165 °C	Free Hanging (In-Line)	Brass	500 V	179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179	Silver	Crimp	Male Pin Plug	500	Crimp	1 Connector 1 Contact 1 Ferrule 1 Sleeve	1	75 Ohms	0.2 dB	Bayonet Lock	Polytetrafluoroethylene (PTFE)	2 GHz	Nickel	Gold
Amphenol RF 31-71032	Brass	BNC	-65 ░C	165 °C	Free Hanging (In-Line)	Brass	500 V	RG-59 Double Braid Belden 9231	Silver	Crimp	Male Pin Plug	500	Crimp	1 Connector 1 Contact 1 Ferrule	1	75 Ohms	0.2 dB	Bayonet Lock	Polytetrafluoroethylene (PTFE)	4 GHz	Nickel	Gold
Amphenol RF 31-71043-1010	Phosphor Bronze	BNC	-55 °C	85 °C	Panel Mount Right Angle Through Hole	Zinc Die Cast	500 V		Silver	Solder	Female Socket Jack	500	Solder		1	75 Ohms	0.2 dB	Bayonet Lock	Polypropylene (PP)	1 GHz	Nickel	Gold	Bulkhead - Front Side Nut
Amphenol RF 31-71033	Brass	BNC	-65 ░C	165 °C	Free Hanging (In-Line)	Brass	500 V	735A AT&T 735 Belden 735A1	Silver	Crimp	Male Pin Plug	500	Crimp	1 Connector 1 Contact 1 Ferrule	1	75 Ohms	0.2 dB	Bayonet Lock	Polytetrafluoroethylene (PTFE)	4 GHz	Nickel	Gold
Amphenol RF 31-71047-1010	Phosphor Bronze	BNC	-55 °C	85 °C	Panel Mount Right Angle Through Hole	Zinc Die Cast	500 V		Silver White	Solder	Female Socket Jack	500	Solder		1	75 Ohms	0.2 dB	Bayonet Lock	Polypropylene (PP)	1 GHz	Nickel	Gold	Bulkhead - Front Side Nut	Board Lock Isolated

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.97
		10	$ 8.07
		100	$ 7.22
		1000	$ 5.34
Newark	Each	100	$ 5.83
		250	$ 5.29

Description

General part information

31-710 Series

BNC Connector Jack, Female Socket 75 Ohms Panel Mount, Through Hole, Right Angle Solder
