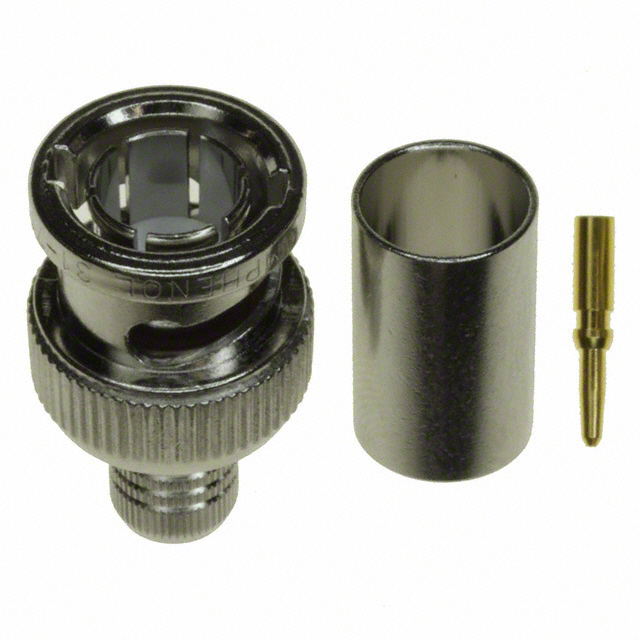

31-71032

Active

Amphenol RF

CONN BNC PLUG STR 75 OHM CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

31-71032

Active

Amphenol RF

CONN BNC PLUG STR 75 OHM CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	31-71032

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-59 Double Braid, Belden 9231
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	75 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

31-710 Series

Part	Center Contact Material	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Body Material	Voltage Rating	Cable Group	Housing Color	Shield Termination	Connector Type	Mating Cycles	Contact Termination	Includes	Number of Ports	Impedance	Insertion Loss	Fastening Type	Dielectric Material	Frequency - Max [Max]	Body Finish	Center Contact Plating	Mounting Feature	Features
Amphenol RF 31-71008-RFX	Brass	BNC	-65 ░C	165 °C	Free Hanging (In-Line)	Brass	500 V	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	Silver	Crimp	Male Pin Plug	500	Crimp	1 Bushing 1 Connector 1 Contact 1 Ferrule	1	75 Ohms	0.2 dB	Bayonet Lock	Polyoxymethylene (POM) Acetal	2 GHz	Nickel	Gold
Amphenol RF 31-71013	Brass	BNC	-65 ░C	165 °C	Free Hanging (In-Line)	Brass	500 V	179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179	Silver	Crimp	Male Pin Plug	500	Crimp	1 Connector 1 Contact 1 Ferrule 1 Sleeve	1	75 Ohms	0.2 dB	Bayonet Lock	Polytetrafluoroethylene (PTFE)	2 GHz	Nickel	Gold
Amphenol RF 31-71032	Brass	BNC	-65 ░C	165 °C	Free Hanging (In-Line)	Brass	500 V	RG-59 Double Braid Belden 9231	Silver	Crimp	Male Pin Plug	500	Crimp	1 Connector 1 Contact 1 Ferrule	1	75 Ohms	0.2 dB	Bayonet Lock	Polytetrafluoroethylene (PTFE)	4 GHz	Nickel	Gold
Amphenol RF 31-71043-1010	Phosphor Bronze	BNC	-55 °C	85 °C	Panel Mount Right Angle Through Hole	Zinc Die Cast	500 V		Silver	Solder	Female Socket Jack	500	Solder		1	75 Ohms	0.2 dB	Bayonet Lock	Polypropylene (PP)	1 GHz	Nickel	Gold	Bulkhead - Front Side Nut
Amphenol RF 31-71033	Brass	BNC	-65 ░C	165 °C	Free Hanging (In-Line)	Brass	500 V	735A AT&T 735 Belden 735A1	Silver	Crimp	Male Pin Plug	500	Crimp	1 Connector 1 Contact 1 Ferrule	1	75 Ohms	0.2 dB	Bayonet Lock	Polytetrafluoroethylene (PTFE)	4 GHz	Nickel	Gold
Amphenol RF 31-71047-1010	Phosphor Bronze	BNC	-55 °C	85 °C	Panel Mount Right Angle Through Hole	Zinc Die Cast	500 V		Silver White	Solder	Female Socket Jack	500	Solder		1	75 Ohms	0.2 dB	Bayonet Lock	Polypropylene (PP)	1 GHz	Nickel	Gold	Bulkhead - Front Side Nut	Board Lock Isolated

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.40
		10	$ 7.59
		25	$ 7.17
		50	$ 7.00
		100	$ 6.65
		250	$ 5.95
		500	$ 5.60
		1000	$ 4.90

Description

General part information

31-710 Series

BNC Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Crimp
