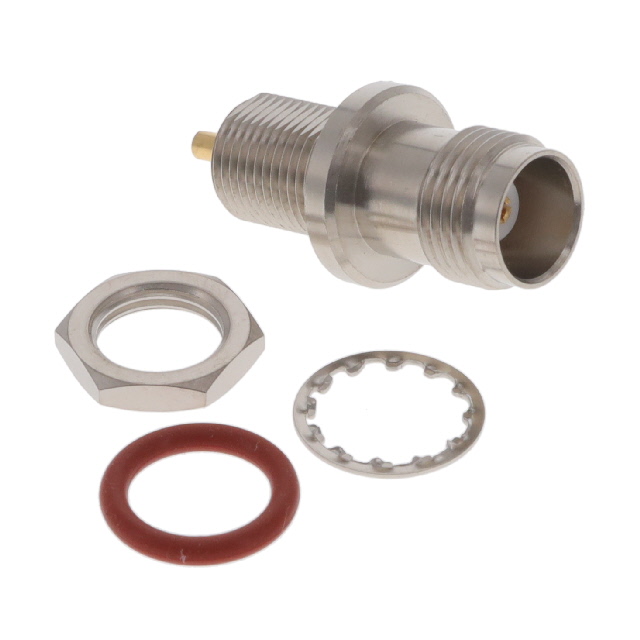

R125326000W - R143603000

R125326000W

Active
Radiall USA, Inc.

SMA / STRAIGHT BULKHEAD JACK PAN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
R125326000W - R143603000

R125326000W

Active
Radiall USA, Inc.

SMA / STRAIGHT BULKHEAD JACK PAN

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationR125326000W
Body FinishGold
Body MaterialStainless Steel
Cable GroupRG-405 (.085" Semi Rigid)
Center Contact MaterialBeryllium Copper
Center Contact PlatingGold
Connector StyleSMA
Connector TypeFemale Socket, Jack
Contact TerminationSolder
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Frequency - Max [Max]18 GHz
Housing ColorGold
Impedance50 Ohms
Mating Cycles500
Mounting FeatureBulkhead - Front Side Nut
Number of Ports1
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-65 ░C
Shield TerminationSolder
Voltage Rating250 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBox 1$ 15.18
10$ 14.45

Description

General part information

R12532 Series

SMA Connector Jack, Female Socket 50 Ohms Panel Mount Solder
