R125322030

Active

Radiall USA, Inc.

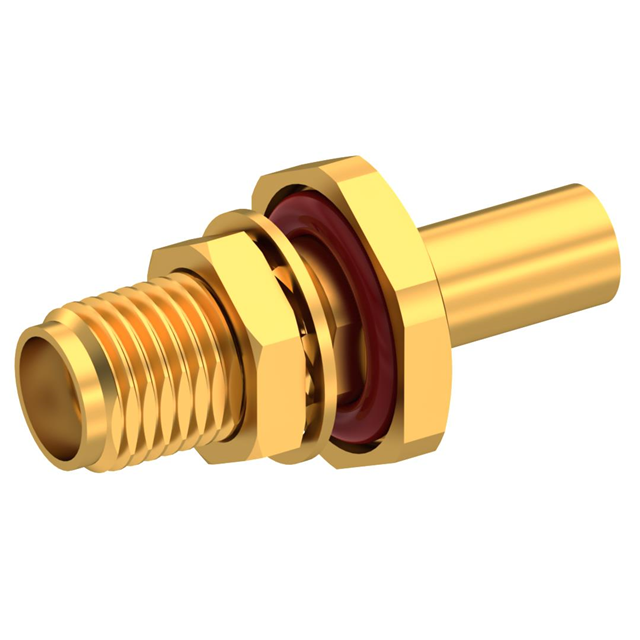

SMA / STRAIGHT BULKHEAD JACK PAN

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA / STRAIGHT BULKHEAD JACK PAN

Technical Specifications

Parameters and characteristics for this part

Specification	R125322030

Body Finish	Gold
Body Material	Stainless Steel
Cable Group	RG-316DS
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Contact Termination	Center Contact Material	Center Contact Plating	Impedance	Shield Termination	Mating Cycles	Housing Color	Number of Ports	Body Finish	Dielectric Material	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Connector Type	Frequency - Max [Max]	Body Material	Connector Style	Cable Group
Radiall USA, Inc. R125325000W	Solder	Beryllium Copper	Gold	50 Ohms	Solder	500	Gold	1	Gold	Polytetrafluoroethylene (PTFE)	Bulkhead - Front Side Nut	-65 ░C	105 ░C	250 VDC	Female Socket Jack	18 GHz	Stainless Steel	SMA
Radiall USA, Inc. R125322030	Crimp	Beryllium Copper	Gold	50 Ohms	Crimp	500	Gold	1	Gold	Polytetrafluoroethylene (PTFE)	Bulkhead - Front Side Nut	-65 ░C	165 °C	500 V	Female Socket Jack	12.4 GHz	Stainless Steel	SMA	RG-316DS
Radiall USA, Inc. R125326000W	Solder	Beryllium Copper	Gold	50 Ohms	Solder	500	Gold	1	Gold	Polytetrafluoroethylene (PTFE)	Bulkhead - Front Side Nut	-65 ░C	105 ░C	250 VDC	Female Socket Jack	18 GHz	Stainless Steel	SMA	RG-405 (.085" Semi Rigid)
Radiall USA, Inc. R125325000	Solder	Beryllium Copper	Gold	50 Ohms	Solder	500	Gold	1	Gold	Polytetrafluoroethylene (PTFE)	Bulkhead - Front Side Nut	-65 ░C	105 ░C	500 V	Female Socket Jack	18 GHz	Stainless Steel	SMA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	100	$ 12.12

General part information

SMA Connector Jack, Female Socket 50 Ohms Panel Mount Crimp
