623-025-361-033
ActiveEDAC Inc.

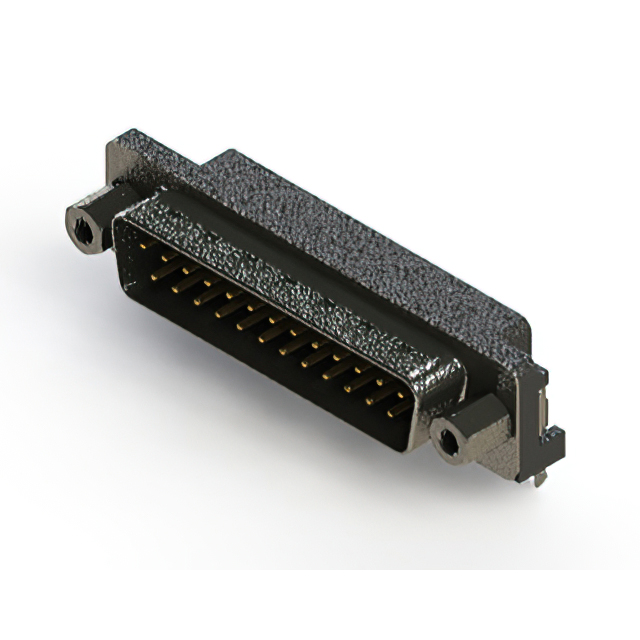

CONN D-SUB PLUG 25POS R/A SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
623-025-361-033
ActiveEDAC Inc.
CONN D-SUB PLUG 25POS R/A SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 623-025-361-033 |
|---|---|
| Backset Spacing | 0.197 in |
| Backset Spacing | 5 mm |
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Finish Thickness | 0.38 µm |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polyester Thermoplastic |
| Features | Board Lock, Mounting Brackets, Grounding Indents, Shielded |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Board Edge |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | DB, B |
| Shell Size, Connector Layout [custom] | 3 |
| Termination | Solder |
623-025 Series
| Part | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Mounting Type | Flange Feature | Backset Spacing | Backset Spacing | Connector Style | Material Flammability Rating | Contact Type | Dielectric Material | Color | Features | Current Rating (Amps) | Termination | Number of Rows | Contact Finish | Connector Type | Contact Material | Shell Material, Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 15 µin | 0.38 µm | -55 °C | 125 °C | B DB | 3 | Board Edge Right Angle Through Hole | Housing/Shell (4-40) | 0.197 in | 5 mm | D-Sub | UL94 V-0 | Signal | Polyester Thermoplastic | Black | Board Lock Grounding Indents Mounting Brackets Shielded | 3 A | Solder | 2 | Gold | Male Pins Plug | Copper Alloy | Nickel Plated Steel | |
EDAC Inc. | 30 Áin | 0.76 Ám | -55 °C | 85 °C | B DB | 3 | Board Edge Right Angle Through Hole | Housing/Shell (4-40) | 0.197 in | 5 mm | D-Sub | UL94 V-0 | Signal | Polyester Thermoplastic | Black | Board Lock Grounding Indents Mounting Brackets Shielded | 3 A | Solder | 2 | Gold | Male Pins Plug | Copper Alloy | Nickel Plated Steel | |
EDAC Inc. | 30 Áin | 0.76 Ám | -55 °C | 125 °C | B DB | 3 | Board Edge Right Angle Through Hole | Housing/Shell (4-40) | 0.197 in | 5 mm | D-Sub | UL94 V-0 | Signal | Polyester Thermoplastic | Black | Board Lock Grounding Indents Mounting Brackets Shielded | 3 A | Solder | 2 | Gold | Male Pins Plug | Copper Alloy | Nickel Plated Steel | |
EDAC Inc. | -55 °C | 85 °C | B DB | 3 | Board Edge Right Angle Through Hole | Housing/Shell (Unthreaded) | 0.197 in | 5 mm | D-Sub | UL94 V-0 | Signal | Polyester Thermoplastic | Black | Board Lock Grounding Indents Mounting Brackets Shielded | 3 A | Solder | 2 | Gold | Male Pins Plug | Copper Alloy | Nickel Plated Steel | Flash | ||
EDAC Inc. | 15 µin | 0.38 µm | -55 °C | 85 °C | B DB | 3 | Board Edge Right Angle Through Hole | Housing/Shell (4-40) | 0.197 in | 5 mm | D-Sub | UL94 V-0 | Signal | Polyester Thermoplastic | Black | Board Lock Grounding Indents Mounting Brackets Shielded | 3 A | Solder | 2 | Gold | Male Pins Plug | Copper Alloy | Nickel Plated Steel | |
EDAC Inc. | -55 °C | 85 °C | B DB | 3 | Board Edge Right Angle Through Hole | Housing/Shell (4-40) | 0.197 in | 5 mm | D-Sub | UL94 V-0 | Signal | Polyester Thermoplastic | Black | Board Lock Grounding Indents Mounting Brackets Shielded | 3 A | Solder | 2 | Gold | Male Pins Plug | Copper Alloy | Nickel Plated Steel | Flash | ||
EDAC Inc. | 15 µin | 0.38 µm | -55 °C | 85 °C | B DB | 3 | Board Edge Right Angle Through Hole | Housing/Shell (M3) | 0.197 in | 5 mm | D-Sub | UL94 V-0 | Signal | Polyester Thermoplastic | Black | Board Lock Grounding Indents Mounting Brackets Shielded | 3 A | Solder | 2 | Gold | Male Pins Plug | Copper Alloy | Nickel Plated Steel | |
EDAC Inc. | -55 °C | 85 °C | B DB | 3 | Board Edge Right Angle Through Hole | Female Screwlock (4-40) Mating Side | 0.197 in | 5 mm | D-Sub | UL94 V-0 | Signal | Polyester Thermoplastic | Black | Board Lock Grounding Indents Mounting Brackets Shielded | 3 A | Solder | 2 | Gold | Male Pins Plug | Copper Alloy | Nickel Plated Steel | Flash | ||
EDAC Inc. | -55 °C | 125 °C | B DB | 3 | Board Edge Right Angle Through Hole | Female Screwlock (4-40) Mating Side | 0.197 in | 5 mm | D-Sub | UL94 V-0 | Signal | Polyester Thermoplastic | Black | Board Lock Grounding Indents Mounting Brackets Shielded | 3 A | Solder | 2 | Gold | Male Pins Plug | Copper Alloy | Nickel Plated Steel | Flash | ||
EDAC Inc. | 15 µin | 0.38 µm | -55 °C | 85 °C | B DB | 3 | Board Edge Right Angle Through Hole | Female Screwlock (4-40) Mating Side | 0.197 in | 5 mm | D-Sub | UL94 V-0 | Signal | Polyester Thermoplastic | Black | Board Lock Grounding Indents Mounting Brackets Shielded | 3 A | Solder | 2 | Gold | Male Pins Plug | Copper Alloy | Nickel Plated Steel |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 50 | $ 4.17 | |
Description
General part information
623-025 Series
25 Position D-Sub Plug, Male Pins Connector
