623-025-261-032

Active

EDAC Inc.

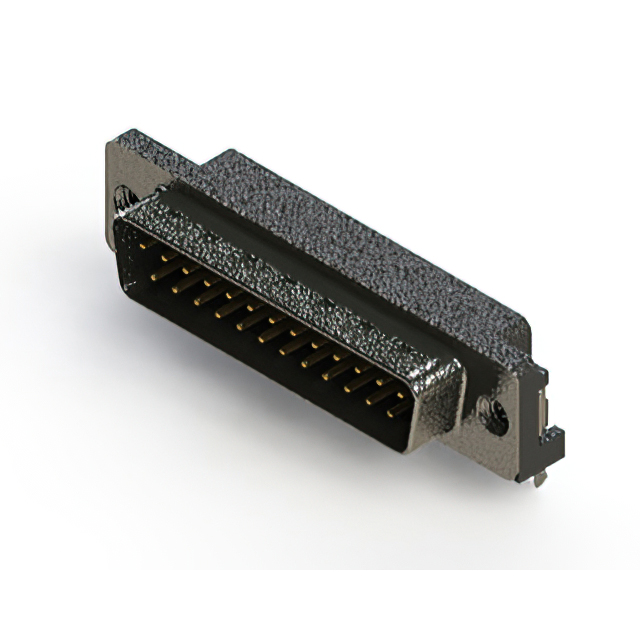

CONN D-SUB PLUG 25POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Interconnect Solutions Brochure

623-025-261-032

Active

EDAC Inc.

CONN D-SUB PLUG 25POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet Interconnect Solutions Brochure

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	623-025-261-032

Backset Spacing	0.197 in
Backset Spacing	5 mm
Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Board Lock, Mounting Brackets, Grounding Indents, Shielded
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	Solder

623-025 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Mounting Type	Flange Feature	Backset Spacing	Backset Spacing	Connector Style	Material Flammability Rating	Contact Type	Dielectric Material	Color	Features	Current Rating (Amps)	Termination	Number of Rows	Contact Finish	Connector Type	Contact Material	Shell Material, Finish	Contact Finish Thickness
EDAC Inc. 623-025-361-532	15 µin	0.38 µm	-55 °C	125 °C	B DB	3	Board Edge Right Angle Through Hole	Housing/Shell (4-40)	0.197 in	5 mm	D-Sub	UL94 V-0	Signal	Polyester Thermoplastic	Black	Board Lock Grounding Indents Mounting Brackets Shielded	3 A	Solder	2	Gold	Male Pins Plug	Copper Alloy	Nickel Plated Steel
EDAC Inc. 623-025-661-032	30 Áin	0.76 Ám	-55 °C	85 °C	B DB	3	Board Edge Right Angle Through Hole	Housing/Shell (4-40)	0.197 in	5 mm	D-Sub	UL94 V-0	Signal	Polyester Thermoplastic	Black	Board Lock Grounding Indents Mounting Brackets Shielded	3 A	Solder	2	Gold	Male Pins Plug	Copper Alloy	Nickel Plated Steel
EDAC Inc. 623-025-661-532	30 Áin	0.76 Ám	-55 °C	125 °C	B DB	3	Board Edge Right Angle Through Hole	Housing/Shell (4-40)	0.197 in	5 mm	D-Sub	UL94 V-0	Signal	Polyester Thermoplastic	Black	Board Lock Grounding Indents Mounting Brackets Shielded	3 A	Solder	2	Gold	Male Pins Plug	Copper Alloy	Nickel Plated Steel
EDAC Inc. 623-025-261-031			-55 °C	85 °C	B DB	3	Board Edge Right Angle Through Hole	Housing/Shell (Unthreaded)	0.197 in	5 mm	D-Sub	UL94 V-0	Signal	Polyester Thermoplastic	Black	Board Lock Grounding Indents Mounting Brackets Shielded	3 A	Solder	2	Gold	Male Pins Plug	Copper Alloy	Nickel Plated Steel	Flash
EDAC Inc. 623-025-361-032	15 µin	0.38 µm	-55 °C	85 °C	B DB	3	Board Edge Right Angle Through Hole	Housing/Shell (4-40)	0.197 in	5 mm	D-Sub	UL94 V-0	Signal	Polyester Thermoplastic	Black	Board Lock Grounding Indents Mounting Brackets Shielded	3 A	Solder	2	Gold	Male Pins Plug	Copper Alloy	Nickel Plated Steel
EDAC Inc. 623-025-261-032			-55 °C	85 °C	B DB	3	Board Edge Right Angle Through Hole	Housing/Shell (4-40)	0.197 in	5 mm	D-Sub	UL94 V-0	Signal	Polyester Thermoplastic	Black	Board Lock Grounding Indents Mounting Brackets Shielded	3 A	Solder	2	Gold	Male Pins Plug	Copper Alloy	Nickel Plated Steel	Flash
EDAC Inc. 623-025-361-035	15 µin	0.38 µm	-55 °C	85 °C	B DB	3	Board Edge Right Angle Through Hole	Housing/Shell (M3)	0.197 in	5 mm	D-Sub	UL94 V-0	Signal	Polyester Thermoplastic	Black	Board Lock Grounding Indents Mounting Brackets Shielded	3 A	Solder	2	Gold	Male Pins Plug	Copper Alloy	Nickel Plated Steel
EDAC Inc. 623-025-261-033			-55 °C	85 °C	B DB	3	Board Edge Right Angle Through Hole	Female Screwlock (4-40) Mating Side	0.197 in	5 mm	D-Sub	UL94 V-0	Signal	Polyester Thermoplastic	Black	Board Lock Grounding Indents Mounting Brackets Shielded	3 A	Solder	2	Gold	Male Pins Plug	Copper Alloy	Nickel Plated Steel	Flash
EDAC Inc. 623-025-261-533			-55 °C	125 °C	B DB	3	Board Edge Right Angle Through Hole	Female Screwlock (4-40) Mating Side	0.197 in	5 mm	D-Sub	UL94 V-0	Signal	Polyester Thermoplastic	Black	Board Lock Grounding Indents Mounting Brackets Shielded	3 A	Solder	2	Gold	Male Pins Plug	Copper Alloy	Nickel Plated Steel	Flash
EDAC Inc. 623-025-361-033	15 µin	0.38 µm	-55 °C	85 °C	B DB	3	Board Edge Right Angle Through Hole	Female Screwlock (4-40) Mating Side	0.197 in	5 mm	D-Sub	UL94 V-0	Signal	Polyester Thermoplastic	Black	Board Lock Grounding Indents Mounting Brackets Shielded	3 A	Solder	2	Gold	Male Pins Plug	Copper Alloy	Nickel Plated Steel
