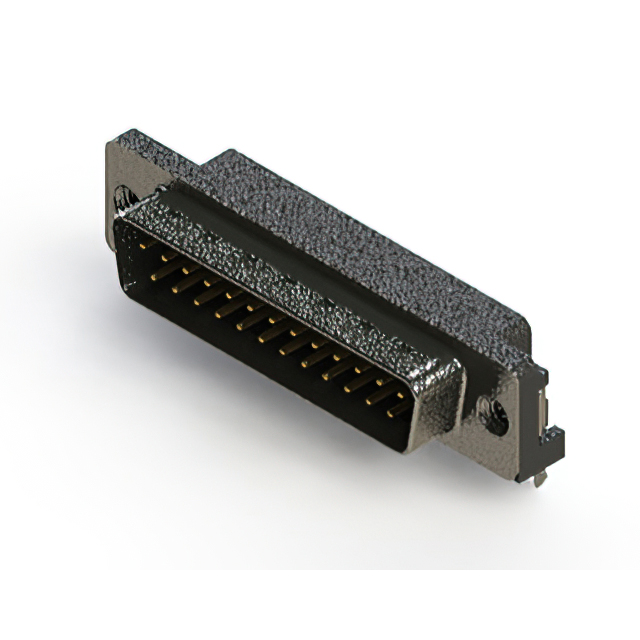

Specification	623-025-661-532

Backset Spacing	0.197 in
Color	Black
Connector Layout	DB, B
Connector Style	D-Sub
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Finish Thickness	30 µin
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Per Contact)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Mounting Brackets, Shielded, Board Lock, Grounding Indents
Finish	Nickel Plated
Flange Feature	Shell (4-40), Housing
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Through Hole, Board Edge
Number of Positions	25
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Shell Material	Steel
Shell Size	3
Termination	Solder

623-025 Series

Part	Shell Size	Connector Layout	Number of Rows	Contact Finish	Contact Finish Thickness	Material Flammability Rating	Features	Mounting Type	Shell Material	Finish	Backset Spacing	Current Rating (Per Contact)	Flange Feature	Connector Style	Termination	Contact Type	Connector Type	Number of Positions	Contact Material	Operating Temperature (Max)	Operating Temperature (Min)	Dielectric Material	Color	Contact Finish Thickness (string set options)	Contact Finish Thickness
EDAC Inc. 623-025-361-532	3	B DB	2	Gold	15 µin	UL94 V-0	Board Lock Grounding Indents Mounting Brackets Shielded	Board Edge Right Angle Through Hole	Steel	Nickel Plated	0.197 in	3 A	Housing Shell (4-40)	D-Sub	Solder	Signal	Male Pins Plug	25	Copper Alloy	125 °C	-55 °C	Polyester Thermoplastic	Black
EDAC Inc. 623-025-661-032	3	B DB	2	Gold	30 µin	UL94 V-0	Board Lock Grounding Indents Mounting Brackets Shielded	Board Edge Right Angle Through Hole	Steel	Nickel Plated	0.197 in	3 A	Housing Shell (4-40)	D-Sub	Solder	Signal	Male Pins Plug	25	Copper Alloy	85 °C	-55 °C	Polyester Thermoplastic	Black
EDAC Inc. 623-025-661-532	3	B DB	2	Gold	30 µin	UL94 V-0	Board Lock Grounding Indents Mounting Brackets Shielded	Board Edge Right Angle Through Hole	Steel	Nickel Plated	0.197 in	3 A	Housing Shell (4-40)	D-Sub	Solder	Signal	Male Pins Plug	25	Copper Alloy	125 °C	-55 °C	Polyester Thermoplastic	Black
EDAC Inc. 623-025-261-031	3	B DB	2	Gold	0	UL94 V-0	Board Lock Grounding Indents Mounting Brackets Shielded	Board Edge Right Angle Through Hole	Steel	Nickel Plated	0.197 in	3 A	Housing Shell (Unthreaded)	D-Sub	Solder	Signal	Male Pins Plug	25	Copper Alloy	85 °C	-55 °C	Polyester Thermoplastic	Black	Flash	Flash
EDAC Inc. 623-025-361-032	3	B DB	2	Gold	15 µin	UL94 V-0	Board Lock Grounding Indents Mounting Brackets Shielded	Board Edge Right Angle Through Hole	Steel	Nickel Plated	0.197 in	3 A	Housing Shell (4-40)	D-Sub	Solder	Signal	Male Pins Plug	25	Copper Alloy	85 °C	-55 °C	Polyester Thermoplastic	Black
EDAC Inc. 623-025-261-032	3	B DB	2	Gold	0	UL94 V-0	Board Lock Grounding Indents Mounting Brackets Shielded	Board Edge Right Angle Through Hole	Steel	Nickel Plated	0.197 in	3 A	Housing Shell (4-40)	D-Sub	Solder	Signal	Male Pins Plug	25	Copper Alloy	85 °C	-55 °C	Polyester Thermoplastic	Black	Flash	Flash
EDAC Inc. 623-025-361-035	3	B DB	2	Gold	15 µin	UL94 V-0	Board Lock Grounding Indents Mounting Brackets Shielded	Board Edge Right Angle Through Hole	Steel	Nickel Plated	0.197 in	3 A	Housing Shell (M3)	D-Sub	Solder	Signal	Male Pins Plug	25	Copper Alloy	85 °C	-55 °C	Polyester Thermoplastic	Black
EDAC Inc. 623-025-261-033	3	B DB	2	Gold	0	UL94 V-0	Board Lock Grounding Indents Mounting Brackets Shielded	Board Edge Right Angle Through Hole	Steel	Nickel Plated	0.197 in	3 A	Female Screwlock (4-40) Mating Side	D-Sub	Solder	Signal	Male Pins Plug	25	Copper Alloy	85 °C	-55 °C	Polyester Thermoplastic	Black	Flash	Flash
EDAC Inc. 623-025-261-533	3	B DB	2	Gold	0	UL94 V-0	Board Lock Grounding Indents Mounting Brackets Shielded	Board Edge Right Angle Through Hole	Steel	Nickel Plated	0.197 in	3 A	Female Screwlock (4-40) Mating Side	D-Sub	Solder	Signal	Male Pins Plug	25	Copper Alloy	125 °C	-55 °C	Polyester Thermoplastic	Black	Flash	Flash
EDAC Inc. 623-025-361-033	3	B DB	2	Gold	15 µin	UL94 V-0	Board Lock Grounding Indents Mounting Brackets Shielded	Board Edge Right Angle Through Hole	Steel	Nickel Plated	0.197 in	3 A	Female Screwlock (4-40) Mating Side	D-Sub	Solder	Signal	Male Pins Plug	25	Copper Alloy	85 °C	-55 °C	Polyester Thermoplastic	Black
