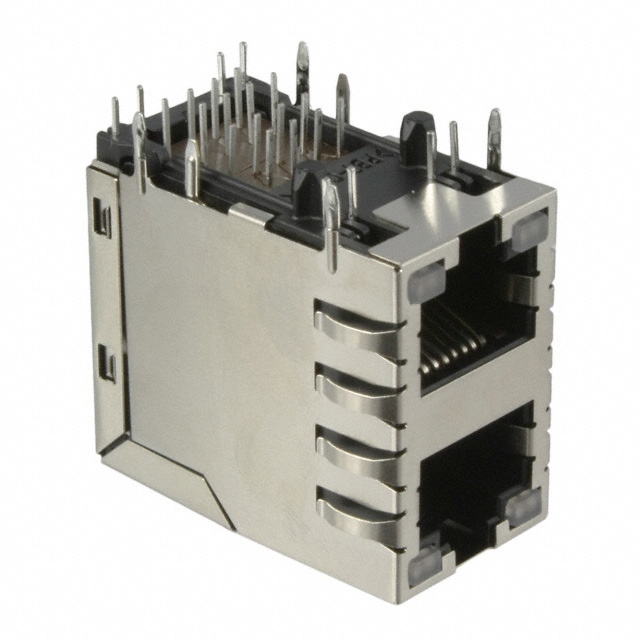

6368011-1
ActiveTE Connectivity Raychem Cable Protection
CONN RJ-45 F 16 POS 1.27MM SOLDER RA THRU-HOLE 24 TERMINAL 2 PORT CAT 5 TRAY
Deep-Dive with AI
Search across all available documentation for this part.
6368011-1
ActiveTE Connectivity Raychem Cable Protection
CONN RJ-45 F 16 POS 1.27MM SOLDER RA THRU-HOLE 24 TERMINAL 2 PORT CAT 5 TRAY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 6368011-1 |
|---|---|
| Connector Type | Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Phosphor Bronze |
| Features | Board Guide |
| Housing Material | Polyester, Polybutylene Terephthalate (PBT) |
| LED Color | Green - Green |
| Mounting Type | Through Hole |
| Number of Ports | 2 |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | 90 ° |
| Ratings | Cat5 |
| Shielding | Shielded, EMI Finger |
| Tab Direction | Up and Down |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 31.22 | |
| 10 | $ 25.77 | |||
| 25 | $ 23.95 | |||
| 90 | $ 22.63 | |||
| 270 | $ 21.97 | |||
Description
General part information
AMP-METRIMATE Series
Rack & Panel Connectors 71C1/71C1/ 13C2 F.R. ARINC 600
Documents
Technical documentation and resources
