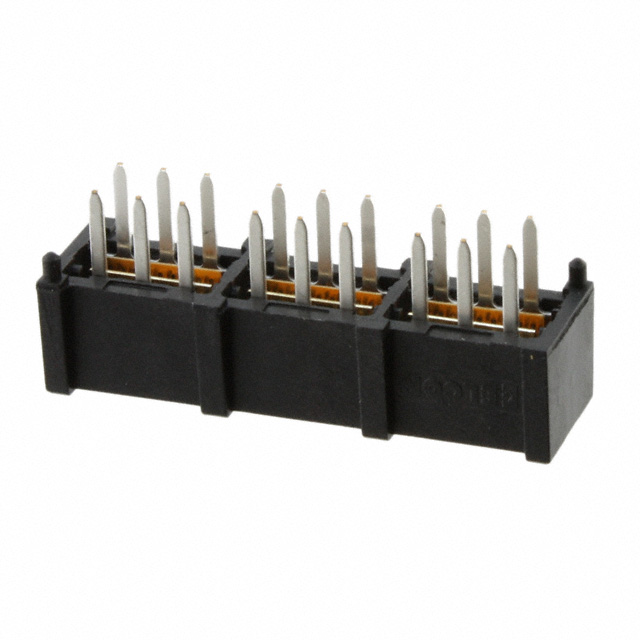

1766685-1

Active

TE Connectivity Raychem Cable Protection

CONN,SKT,LONG SLDR,MC-P3S0

Deep-Dive with AI

DocumentsDatasheet POWER_CONNECTORS_CATALOG_SEC04_VRM +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1766685-1

Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Features	Board Guide
Gender	Female
Material - Insulation	Thermoplastic, Glass Filled
Mounting Type	Through Hole
Number of Positions	6
Number of Positions/Bay/Row [custom]	1
Number of Positions/Bay/Row [custom]	1
Number of Positions/Bay/Row [custom]	1
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Read Out	Dual
Termination	Solder

AMP-METRIMATE Series

Rack & Panel Connectors 71C1/71C1/ 13C2 F.R. ARINC 600

Part	Ratings	Mounting Type	Number of Ports	Number of Positions/Contacts	Contact Finish	LED Color	Shielding	Contact Material	Termination	Orientation	Number of Rows	Housing Material	Tab Direction	Features	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Card Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Gender	Color	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Read Out	Material - Insulation
TE Connectivity Raychem Cable Protection 1-6368011-5	Cat5	Through Hole	2	8p8c (RJ45 Ethernet)	Gold	Green - Green	Shielded EMI Finger	Phosphor Bronze	Solder	90 °	2	Polybutylene Terephthalate (PBT)	Up and Down	Board Guide	Jack
TE Connectivity Raychem Cable Protection 1766685-1		Through Hole			Gold			Copper Alloy	Solder		2			Board Guide		0.76 Ám	30 Áin	Non Specified - Dual Edge	105 ░C	-55 °C	6	Female	Black	1	1	1	Dual	Thermoplastic Glass Filled
TE Connectivity Raychem Cable Protection 6368011-5	Cat5	Through Hole	2	8p8c (RJ45 Ethernet)	Gold	Yellow Green	Shielded EMI Finger	Phosphor Bronze	Solder	90 °	2	Polybutylene Terephthalate (PBT) Polyester	Up and Down	Board Guide	Jack	1.27 µm	50 µin		85 °C	-40 °C
TE Connectivity Raychem Cable Protection 6368011-3	Cat5	Through Hole	2	8p8c (RJ45 Ethernet)	Gold	Green Yellow	Shielded EMI Finger	Phosphor Bronze	Solder	90 °	2	Polybutylene Terephthalate (PBT) Polyester	Up and Down	Board Guide	Jack	1.27 µm	50 µin		85 °C	-40 °C
TE Connectivity Raychem Cable Protection 6368011-8	Cat5	Through Hole	2	8p8c (RJ45 Ethernet)	Gold	Yellow - Green	Shielded EMI Finger	Phosphor Bronze	Solder	90 °	1	Polybutylene Terephthalate (PBT)	Up and Down	Board Guide	Jack	1.27 µm	50 µin
TE Connectivity Raychem Cable Protection 2-6368011-1	Cat5	Through Hole	2	8p8c (RJ45 Ethernet)	Gold	Green Orange Orange - Green	Shielded EMI Finger	Phosphor Bronze	Solder	90 °	2	Polybutylene Terephthalate (PBT) Polyester	Up and Down	Board Guide	Jack	1.27 µm	50 µin		85 °C	-40 °C
TE Connectivity Raychem Cable Protection 6368011-1	Cat5	Through Hole	2	8p8c (RJ45 Ethernet)	Gold	Green - Green	Shielded EMI Finger	Phosphor Bronze	Solder	90 °	2	Polybutylene Terephthalate (PBT) Polyester	Up and Down	Board Guide	Jack	1.27 µm	50 µin		85 °C	-40 °C
