6368011-3 - 6368011-3

6368011-3

Active
TE Connectivity Raychem Cable Protection

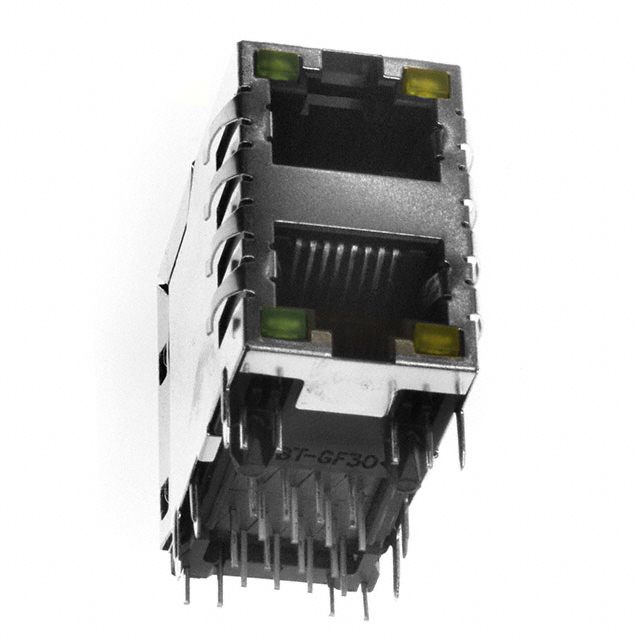

CONN RJ-45 F 16 POS 2.54MM SOLDER RA THRU-HOLE 24 TERMINAL 2 PORT CAT 5 TRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetZ-DOK and Z-DOK + Connectors+4
6368011-3 - 6368011-3

6368011-3

Active
TE Connectivity Raychem Cable Protection

CONN RJ-45 F 16 POS 2.54MM SOLDER RA THRU-HOLE 24 TERMINAL 2 PORT CAT 5 TRAY

Deep-Dive with AI

DocumentsDatasheetZ-DOK and Z-DOK + Connectors+4

Technical Specifications

Parameters and characteristics for this part

Specification6368011-3
Connector TypeJack
Contact FinishGold
Contact Finish Thickness50 µin
Contact Finish Thickness1.27 µm
Contact MaterialPhosphor Bronze
FeaturesBoard Guide
Housing MaterialPolyester, Polybutylene Terephthalate (PBT)
LED ColorYellow, Green
Mounting TypeThrough Hole
Number of Ports2
Number of Positions/Contacts8p8c (RJ45, Ethernet)
Number of Rows2
Operating Temperature [Max]85 °C
Operating Temperature [Min]-40 °C
Orientation90 °
RatingsCat5
ShieldingShielded, EMI Finger
Tab DirectionUp and Down
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
ArrowN/A 1$ 15.56
10$ 13.68
45$ 13.37
90$ 13.04
135$ 12.89
270$ 12.42
DigikeyTray 1$ 20.72
10$ 20.29
25$ 19.75
90$ 18.78
270$ 16.84

Description

General part information

AMP-METRIMATE Series

Rack & Panel Connectors 71C1/71C1/ 13C2 F.R. ARINC 600
