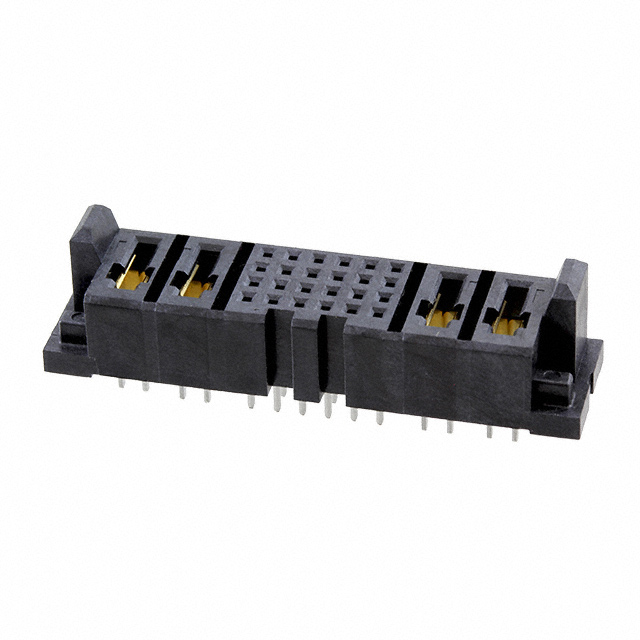

MPSC-02-24-02-7.70-01-L-V
ActiveSamtec Inc.
PCB RECEPTACLE, BOARD-TO-BOARD, 2 MM, 4 ROWS, 28 CONTACTS, THROUGH HOLE MOUNT, MPSC SERIES
Deep-Dive with AI
Search across all available documentation for this part.
MPSC-02-24-02-7.70-01-L-V
ActiveSamtec Inc.
PCB RECEPTACLE, BOARD-TO-BOARD, 2 MM, 4 ROWS, 28 CONTACTS, THROUGH HOLE MOUNT, MPSC SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MPSC-02-24-02-7.70-01-L-V |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Length - Post | 0.107 " |
| Contact Length - Post | 2.71 mm |
| Contact Material | Copper Alloy, Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Forked |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.298 in |
| Insulation Height | 7.57 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions [custom] | 24 |
| Number of Positions [custom] | 4 |
| Number of Positions Loaded | All |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Row Spacing - Mating | 0.079 in |
| Row Spacing - Mating | 2 mm |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
MPSC-02 Series
28 (24 + 4 Power) Position Receptacle Connector Through Hole Gold
