MPSC-02-80-02-7.70-03-L-V - MPSC-02-80-02-7.70-03-L-V

MPSC-02-80-02-7.70-03-L-V

Active
Samtec Inc.

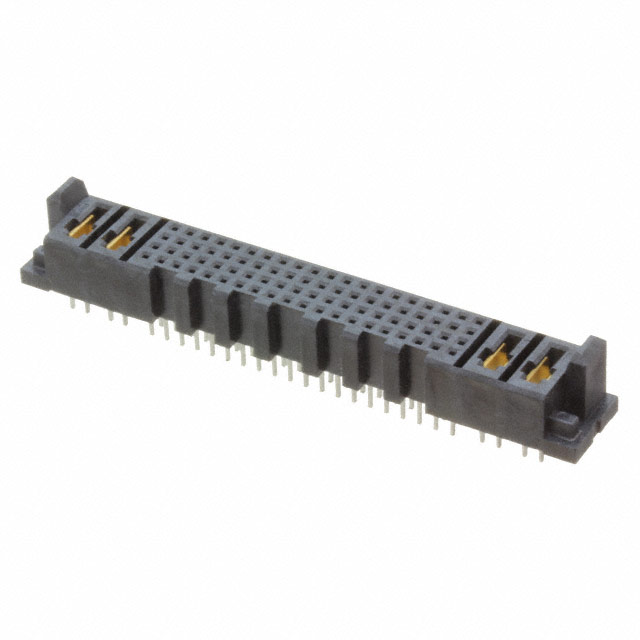

PCB RECEPTACLE, HIGH POWER SYSTEM, BOARD-TO-BOARD, 4 ROWS, 84 CONTACTS, THROUGH HOLE STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetCC46L Series Other Related Documents 03+2
MPSC-02-80-02-7.70-03-L-V - MPSC-02-80-02-7.70-03-L-V

MPSC-02-80-02-7.70-03-L-V

Active
Samtec Inc.

PCB RECEPTACLE, HIGH POWER SYSTEM, BOARD-TO-BOARD, 4 ROWS, 84 CONTACTS, THROUGH HOLE STRAIGHT

Deep-Dive with AI

DocumentsDatasheetCC46L Series Other Related Documents 03+2

Technical Specifications

Parameters and characteristics for this part

SpecificationMPSC-02-80-02-7.70-03-L-V
Connector TypeReceptacle
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thickness - Mating10 çin
Contact Finish Thickness - Mating0.25 çm
Contact Length - Post0.139 in
Contact Length - Post3.53 mm
Contact MaterialCopper Alloy, Phosphor Bronze
Contact ShapeSquare
Contact TypeForked
Fastening TypePush-Pull
Insulation ColorBlack
Insulation Height0.298 in
Insulation Height7.57 mm
Insulation MaterialLiquid Crystal Polymer (LCP)
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole
Number of Positions84, 4, 80
Number of Positions LoadedAll
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Row Spacing - Mating0.079 in
Row Spacing - Mating2 mm
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 12.56
10$ 11.61
25$ 11.06
NewarkEach 1$ 14.83
10$ 13.45
100$ 11.21
250$ 9.89
500$ 9.63
1000$ 8.97

Description

General part information

MPSC-02 Series

84 (80 + 4 Power) Position Receptacle Connector Through Hole Gold
