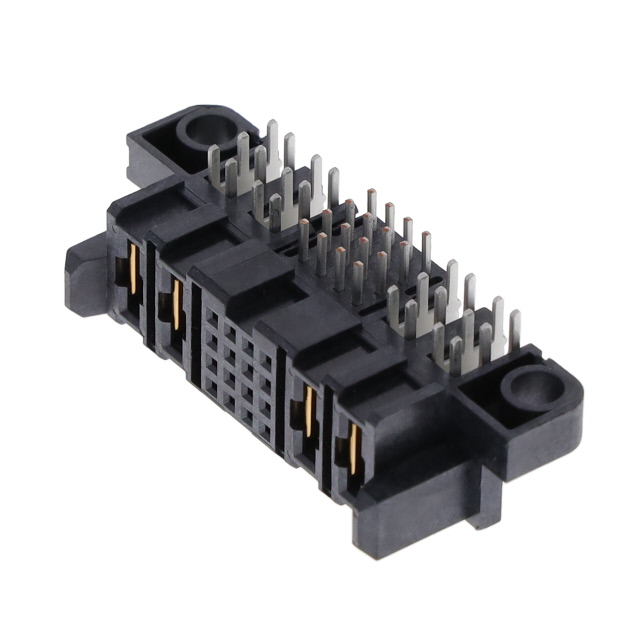

MPSC-02-16-02-01-01-L-RA-SD

Active

Samtec Inc.

5.00 MM POWERSTRIP/30 A SIGNAL/

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCC46L Series Other Related Documents 03 Datasheet +1

MPSC-02-16-02-01-01-L-RA-SD

Active

Samtec Inc.

5.00 MM POWERSTRIP/30 A SIGNAL/

Deep-Dive with AI

DocumentsCC46L Series Other Related Documents 03 Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MPSC-02-16-02-01-01-L-RA-SD

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Post	0.107 "
Contact Length - Post	2.71 mm
Contact Material	Copper Alloy, Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Fastening Type	Push-Pull
Features	Mounting Flange, Mounting Hardware
Insulation Color	Black
Insulation Height	0.4 in
Insulation Height	10.16 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions [custom]	16
Number of Positions [custom]	4
Number of Positions Loaded	All
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Termination	Solder

MPSC-02 Series

Part	Row Spacing - Mating	Row Spacing - Mating	Features	Fastening Type	Termination	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Contact Material	Contact Shape	Insulation Color	Contact Finish - Mating	Contact Type	Insulation Material	Mounting Type	Material Flammability Rating	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Number of Positions [custom]	Number of Positions [custom]	Number of Positions
Samtec Inc. MPSC-02-16-02-7.70-01-L-V-LC	0.079 in	2 mm	Board Lock Mounting Flange	Push-Pull	Solder	All	10 çin	0.25 çm	Receptacle	Copper Alloy Phosphor Bronze	Square	Black	Gold	Forked	Liquid Crystal Polymer (LCP)	Through Hole	UL94 V-0	Tin	0.107 "	2.71 mm	-55 °C	125 °C	0.298 in	7.57 mm	16	4
Samtec Inc. MPSC-02-40-02-7.70-03-L-V	0.079 in	2 mm		Push-Pull	Solder	All	10 çin	0.25 çm	Receptacle	Copper Alloy Phosphor Bronze	Square	Black	Gold	Forked	Liquid Crystal Polymer (LCP)	Through Hole	UL94 V-0	Tin	0.139 in	3.53 mm	-55 °C	125 °C	0.298 in	7.57 mm			44
Samtec Inc. MPSC-02-16-02-7.70-03-L-V-LC	0.079 in	2 mm	Board Lock Mounting Flange	Push-Pull	Solder	All	10 çin	0.25 çm	Receptacle	Copper Alloy Phosphor Bronze	Square	Black	Gold	Forked	Liquid Crystal Polymer (LCP)	Through Hole	UL94 V-0	Tin	0.139 in	3.53 mm	-55 °C	125 °C	0.298 in	7.57 mm	16	4
Samtec Inc. MPSC-02-24-02-7.70-01-L-V	0.079 in	2 mm		Push-Pull	Solder	All	10 çin	0.25 çm	Receptacle	Copper Alloy Phosphor Bronze	Square	Black	Gold	Forked	Liquid Crystal Polymer (LCP)	Through Hole	UL94 V-0	Tin	0.107 "	2.71 mm	-55 °C	125 °C	0.298 in	7.57 mm	24	4
Samtec Inc. MPSC-02-24-02-7.70-01-T-V	0.079 in	2 mm		Push-Pull	Solder	All			Receptacle	Copper Alloy Phosphor Bronze	Square	Black		Forked	Liquid Crystal Polymer (LCP)	Through Hole	UL94 V-0	Tin	0.107 "	2.71 mm	-55 °C	125 °C	0.298 in	7.57 mm	24	4
Samtec Inc. MPSC-02-80-02-7.70-03-L-V	0.079 in	2 mm		Push-Pull	Solder	All	10 çin	0.25 çm	Receptacle	Copper Alloy Phosphor Bronze	Square	Black	Gold	Forked	Liquid Crystal Polymer (LCP)	Through Hole	UL94 V-0	Tin	0.139 in	3.53 mm	-55 °C	125 °C	0.298 in	7.57 mm			4 80 84
Samtec Inc. MPSC-02-16-02-01-01-L-RA-SD	0.079 in	2 mm	Mounting Flange Mounting Hardware	Push-Pull	Solder	All	10 çin	0.25 çm	Receptacle	Copper Alloy Phosphor Bronze	Square	Black	Gold	Forked	Liquid Crystal Polymer (LCP)	Through Hole Right Angle	UL94 V-0	Tin	0.107 "	2.71 mm	-55 °C	125 °C	0.4 in	10.16 mm	16	4
