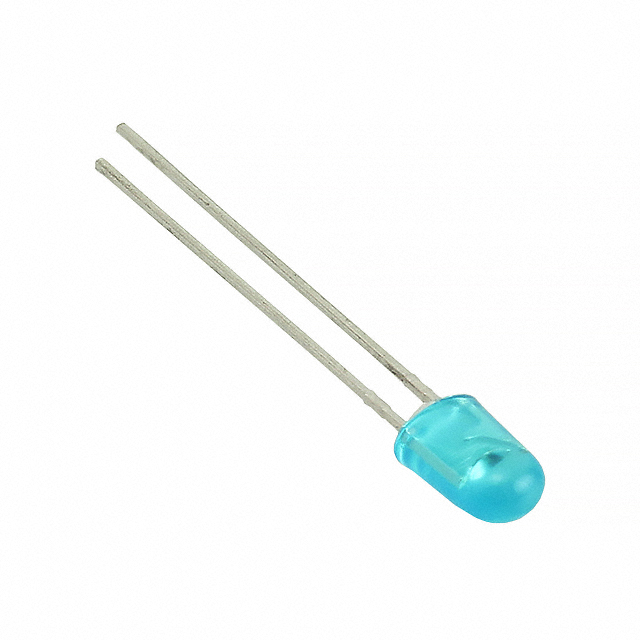

Specification	WP5603QBDL/SD/G

Color	Blue
Configuration	Standard
Current - Test	20 mA
Height (Max)	7 mm
Lens Color	Blue
Lens Length	5.2 mm
Lens Style	Oval, Domed Top
Lens Transparency	Diffused
Lens Width	3.8 mm
Millicandela Rating	1100 mcd
Mounting Type	Through Hole
Package / Case	Radial
Package Name	5mm Oval
Size / Dimension Length	5.2 mm
Size / Dimension Width	3.8 mm
Supplier Device Package Shape	Oval
Supplier Device Package Size	5 mm
Viewing Angle (Horizontal)	80 °
Viewing Angle (Vertical)	40 °
Voltage - Forward (Vf) (Typ)	3.3 V
Wavelength - Dominant	465 nm
Wavelength - Peak	461 nm

WP5603 Series

Part	Wavelength - Dominant	Mounting Type	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Viewing Angle (Horizontal)	Viewing Angle (Vertical)	Lens Color	Lens Length	Lens Width	Lens Transparency	Current - Test	Height (Max)	Size / Dimension Length	Size / Dimension Width	Color	Package / Case	Lens Style	Supplier Device Package Size	Supplier Device Package Shape	Package Name	Configuration	Millicandela Rating
Kingbright WP5603SYDLK/SD/J3	590 nm	Through Hole	590 nm	2 V	80 °	40 °	Yellow	5.2 mm	3.8 mm	Diffused	20 mA	7.25 mm	5.2 mm	3.8 mm	Yellow	Radial	Domed Top Oval	5 mm	Oval	5mm Oval	Standard	1300 mcd
Kingbright WP5603SYDL/SD/J3	590 nm	Through Hole	590 nm	2 V	80 °	40 °	Yellow	5.2 mm	3.8 mm	Diffused	20 mA	7 mm	5.2 mm	3.8 mm	Yellow	Radial	Domed Top Oval	5 mm	Oval	5mm Oval	Standard	1600 mcd
Kingbright WP5603SIDLK/SD/J3	625 nm	Through Hole	640 nm	2.2 V	80 °	40 °	Red	5.2 mm	3.8 mm	Diffused	20 mA	7.25 mm	5.2 mm	3.8 mm	Red	Radial	Domed Top Oval	5 mm	Oval	5mm Oval	Standard	2400 mcd
Kingbright WP5603SIDL/SD/J3	625 nm	Through Hole	640 nm	2.2 V	80 °	40 °	Red	5.2 mm	3.8 mm	Diffused	20 mA	7 mm	5.2 mm	3.8 mm	Red	Radial	Domed Top Oval	5 mm	Oval	5mm Oval	Standard	1400 mcd
Kingbright WP5603QBDL/SD/G	465 nm	Through Hole	461 nm	3.3 V	80 °	40 °	Blue	5.2 mm	3.8 mm	Diffused	20 mA	7 mm	5.2 mm	3.8 mm	Blue	Radial	Domed Top Oval	5 mm	Oval	5mm Oval	Standard	1100 mcd
Kingbright WP5603ZGDL/SD/G	525 nm	Through Hole	520 nm	3.2 V	80 °	40 °	Green	5.2 mm	3.8 mm	Diffused	20 mA	7 mm	5.2 mm	3.8 mm	Green	Radial	Domed Top Oval	5 mm	Oval	5mm Oval	Standard	5000 mcd
