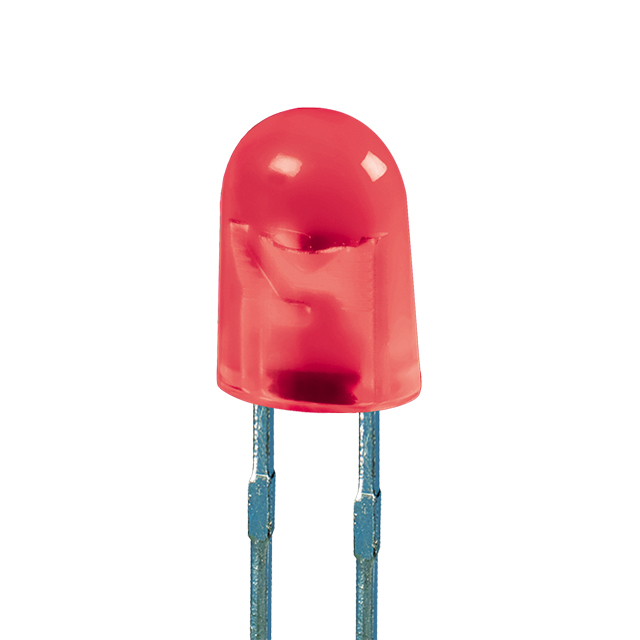

Specification	WP5603SIDLK/SD/J3

Color	Red
Configuration	Standard
Current - Test	20 mA
Height (Max)	7.25 mm
Lens Color	Red
Lens Length	5.2 mm
Lens Style	Oval, Domed Top
Lens Transparency	Diffused
Lens Width	3.8 mm
Millicandela Rating	2400 mcd
Mounting Type	Through Hole
Package / Case	Radial
Package Name	5mm Oval
Size / Dimension Length	5.2 mm
Size / Dimension Width	3.8 mm
Supplier Device Package Shape	Oval
Supplier Device Package Size	5 mm
Viewing Angle (Horizontal)	80 °
Viewing Angle (Vertical)	40 °
Voltage - Forward (Vf) (Typ)	2.2 V
Wavelength - Dominant	625 nm
Wavelength - Peak	640 nm

WP5603 Series

Part	Wavelength - Dominant	Mounting Type	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Viewing Angle (Horizontal)	Viewing Angle (Vertical)	Lens Color	Lens Length	Lens Width	Lens Transparency	Current - Test	Height (Max)	Size / Dimension Length	Size / Dimension Width	Color	Package / Case	Lens Style	Supplier Device Package Size	Supplier Device Package Shape	Package Name	Configuration	Millicandela Rating
Kingbright WP5603SYDLK/SD/J3	590 nm	Through Hole	590 nm	2 V	80 °	40 °	Yellow	5.2 mm	3.8 mm	Diffused	20 mA	7.25 mm	5.2 mm	3.8 mm	Yellow	Radial	Domed Top Oval	5 mm	Oval	5mm Oval	Standard	1300 mcd
Kingbright WP5603SYDL/SD/J3	590 nm	Through Hole	590 nm	2 V	80 °	40 °	Yellow	5.2 mm	3.8 mm	Diffused	20 mA	7 mm	5.2 mm	3.8 mm	Yellow	Radial	Domed Top Oval	5 mm	Oval	5mm Oval	Standard	1600 mcd
Kingbright WP5603SIDLK/SD/J3	625 nm	Through Hole	640 nm	2.2 V	80 °	40 °	Red	5.2 mm	3.8 mm	Diffused	20 mA	7.25 mm	5.2 mm	3.8 mm	Red	Radial	Domed Top Oval	5 mm	Oval	5mm Oval	Standard	2400 mcd
Kingbright WP5603SIDL/SD/J3	625 nm	Through Hole	640 nm	2.2 V	80 °	40 °	Red	5.2 mm	3.8 mm	Diffused	20 mA	7 mm	5.2 mm	3.8 mm	Red	Radial	Domed Top Oval	5 mm	Oval	5mm Oval	Standard	1400 mcd
Kingbright WP5603QBDL/SD/G	465 nm	Through Hole	461 nm	3.3 V	80 °	40 °	Blue	5.2 mm	3.8 mm	Diffused	20 mA	7 mm	5.2 mm	3.8 mm	Blue	Radial	Domed Top Oval	5 mm	Oval	5mm Oval	Standard	1100 mcd
Kingbright WP5603ZGDL/SD/G	525 nm	Through Hole	520 nm	3.2 V	80 °	40 °	Green	5.2 mm	3.8 mm	Diffused	20 mA	7 mm	5.2 mm	3.8 mm	Green	Radial	Domed Top Oval	5 mm	Oval	5mm Oval	Standard	5000 mcd
