WP5603SYDL/SD/J3

Active

Kingbright

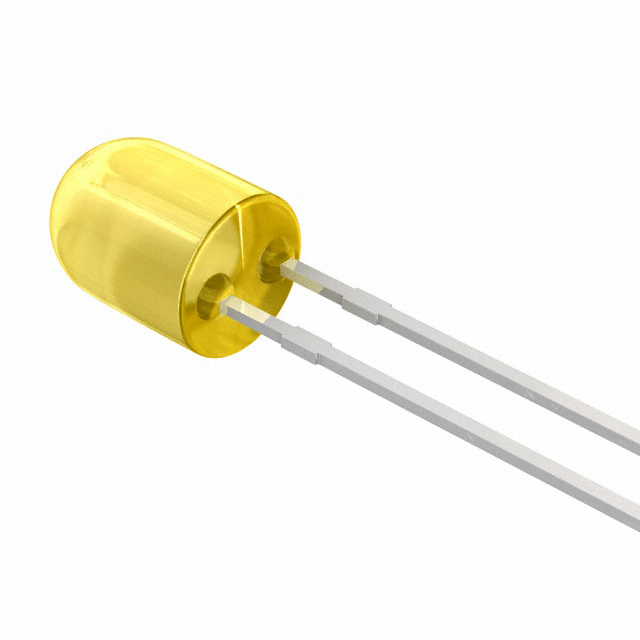

LED YELLOW DIFFUSED 5MM OVAL T/H

Search across all available documentation for this part.

Active

Kingbright

LED YELLOW DIFFUSED 5MM OVAL T/H

Technical Specifications

Parameters and characteristics for this part

Specification	WP5603SYDL/SD/J3

Color	Yellow
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max] [z]	7 mm
Lens Color	Yellow
Lens Size [x]	5.2 mm
Lens Size [y]	3.8 mm
Lens Style	Oval with Domed Top
Lens Transparency	Diffused
Millicandela Rating	1600 mcd
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension [x]	5.2 mm
Size / Dimension [y]	3.8 mm
Supplier Device Package	OVAL
Supplier Device Package [custom]	5 mm
Viewing Angle	80 °, 40 °
Voltage - Forward (Vf) (Typ)	2 V
Wavelength - Dominant	590 nm
Wavelength - Peak	590 nm

Part	Lens Style	Wavelength - Peak	Current - Test	Viewing Angle [x]	Viewing Angle [y]	Size / Dimension [x]	Size / Dimension [y]	Lens Color	Color	Configuration	Millicandela Rating	Supplier Device Package	Supplier Device Package [custom]	Package / Case	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant	Lens Size [y]	Lens Size [x]	Lens Transparency	Mounting Type	Height (Max) [Max] [z]	Viewing Angle	Wavelength - Peak [custom]
Kingbright WP5603SYDLK/SD/J3	Oval with Domed Top	590 nm	20 mA	80 °	40 °	5.2 mm	3.8 mm	Yellow	Yellow	Standard	1300 mcd	OVAL	5 mm	Radial	2 V	590 nm	3.8 mm	5.2 mm	Diffused	Through Hole
Kingbright WP5603SYDL/SD/J3	Oval with Domed Top	590 nm	20 mA			5.2 mm	3.8 mm	Yellow	Yellow	Standard	1600 mcd	OVAL	5 mm	Radial	2 V	590 nm	3.8 mm	5.2 mm	Diffused	Through Hole	7 mm	40 ° 80 °
Kingbright WP5603SIDLK/SD/J3	Oval with Domed Top		20 mA	80 °	40 °	5.2 mm	3.8 mm	Red	Red	Standard	2400 mcd	OVAL	5 mm	Radial	2.2 V	625 nm	3.8 mm	5.2 mm	Diffused	Through Hole			640 nm
Kingbright WP5603SIDL/SD/J3	Oval with Domed Top		20 mA			5.2 mm	3.8 mm	Red	Red	Standard	1400 mcd	OVAL	5 mm	Radial	2.2 V	625 nm	3.8 mm	5.2 mm	Diffused	Through Hole	7 mm	40 ° 80 °	640 nm
Kingbright WP5603QBDL/SD/G	Oval with Domed Top	461 nm	20 mA			5.2 mm	3.8 mm	Blue	Blue	Standard	1100 mcd	OVAL	5 mm	Radial	3.3 V	465 nm	3.8 mm	5.2 mm	Diffused	Through Hole	7 mm	40 ° 80 °
Kingbright WP5603ZGDL/SD/G	Oval with Domed Top	520 nm	20 mA			5.2 mm	3.8 mm	Green	Green	Standard	5000 mcd	OVAL	5 mm	Radial	3.2 V	525 nm	3.8 mm	5.2 mm	Diffused	Through Hole	7 mm	40 ° 80 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Yellow 590nm LED Indication - Discrete 2V Radial
