628-M37-622-BN2

Active

EDAC Inc.

628M SERIES VERTICAL D-SUB RECEP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

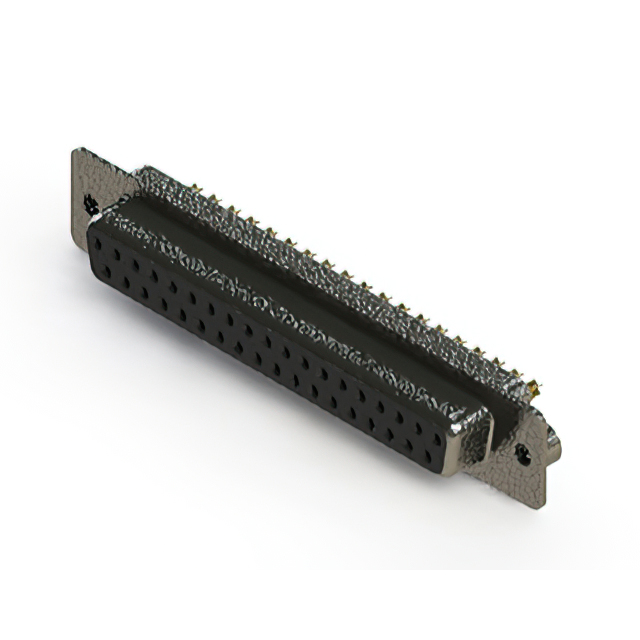

628-M37-622-BN2

Active

EDAC Inc.

628M SERIES VERTICAL D-SUB RECEP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	628-M37-622-BN2

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Features	Shielded
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	4 (DC, C)

628-M37 Series

...

Part	Connector Style	Connector Type	Number of Positions	Color	Contact Finish Thickness	Contact Finish Thickness	Shell Size, Connector Layout	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Dielectric Material	Flange Feature	Current Rating (Amps)	Shell Material, Finish	Termination	Material Flammability Rating	Features	Contact Finish	Contact Type	Number of Rows	Contact Material	Contact Finish Thickness
EDAC Inc. 628-M37-321-GN6	D-Sub	Receptacle Female Sockets	37	Green	15 µin	0.38 µm	4 (DC C)	-55 °C	125 °C	Through Hole	Polyamide (PA6T) Nylon 6T	4-40	5 A	Nickel Plated Steel	Solder	UL94 V-0	Board Lock Shielded	Gold	Signal and Power	2	Copper Alloy
EDAC Inc. 628-M37-221-BN3	D-Sub	Receptacle Female Sockets	37	Black			4 (DC C)	-55 °C	125 °C	Through Hole	Polyamide (PA6T) Nylon 6T	4-40 Board Side	5 A	Nickel Plated Steel	Solder	UL94 V-0	Shielded	Gold	Signal and Power	2	Copper Alloy	Flash
EDAC Inc. 628-M37-622-GT2	D-Sub	Receptacle Female Sockets	37	Green	30 Áin	0.76 Ám	4 (DC C)	-55 °C	125 °C	Free Hanging (In-Line)	Polyamide (PA6T) Nylon 6T	Housing/Shell (4-40)	5 A			UL94 V-0	Shielded	Gold	Signal and Power	2	Copper Alloy
EDAC Inc. 628-M37-622-BN2	D-Sub	Receptacle Female Sockets	37	Black	30 Áin	0.76 Ám	4 (DC C)	-55 °C	125 °C	Free Hanging (In-Line)	Polyamide (PA6T) Nylon 6T	Housing/Shell (4-40)	5 A	Nickel Plated Steel		UL94 V-0	Shielded	Gold	Signal and Power	2	Copper Alloy
EDAC Inc. 628-M37-623-LT1	D-Sub	Receptacle Female Sockets	37	Blue	30 Áin	0.76 Ám	4 (DC C)	-55 °C	125 °C	Through Hole	Polyamide (PA6T) Nylon 6T	Housing/Shell (Unthreaded)	5 A		Solder	UL94 V-0	Shielded	Gold	Signal and Power	2	Copper Alloy
EDAC Inc. 628-M37-621-LN3	D-Sub	Receptacle Female Sockets	37	Blue	30 Áin	0.76 Ám	4 (DC C)	-55 °C	125 °C	Through Hole	Polyamide (PA6T) Nylon 6T	4-40 Board Side	5 A	Nickel Plated Steel	Solder	UL94 V-0	Shielded	Gold	Signal and Power	2	Copper Alloy
EDAC Inc. 628-M37-221-LN3	D-Sub	Receptacle Female Sockets	37	Blue			4 (DC C)	-55 °C	125 °C	Through Hole	Polyamide (PA6T) Nylon 6T	4-40 Board Side	5 A	Nickel Plated Steel	Solder	UL94 V-0	Shielded	Gold	Signal and Power	2	Copper Alloy	Flash
EDAC Inc. 628-M37-321-GT1	D-Sub	Receptacle Female Sockets	37	Green	15 µin	0.38 µm	4 (DC C)	-55 °C	125 °C	Through Hole	Polyamide (PA6T) Nylon 6T	Housing/Shell (Unthreaded)	5 A		Solder	UL94 V-0	Shielded	Gold	Signal and Power	2	Copper Alloy
EDAC Inc. 628-M37-321-LN6	D-Sub	Receptacle Female Sockets	37	Blue	15 µin	0.38 µm	4 (DC C)	-55 °C	125 °C	Through Hole	Polyamide (PA6T) Nylon 6T	4-40	5 A	Nickel Plated Steel	Solder	UL94 V-0	Board Lock Shielded	Gold	Signal and Power	2	Copper Alloy
EDAC Inc. 628-M37-623-WN2	D-Sub	Receptacle Female Sockets	37	White	30 Áin	0.76 Ám	4 (DC C)	-55 °C	125 °C	Through Hole	Polyamide (PA6T) Nylon 6T	Housing/Shell (4-40)	5 A	Nickel Plated Steel	Solder	UL94 V-0	Shielded	Gold	Signal and Power	2	Copper Alloy

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	500	$ 24.01

Description

General part information

628-M37 Series

37 Position D-Sub Receptacle, Female Sockets Connector
