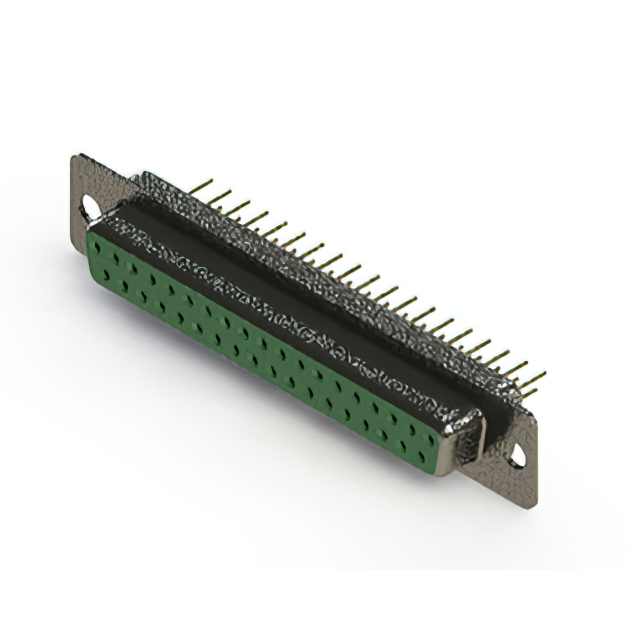

628-M37-321-GT1
ActiveEDAC Inc.
628M SERIES VERTICAL D-SUB RECEP
Deep-Dive with AI
Search across all available documentation for this part.
628-M37-321-GT1
ActiveEDAC Inc.
628M SERIES VERTICAL D-SUB RECEP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 628-M37-321-GT1 |
|---|---|
| Color | Green |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Finish Thickness | 0.38 µm |
| Contact Material | Copper Alloy |
| Contact Type | Signal and Power |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polyamide (PA6T), Nylon 6T |
| Features | Shielded |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout | 4 (DC, C) |
| Termination | Solder |
628-M37 Series
...
| Part | Connector Style | Connector Type | Number of Positions | Color | Contact Finish Thickness | Contact Finish Thickness | Shell Size, Connector Layout | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Dielectric Material | Flange Feature | Current Rating (Amps) | Shell Material, Finish | Termination | Material Flammability Rating | Features | Contact Finish | Contact Type | Number of Rows | Contact Material | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | D-Sub | Receptacle Female Sockets | 37 | Green | 15 µin | 0.38 µm | 4 (DC C) | -55 °C | 125 °C | Through Hole | Polyamide (PA6T) Nylon 6T | 4-40 | 5 A | Nickel Plated Steel | Solder | UL94 V-0 | Board Lock Shielded | Gold | Signal and Power | 2 | Copper Alloy | |
EDAC Inc. | D-Sub | Receptacle Female Sockets | 37 | Black | 4 (DC C) | -55 °C | 125 °C | Through Hole | Polyamide (PA6T) Nylon 6T | 4-40 Board Side | 5 A | Nickel Plated Steel | Solder | UL94 V-0 | Shielded | Gold | Signal and Power | 2 | Copper Alloy | Flash | ||
EDAC Inc. | D-Sub | Receptacle Female Sockets | 37 | Green | 30 Áin | 0.76 Ám | 4 (DC C) | -55 °C | 125 °C | Free Hanging (In-Line) | Polyamide (PA6T) Nylon 6T | Housing/Shell (4-40) | 5 A | UL94 V-0 | Shielded | Gold | Signal and Power | 2 | Copper Alloy | |||
EDAC Inc. | D-Sub | Receptacle Female Sockets | 37 | Black | 30 Áin | 0.76 Ám | 4 (DC C) | -55 °C | 125 °C | Free Hanging (In-Line) | Polyamide (PA6T) Nylon 6T | Housing/Shell (4-40) | 5 A | Nickel Plated Steel | UL94 V-0 | Shielded | Gold | Signal and Power | 2 | Copper Alloy | ||
EDAC Inc. | D-Sub | Receptacle Female Sockets | 37 | Blue | 30 Áin | 0.76 Ám | 4 (DC C) | -55 °C | 125 °C | Through Hole | Polyamide (PA6T) Nylon 6T | Housing/Shell (Unthreaded) | 5 A | Solder | UL94 V-0 | Shielded | Gold | Signal and Power | 2 | Copper Alloy | ||
EDAC Inc. | D-Sub | Receptacle Female Sockets | 37 | Blue | 30 Áin | 0.76 Ám | 4 (DC C) | -55 °C | 125 °C | Through Hole | Polyamide (PA6T) Nylon 6T | 4-40 Board Side | 5 A | Nickel Plated Steel | Solder | UL94 V-0 | Shielded | Gold | Signal and Power | 2 | Copper Alloy | |
EDAC Inc. | D-Sub | Receptacle Female Sockets | 37 | Blue | 4 (DC C) | -55 °C | 125 °C | Through Hole | Polyamide (PA6T) Nylon 6T | 4-40 Board Side | 5 A | Nickel Plated Steel | Solder | UL94 V-0 | Shielded | Gold | Signal and Power | 2 | Copper Alloy | Flash | ||
EDAC Inc. | D-Sub | Receptacle Female Sockets | 37 | Green | 15 µin | 0.38 µm | 4 (DC C) | -55 °C | 125 °C | Through Hole | Polyamide (PA6T) Nylon 6T | Housing/Shell (Unthreaded) | 5 A | Solder | UL94 V-0 | Shielded | Gold | Signal and Power | 2 | Copper Alloy | ||
EDAC Inc. | D-Sub | Receptacle Female Sockets | 37 | Blue | 15 µin | 0.38 µm | 4 (DC C) | -55 °C | 125 °C | Through Hole | Polyamide (PA6T) Nylon 6T | 4-40 | 5 A | Nickel Plated Steel | Solder | UL94 V-0 | Board Lock Shielded | Gold | Signal and Power | 2 | Copper Alloy | |
EDAC Inc. | D-Sub | Receptacle Female Sockets | 37 | White | 30 Áin | 0.76 Ám | 4 (DC C) | -55 °C | 125 °C | Through Hole | Polyamide (PA6T) Nylon 6T | Housing/Shell (4-40) | 5 A | Nickel Plated Steel | Solder | UL94 V-0 | Shielded | Gold | Signal and Power | 2 | Copper Alloy |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 300 | $ 14.43 | |
Description
General part information
628-M37 Series
37 Position D-Sub Receptacle, Female Sockets Connector
Documents
Technical documentation and resources
