628-M37-622-GT2

Active

EDAC Inc.

VERTICAL MACHINED D-SUB CONNECTOR ROHS COMPLIANT: YES

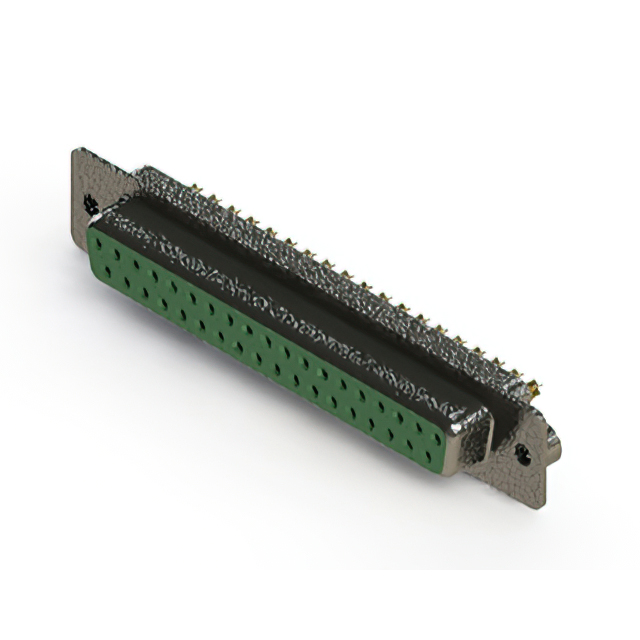

628-M37-622-GT2

Active

EDAC Inc.

VERTICAL MACHINED D-SUB CONNECTOR ROHS COMPLIANT: YES

Description Specifications Series Pricing CAD Documents

Description

General part information

628-M37 Series

37 Position D-Sub Receptacle, Female Sockets Connector

Technical Specifications

Parameters and characteristics for this part

Specification	628-M37-622-GT2

Color	Green
Connector Layout	DC, C
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	30 µin
Contact Form	Machined
Contact Material	Copper Alloy
Contact Type	Signal, Power
Current Rating (Per Contact)	5 A
Dielectric Material	Nylon 6T, Polyamide (PA6T)
Features	Shielded
Finish	Tin Plated
Flange Feature	Shell (4-40), Housing
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	37 pos
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Shell Material	Steel
Shell Size	4
Termination	Solder Cup

628-M37 Series

...

Part	Contact Finish Thickness	Contact Finish	Features	Termination	Shell Material	Finish	Mounting Type	Connector Type	Number of Positions	Current Rating (Per Contact)	Flange Feature	Shell Size	Connector Layout	Number of Rows	Contact Type	Connector Style	Material Flammability Rating	Dielectric Material	Color	Contact Form	Operating Temperature (Max)	Operating Temperature (Min)	Contact Material	Contact Finish Thickness (string set options)	Contact Finish Thickness
EDAC Inc. 628-M37-321-GN6	15 µin	Gold	Board Lock Shielded	Solder	Steel	Nickel Plated	Through Hole	Female Sockets Receptacle	37 pos	5 A	Mating Side (4-40)	4	C DC	2	Power Signal	D-Sub	UL94 V-0	Nylon 6T Polyamide (PA6T)	Green	Machined	125 °C	-55 °C	Copper Alloy
EDAC Inc. 628-M37-221-BN3	0	Gold	Shielded	Solder	Steel	Nickel Plated	Through Hole	Female Sockets Receptacle	37 pos	5 A	Board Side (4-40)	4	C DC	2	Power Signal	D-Sub	UL94 V-0	Nylon 6T Polyamide (PA6T)	Black	Machined	125 °C	-55 °C	Copper Alloy	Flash	Flash
EDAC Inc. 628-M37-622-GT2	30 µin	Gold	Shielded	Solder Cup	Steel	Tin Plated	Free Hanging (In-Line)	Female Sockets Receptacle	37 pos	5 A	Housing Shell (4-40)	4	C DC	2	Power Signal	D-Sub	UL94 V-0	Nylon 6T Polyamide (PA6T)	Green	Machined	125 °C	-55 °C	Copper Alloy
