T2M-125-01-L-D-SM

Active

Samtec Inc.

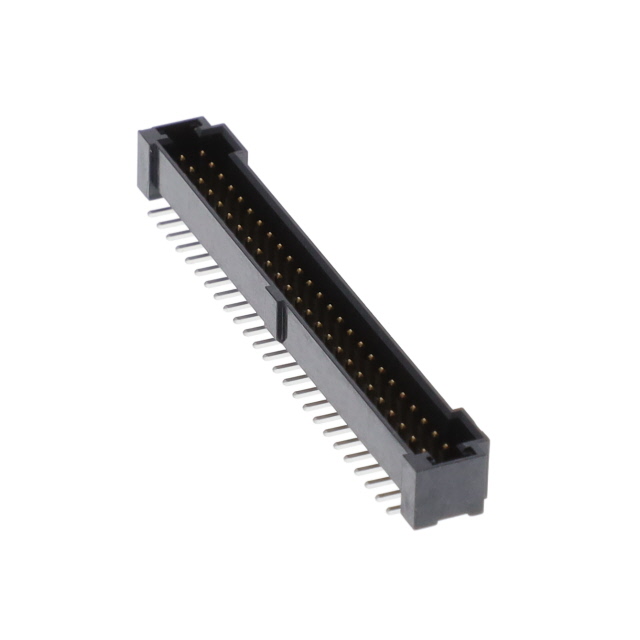

CONN HEADER SMD 50POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHigh Reliability Tiger Eye™ Discrete Wire Header, 2.00 mm Pitch T2M Datasheet +2

T2M-125-01-L-D-SM

Active

Samtec Inc.

CONN HEADER SMD 50POS 2MM

Deep-Dive with AI

DocumentsHigh Reliability Tiger Eye™ Discrete Wire Header, 2.00 mm Pitch T2M Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T2M-125-01-L-D-SM

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.8 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	5.8 mm
Insulation Height	0.228 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

T2M-125 Series

Part	Style	Mounting Type	Pitch - Mating [x]	Pitch - Mating [x]	Termination	Features	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Contact Finish - Mating	Number of Rows	Number of Positions Loaded	Fastening Type	Contact Type	Insulation Color	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Contact Shape	Connector Type	Insulation Height	Insulation Height	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Insulation Height [z]	Insulation Height [z]
Samtec Inc. T2M-125-01-L-D-SM-K-TR	Board to Board Cable	Surface Mount	0.079 in	2 mm	Solder	Pick and Place	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	Phosphor Bronze	-55 °C	125 °C	Shrouded - 4 Wall	Gold	2	All	Push-Pull	Male Pin	Black	Tin	0.079 in	2 mm	50	Square	Header	5.8 mm	0.228 in	3.8 A
Samtec Inc. T2M-125-01-L-D-SM	Board to Board Cable	Surface Mount	0.079 in	2 mm	Solder		Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	Phosphor Bronze	-55 °C	125 °C	Shrouded - 4 Wall	Gold	2	All	Push-Pull	Male Pin	Black	Tin	0.079 in	2 mm	50	Square	Header	5.8 mm	0.228 in	3.8 A
Samtec Inc. T2M-125-01-L-D-SM-DS	Board to Board Cable	Surface Mount	0.079 in	2 mm	Solder	Mating Flange	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	Phosphor Bronze	-55 °C	125 °C	Shrouded - 4 Wall	Gold	2	All	Push-Pull	Male Pin	Black	Tin	0.079 in	2 mm	50	Square	Header	5.8 mm	0.228 in	3.8 A
Samtec Inc. T2M-125-01-L-D-TH-WT	Board to Board Cable	Through Hole	0.079 in	2 mm	Solder	Solder Retention	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	Phosphor Bronze	-55 °C	125 °C	Shrouded - 4 Wall	Gold	2	All	Push-Pull	Male Pin	Black	Tin	0.079 in	2 mm	50	Square	Header	5.8 mm	0.228 in	3.8 A	0.117 in	2.97 mm	0.302 in	7.67 mm
Samtec Inc. T2M-125-01-S-D-SM-DS	Board to Board Cable	Surface Mount	0.079 in	2 mm	Solder	Mating Flange	Liquid Crystal Polymer (LCP)	30 Áin	0.76 Ám	Phosphor Bronze	-55 °C	125 °C	Shrouded - 4 Wall	Gold	2	All	Push-Pull	Male Pin	Black	Tin	0.079 in	2 mm	50	Square	Header	5.8 mm	0.228 in	3.8 A
Samtec Inc. T2M-125-01-S-D-SM-DS-TR	Board to Board Cable	Surface Mount	0.079 in	2 mm	Solder	Mating Flange	Liquid Crystal Polymer (LCP)	30 Áin	0.76 Ám	Phosphor Bronze	-55 °C	125 °C	Shrouded - 4 Wall	Gold	2	All	Push-Pull	Male Pin	Black	Tin	0.079 in	2 mm	50	Square	Header	5.8 mm	0.228 in	3.8 A
Samtec Inc. T2M-125-01-L-D-RA	Board to Board Cable	Through Hole Right Angle	0.079 in	2 mm	Solder		Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	Phosphor Bronze	-55 °C	125 °C	Shrouded - 4 Wall	Gold	2	All	Push-Pull	Male Pin	Black	Tin	0.079 in	2 mm	50	Square	Header			3.8 A	0.09 "	2.29 mm			7.44 mm	0.293 in
Samtec Inc. T2M-125-01-S-D-SM-WT	Board to Board Cable	Surface Mount	0.079 in	2 mm	Solder	Solder Retention	Liquid Crystal Polymer (LCP)	30 Áin	0.76 Ám	Phosphor Bronze	-55 °C	125 °C	Shrouded - 4 Wall	Gold	2	All	Push-Pull	Male Pin	Black	Tin	0.079 in	2 mm	50	Square	Header	5.8 mm	0.228 in	3.8 A
Samtec Inc. T2M-125-01-S-D-SM-WT-K	Board to Board Cable	Surface Mount	0.079 in	2 mm	Solder	Pick and Place Solder Retention	Liquid Crystal Polymer (LCP)	30 Áin	0.76 Ám	Phosphor Bronze	-55 °C	125 °C	Shrouded - 4 Wall	Gold	2	All	Push-Pull	Male Pin	Black	Tin	0.079 in	2 mm	50	Square	Header	5.8 mm	0.228 in	3.8 A
Samtec Inc. T2M-125-01-L-D-SM-DS-K	Board to Board Cable	Surface Mount	0.079 in	2 mm	Solder	Mating Flange Pick and Place	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	Phosphor Bronze	-55 °C	125 °C	Shrouded - 4 Wall	Gold	2	All	Push-Pull	Male Pin	Black	Tin	0.079 in	2 mm	50	Square	Header	5.8 mm	0.228 in	3.8 A
