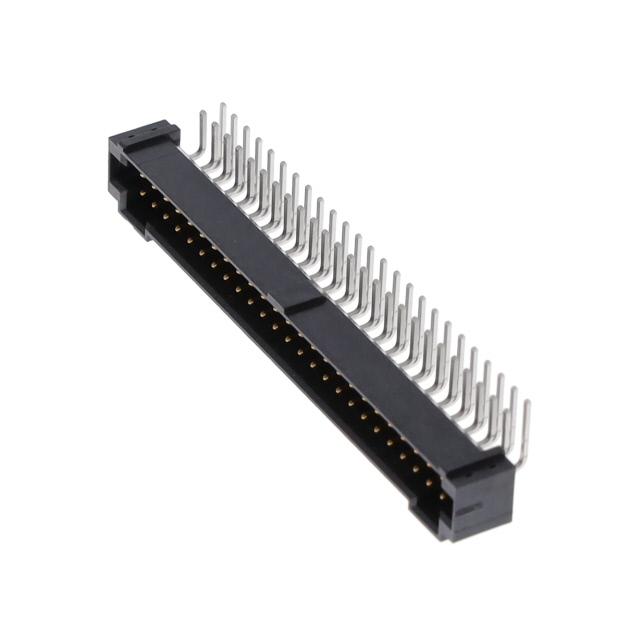

T2M-125-01-L-D-RA - T2M-125-01-L-D-RA

T2M-125-01-L-D-RA

Active
Samtec Inc.

CONN HEADER R/A 50POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetHigh Reliability Tiger Eye™ Discrete Wire Header, 2.00 mm Pitch+2
T2M-125-01-L-D-RA - T2M-125-01-L-D-RA

T2M-125-01-L-D-RA

Active
Samtec Inc.

CONN HEADER R/A 50POS 2MM

Deep-Dive with AI

DocumentsDatasheetHigh Reliability Tiger Eye™ Discrete Wire Header, 2.00 mm Pitch+2

Technical Specifications

Parameters and characteristics for this part

SpecificationT2M-125-01-L-D-RA
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thickness - Mating10 çin
Contact Finish Thickness - Mating0.25 çm
Contact Length - Post0.09 "
Contact Length - Post2.29 mm
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeMale Pin
Current Rating (Amps)3.8 A
Fastening TypePush-Pull
Insulation ColorBlack
Insulation Height [z]7.44 mm
Insulation Height [z]0.293 in
Insulation MaterialLiquid Crystal Polymer (LCP)
Mounting TypeThrough Hole, Right Angle
Number of Positions50
Number of Positions LoadedAll
Number of Rows2
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Pitch - Mating [x]0.079 in
Pitch - Mating [x]2 mm
Row Spacing - Mating0.079 in
Row Spacing - Mating2 mm
ShroudingShrouded - 4 Wall
StyleBoard to Board, Cable
TerminationSolder

T2M-125 Series

PartStyleMounting TypePitch - Mating [x]Pitch - Mating [x]TerminationFeaturesInsulation MaterialContact Finish Thickness - MatingContact Finish Thickness - MatingContact MaterialOperating Temperature [Min]Operating Temperature [Max]ShroudingContact Finish - MatingNumber of RowsNumber of Positions LoadedFastening TypeContact TypeInsulation ColorContact Finish - PostRow Spacing - MatingRow Spacing - MatingNumber of PositionsContact ShapeConnector TypeInsulation HeightInsulation HeightCurrent Rating (Amps)Contact Length - PostContact Length - PostOverall Contact LengthOverall Contact LengthInsulation Height [z]Insulation Height [z]
Samtec Inc.
T2M-125-01-L-D-SM-K-TR
Board to Board
Cable
Surface Mount
0.079 in
2 mm
Solder
Pick and Place
Liquid Crystal Polymer (LCP)
10 çin
0.25 çm
Phosphor Bronze
-55 °C
125 °C
Shrouded - 4 Wall
Gold
2
All
Push-Pull
Male Pin
Black
Tin
0.079 in
2 mm
50
Square
Header
5.8 mm
0.228 in
3.8 A
Samtec Inc.
T2M-125-01-L-D-SM
Board to Board
Cable
Surface Mount
0.079 in
2 mm
Solder
Liquid Crystal Polymer (LCP)
10 çin
0.25 çm
Phosphor Bronze
-55 °C
125 °C
Shrouded - 4 Wall
Gold
2
All
Push-Pull
Male Pin
Black
Tin
0.079 in
2 mm
50
Square
Header
5.8 mm
0.228 in
3.8 A
Samtec Inc.
T2M-125-01-L-D-SM-DS
Board to Board
Cable
Surface Mount
0.079 in
2 mm
Solder
Mating Flange
Liquid Crystal Polymer (LCP)
10 çin
0.25 çm
Phosphor Bronze
-55 °C
125 °C
Shrouded - 4 Wall
Gold
2
All
Push-Pull
Male Pin
Black
Tin
0.079 in
2 mm
50
Square
Header
5.8 mm
0.228 in
3.8 A
Samtec Inc.
T2M-125-01-L-D-TH-WT
Board to Board
Cable
Through Hole
0.079 in
2 mm
Solder
Solder Retention
Liquid Crystal Polymer (LCP)
10 çin
0.25 çm
Phosphor Bronze
-55 °C
125 °C
Shrouded - 4 Wall
Gold
2
All
Push-Pull
Male Pin
Black
Tin
0.079 in
2 mm
50
Square
Header
5.8 mm
0.228 in
3.8 A
0.117 in
2.97 mm
0.302 in
7.67 mm
Samtec Inc.
T2M-125-01-S-D-SM-DS
Board to Board
Cable
Surface Mount
0.079 in
2 mm
Solder
Mating Flange
Liquid Crystal Polymer (LCP)
30 Áin
0.76 Ám
Phosphor Bronze
-55 °C
125 °C
Shrouded - 4 Wall
Gold
2
All
Push-Pull
Male Pin
Black
Tin
0.079 in
2 mm
50
Square
Header
5.8 mm
0.228 in
3.8 A
Samtec Inc.
T2M-125-01-S-D-SM-DS-TR
Board to Board
Cable
Surface Mount
0.079 in
2 mm
Solder
Mating Flange
Liquid Crystal Polymer (LCP)
30 Áin
0.76 Ám
Phosphor Bronze
-55 °C
125 °C
Shrouded - 4 Wall
Gold
2
All
Push-Pull
Male Pin
Black
Tin
0.079 in
2 mm
50
Square
Header
5.8 mm
0.228 in
3.8 A
Samtec Inc.
T2M-125-01-L-D-RA
Board to Board
Cable
Through Hole
Right Angle
0.079 in
2 mm
Solder
Liquid Crystal Polymer (LCP)
10 çin
0.25 çm
Phosphor Bronze
-55 °C
125 °C
Shrouded - 4 Wall
Gold
2
All
Push-Pull
Male Pin
Black
Tin
0.079 in
2 mm
50
Square
Header
3.8 A
0.09 "
2.29 mm
7.44 mm
0.293 in
Samtec Inc.
T2M-125-01-S-D-SM-WT
Board to Board
Cable
Surface Mount
0.079 in
2 mm
Solder
Solder Retention
Liquid Crystal Polymer (LCP)
30 Áin
0.76 Ám
Phosphor Bronze
-55 °C
125 °C
Shrouded - 4 Wall
Gold
2
All
Push-Pull
Male Pin
Black
Tin
0.079 in
2 mm
50
Square
Header
5.8 mm
0.228 in
3.8 A
Samtec Inc.
T2M-125-01-S-D-SM-WT-K
Board to Board
Cable
Surface Mount
0.079 in
2 mm
Solder
Pick and Place
Solder Retention
Liquid Crystal Polymer (LCP)
30 Áin
0.76 Ám
Phosphor Bronze
-55 °C
125 °C
Shrouded - 4 Wall
Gold
2
All
Push-Pull
Male Pin
Black
Tin
0.079 in
2 mm
50
Square
Header
5.8 mm
0.228 in
3.8 A
Samtec Inc.
T2M-125-01-L-D-SM-DS-K
Board to Board
Cable
Surface Mount
0.079 in
2 mm
Solder
Mating Flange
Pick and Place
Liquid Crystal Polymer (LCP)
10 çin
0.25 çm
Phosphor Bronze
-55 °C
125 °C
Shrouded - 4 Wall
Gold
2
All
Push-Pull
Male Pin
Black
Tin
0.079 in
2 mm
50
Square
Header
5.8 mm
0.228 in
3.8 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1$ 11.32
10$ 10.47
25$ 9.89
50$ 9.54
100$ 8.89

Description

General part information

T2M-125 Series

Connector Header Through Hole, Right Angle 50 position 0.079" (2.00mm)
