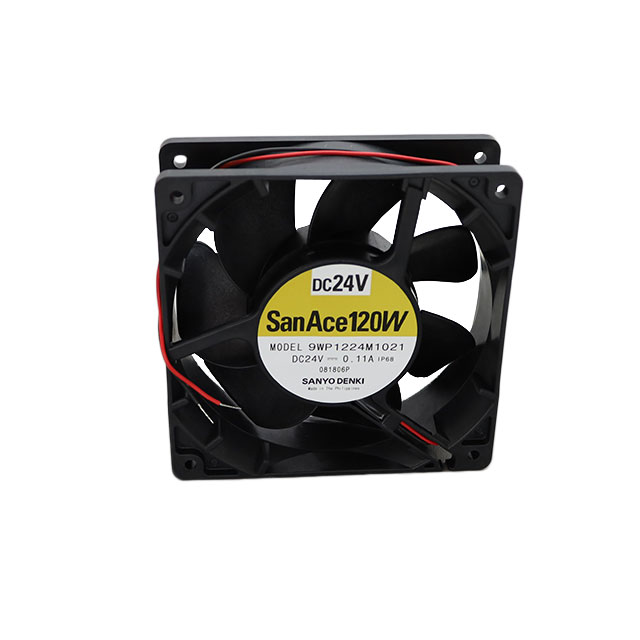

9WP1224M1021

Active

Sanyo Denki America Inc.

FAN AXIAL 120X38MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRotor Balancing Numbering System Splash Proof Fan

9WP1224M1021

Active

Sanyo Denki America Inc.

FAN AXIAL 120X38MM 24VDC WIRE

Deep-Dive with AI

DocumentsRotor Balancing Numbering System Splash Proof Fan

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	9WP1224M1021	9WP1224 Series

Air Flow	-	99 CFM
Air Flow	-	2.77 mł/min
Approval Agency	-	CSA, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	-	0.22 A
Fan Type	Tubeaxial	Tubeaxial
Features	-	Locked Rotor Sensor, Speed Sensor (Tach), Locked Rotor Protection
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof, IP55 - Dust Protected, Water Resistant
Lifetime @ Temp.	-	40000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	-	39 dB(A)
Operating Temperature	-	-20 - -10 °C
Operating Temperature	-	70 °C
Operating Temperature	-	-20 - -10 C
Operating Temperature	-	70 °C
Operating Temperature	-	70 °C
Power (Watts)	2.64 W	2.64 - 5.28 W
RPM	-	2600 RPM
Size / Dimension [x]	120 mm	120 mm
Size / Dimension [y]	120 mm	120 mm
Static Pressure	-	70.5 Pa
Static Pressure	-	0.283 in H2O
Termination	2 Wire Leads	3 Wire Leads, 2 Wire Leads
Voltage - Rated	24 VDC	24 VDC
Voltage Range	-	27.6 VDC
Voltage Range	-	14 VDC
Weight	-	360.15 g
Weight	-	0.794 lb
Width [y]	38 mm	38 mm

9WP1224 Series

FAN AXIAL 120X38MM 24VDC WIRE

Part	Static Pressure	Static Pressure	Air Flow	Air Flow	Features	Power (Watts)	Noise	Approval Agency	Bearing Type	Size / Dimension [y]	Size / Dimension [x]	RPM	Weight [custom]	Weight [custom]	Material - Frame	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Fan Type	Lifetime @ Temp.	Current Rating (Amps)	Termination	Width [y]	Voltage - Rated	Ingress Protection	Operating Temperature [Max]
Sanyo Denki America Inc. 9WP1224H1D01	70.5 Pa	0.283 in H2O	99 CFM	2.77 mł/min	Locked Rotor Sensor	5.28 W	39 dB(A)	CSA, TUV, UL	Ball	120 mm	120 mm	2600 RPM	360.15 g	0.794 lb	Plastic	-20 °C	70 °C	-20 C	70 °C	Plastic	27.6 VDC	14 VDC	Tubeaxial	40000 Hrs	0.22 A	3 Wire Leads	38 mm	24 VDC	IP68 - Dust Tight, Waterproof
Sanyo Denki America Inc. 9WP1224H102	70.5 Pa	0.283 in H2O	99 CFM	2.77 mł/min		5.28 W	39 dB(A)	CSA, TUV, UL	Ball	120 mm	120 mm	2600 RPM	360.15 g	0.794 lb	Plastic	-10 °C		-10 °C	70 °C	Plastic	27.6 VDC	14 VDC	Tubeaxial	40000 Hrs	0.22 A	2 Wire Leads	38 mm	24 VDC	IP55 - Dust Protected, Water Resistant	70 °C
Sanyo Denki America Inc. 9WP1224M101					Locked Rotor Protection, Speed Sensor (Tach)	2.64 W			Ball	120 mm	120 mm				Plastic					Plastic			Tubeaxial			3 Wire Leads	38 mm	24 VDC	IP68 - Dust Tight, Waterproof
Sanyo Denki America Inc. 9WP1224M1021						2.64 W			Ball	120 mm	120 mm				Plastic					Plastic			Tubeaxial			2 Wire Leads	38 mm	24 VDC	IP68 - Dust Tight, Waterproof
Sanyo Denki America Inc. 9WP1224M102						2.64 W			Ball	120 mm	120 mm				Plastic					Plastic			Tubeaxial			2 Wire Leads	38 mm	24 VDC	IP68 - Dust Tight, Waterproof
Sanyo Denki America Inc. 9WP1224H1011	70.5 Pa	0.283 in H2O			Speed Sensor (Tach)	5.28 W	39 dB(A)	CSA, TUV, UL	Ball	120 mm	120 mm	2600 RPM	360.15 g	0.794 lb	Plastic	-20 °C	70 °C	-20 C	70 °C	Plastic	27.6 VDC	14 VDC	Tubeaxial	40000 Hrs	0.22 A	3 Wire Leads	38 mm	24 VDC	IP68 - Dust Tight, Waterproof

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 73.04
		21	$ 55.16
		42	$ 54.26
