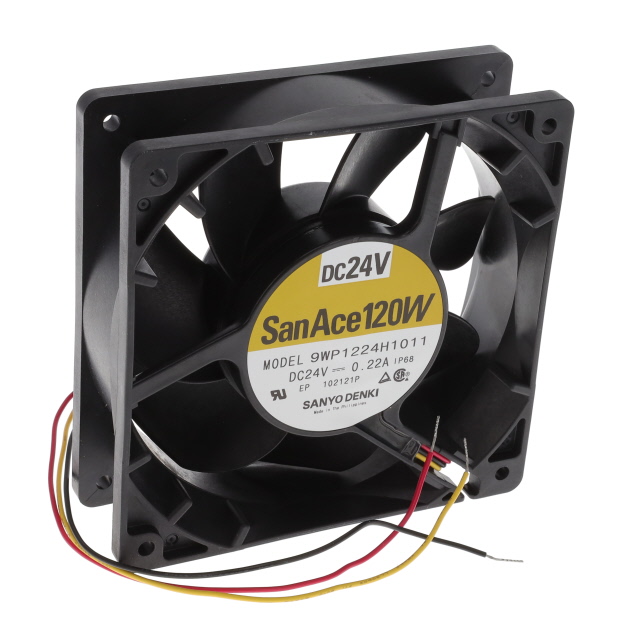

9WP1224H1011

Active

Sanyo Denki America Inc.

FAN AXIAL 120X38MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsNumbering System Splash Proof Fan Rotor Balancing +1

9WP1224H1011

Active

Sanyo Denki America Inc.

FAN AXIAL 120X38MM 24VDC WIRE

Deep-Dive with AI

DocumentsNumbering System Splash Proof Fan Rotor Balancing +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	9WP1224H1011	9WP1224 Series

Air Flow	-	99 CFM
Air Flow	-	2.77 mł/min
Approval Agency	CSA, TUV, UL	CSA, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	0.22 A	0.22 A
Fan Type	Tubeaxial	Tubeaxial
Features	Speed Sensor (Tach)	Locked Rotor Sensor, Speed Sensor (Tach), Locked Rotor Protection
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof, IP55 - Dust Protected, Water Resistant
Lifetime @ Temp.	40000 Hrs	40000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	39 dB(A)	39 dB(A)
Operating Temperature	-	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 °C	-20 - -10 °C
Operating Temperature [Min]	-20 C	-20 - -10 C
Power (Watts)	5.28 W	2.64 - 5.28 W
RPM	2600 RPM	2600 RPM
Size / Dimension [x]	120 mm	120 mm
Size / Dimension [y]	120 mm	120 mm
Static Pressure	70.5 Pa	70.5 Pa
Static Pressure	0.283 in H2O	0.283 in H2O
Termination	3 Wire Leads	3 Wire Leads, 2 Wire Leads
Voltage - Rated	24 VDC	24 VDC
Voltage Range [Max]	27.6 VDC	27.6 VDC
Voltage Range [Min]	14 VDC	14 VDC
Weight [custom]	360.15 g	360.15 g
Weight [custom]	0.794 lb	0.794 lb
Width [y]	38 mm	38 mm

9WP1224 Series

FAN AXIAL 120X38MM 24VDC WIRE

Part	Static Pressure	Static Pressure	Air Flow	Air Flow	Features	Power (Watts)	Noise	Approval Agency	Bearing Type	Size / Dimension [y]	Size / Dimension [x]	RPM	Weight [custom]	Weight [custom]	Material - Frame	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Fan Type	Lifetime @ Temp.	Current Rating (Amps)	Termination	Width [y]	Voltage - Rated	Ingress Protection	Operating Temperature [Max]
Sanyo Denki America Inc. 9WP1224H1D01	70.5 Pa	0.283 in H2O	99 CFM	2.77 mł/min	Locked Rotor Sensor	5.28 W	39 dB(A)	CSA, TUV, UL	Ball	120 mm	120 mm	2600 RPM	360.15 g	0.794 lb	Plastic	-20 °C	70 °C	-20 C	70 °C	Plastic	27.6 VDC	14 VDC	Tubeaxial	40000 Hrs	0.22 A	3 Wire Leads	38 mm	24 VDC	IP68 - Dust Tight, Waterproof
Sanyo Denki America Inc. 9WP1224H102	70.5 Pa	0.283 in H2O	99 CFM	2.77 mł/min		5.28 W	39 dB(A)	CSA, TUV, UL	Ball	120 mm	120 mm	2600 RPM	360.15 g	0.794 lb	Plastic	-10 °C		-10 °C	70 °C	Plastic	27.6 VDC	14 VDC	Tubeaxial	40000 Hrs	0.22 A	2 Wire Leads	38 mm	24 VDC	IP55 - Dust Protected, Water Resistant	70 °C
Sanyo Denki America Inc. 9WP1224M101					Locked Rotor Protection, Speed Sensor (Tach)	2.64 W			Ball	120 mm	120 mm				Plastic					Plastic			Tubeaxial			3 Wire Leads	38 mm	24 VDC	IP68 - Dust Tight, Waterproof
Sanyo Denki America Inc. 9WP1224M1021						2.64 W			Ball	120 mm	120 mm				Plastic					Plastic			Tubeaxial			2 Wire Leads	38 mm	24 VDC	IP68 - Dust Tight, Waterproof
Sanyo Denki America Inc. 9WP1224M102						2.64 W			Ball	120 mm	120 mm				Plastic					Plastic			Tubeaxial			2 Wire Leads	38 mm	24 VDC	IP68 - Dust Tight, Waterproof
Sanyo Denki America Inc. 9WP1224H1011	70.5 Pa	0.283 in H2O			Speed Sensor (Tach)	5.28 W	39 dB(A)	CSA, TUV, UL	Ball	120 mm	120 mm	2600 RPM	360.15 g	0.794 lb	Plastic	-20 °C	70 °C	-20 C	70 °C	Plastic	27.6 VDC	14 VDC	Tubeaxial	40000 Hrs	0.22 A	3 Wire Leads	38 mm	24 VDC	IP68 - Dust Tight, Waterproof

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 36.04
		10	$ 32.13
		25	$ 31.49

Description

General part information

9WP1224 Series

Fan Tubeaxial 24VDC Square - 120mm L x 120mm H Ball 99.0 CFM (2.77m³/min) 3 Wire Leads
