9WP1224M102

Active

Sanyo Denki America Inc.

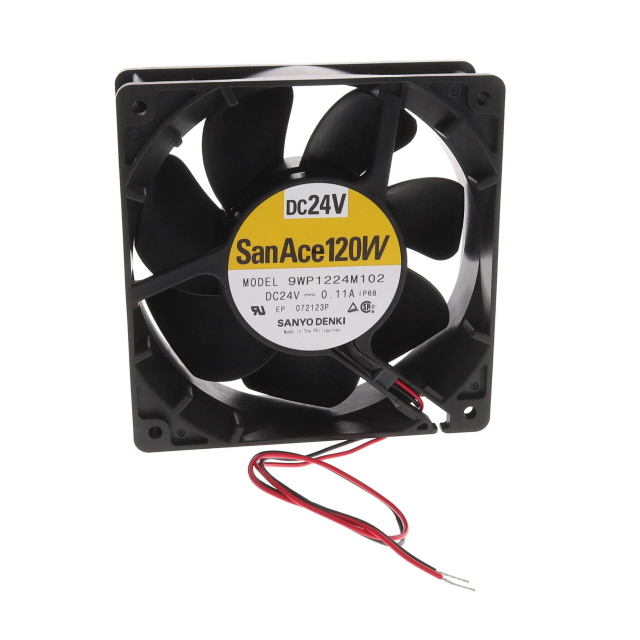

FAN AXIAL 120X38MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRotor Balancing Handling Instructions for Fan Motors +1

9WP1224M102

Active

Sanyo Denki America Inc.

FAN AXIAL 120X38MM 24VDC WIRE

Deep-Dive with AI

DocumentsRotor Balancing Handling Instructions for Fan Motors +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 46.19
		21	$ 42.19
		42	$ 40.59
		63	$ 37.92
		105	$ 34.98
		252	$ 34.44

Description

General part information

9WP1224 Series

Fan Tubeaxial 24VDC Square - 120mm L x 120mm H Ball 2 Wire Leads

Documents

Technical documentation and resources

Specification	9WP1224M102	9WP1224 Series

Air Flow	-	99 CFM
Air Flow	-	2.77 mł/min
Approval Agency	-	CSA, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	-	0.22 A
Fan Type	Tubeaxial	Tubeaxial
Features	-	Locked Rotor Sensor, Speed Sensor (Tach), Locked Rotor Protection
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof, IP55 - Dust Protected, Water Resistant
Lifetime @ Temp.	-	40000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	-	39 dB(A)
Operating Temperature	-	-20 - -10 °C
Operating Temperature	-	70 °C
Operating Temperature	-	-20 - -10 C
Operating Temperature	-	70 °C
Operating Temperature	-	70 °C
Power (Watts)	2.64 W	2.64 - 5.28 W
RPM	-	2600 RPM
Size / Dimension [x]	120 mm	120 mm
Size / Dimension [y]	120 mm	120 mm
Static Pressure	-	70.5 Pa
Static Pressure	-	0.283 in H2O
Termination	2 Wire Leads	3 Wire Leads, 2 Wire Leads
Voltage - Rated	24 VDC	24 VDC
Voltage Range	-	27.6 VDC
Voltage Range	-	14 VDC
Weight	-	360.15 g
Weight	-	0.794 lb
Width [y]	38 mm	38 mm

Part	Static Pressure	Static Pressure	Air Flow	Air Flow	Features	Power (Watts)	Noise	Approval Agency	Bearing Type	Size / Dimension [y]	Size / Dimension [x]	RPM	Weight [custom]	Weight [custom]	Material - Frame	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Fan Type	Lifetime @ Temp.	Current Rating (Amps)	Termination	Width [y]	Voltage - Rated	Ingress Protection	Operating Temperature [Max]
Sanyo Denki America Inc. 9WP1224H1D01	70.5 Pa	0.283 in H2O	99 CFM	2.77 mł/min	Locked Rotor Sensor	5.28 W	39 dB(A)	CSA, TUV, UL	Ball	120 mm	120 mm	2600 RPM	360.15 g	0.794 lb	Plastic	-20 °C	70 °C	-20 C	70 °C	Plastic	27.6 VDC	14 VDC	Tubeaxial	40000 Hrs	0.22 A	3 Wire Leads	38 mm	24 VDC	IP68 - Dust Tight, Waterproof
Sanyo Denki America Inc. 9WP1224H102	70.5 Pa	0.283 in H2O	99 CFM	2.77 mł/min		5.28 W	39 dB(A)	CSA, TUV, UL	Ball	120 mm	120 mm	2600 RPM	360.15 g	0.794 lb	Plastic	-10 °C		-10 °C	70 °C	Plastic	27.6 VDC	14 VDC	Tubeaxial	40000 Hrs	0.22 A	2 Wire Leads	38 mm	24 VDC	IP55 - Dust Protected, Water Resistant	70 °C
Sanyo Denki America Inc. 9WP1224M101					Locked Rotor Protection, Speed Sensor (Tach)	2.64 W			Ball	120 mm	120 mm				Plastic					Plastic			Tubeaxial			3 Wire Leads	38 mm	24 VDC	IP68 - Dust Tight, Waterproof
Sanyo Denki America Inc. 9WP1224M1021						2.64 W			Ball	120 mm	120 mm				Plastic					Plastic			Tubeaxial			2 Wire Leads	38 mm	24 VDC	IP68 - Dust Tight, Waterproof
Sanyo Denki America Inc. 9WP1224M102						2.64 W			Ball	120 mm	120 mm				Plastic					Plastic			Tubeaxial			2 Wire Leads	38 mm	24 VDC	IP68 - Dust Tight, Waterproof
Sanyo Denki America Inc. 9WP1224H1011	70.5 Pa	0.283 in H2O			Speed Sensor (Tach)	5.28 W	39 dB(A)	CSA, TUV, UL	Ball	120 mm	120 mm	2600 RPM	360.15 g	0.794 lb	Plastic	-20 °C	70 °C	-20 C	70 °C	Plastic	27.6 VDC	14 VDC	Tubeaxial	40000 Hrs	0.22 A	3 Wire Leads	38 mm	24 VDC	IP68 - Dust Tight, Waterproof
