628-9W4-224-3NA
ActiveEDAC Inc.

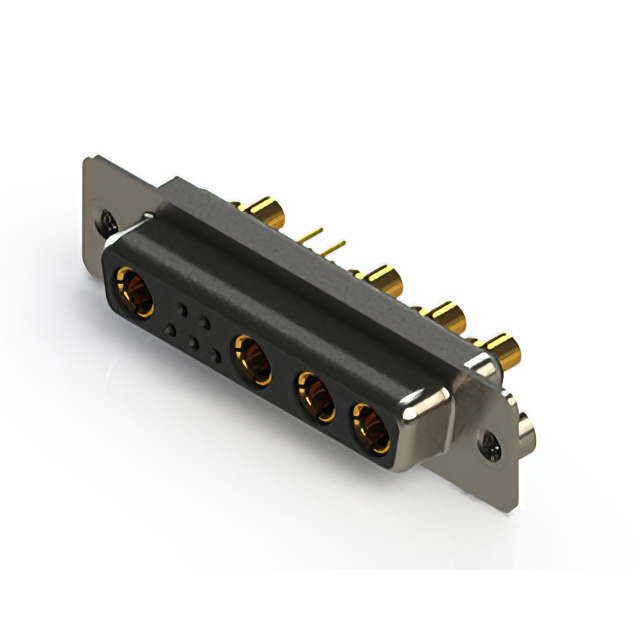

COMBINATION LAYOUT D SUB CONNECTOR, 628C SERIES, DB-9W4, RECEPTACLE, 9 CONTACTS
Deep-Dive with AI
Search across all available documentation for this part.
628-9W4-224-3NA
ActiveEDAC Inc.
COMBINATION LAYOUT D SUB CONNECTOR, 628C SERIES, DB-9W4, RECEPTACLE, 9 CONTACTS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 628-9W4-224-3NA |
|---|---|
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal and Power |
| Current Rating (Amps) | 30 A, 5 A |
| Dielectric Material | Polyester Thermoplastic |
| Features | Shielded |
| Flange Feature | Board Side (M3) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 9 |
| Number of Positions [custom] | 4 |
| Number of Positions [custom] | 5 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 3 (DB, B) - 9W4 |
| Termination | Solder |
| Voltage Rating | 125 VDC |
628-9W4 Series
...
| Part | Mounting Type | Voltage Rating | Number of Rows | Material Flammability Rating | Contact Finish | Connector Style | Connector Type | Contact Material | Dielectric Material | Shell Size, Connector Layout | Color | Features | Contact Finish Thickness | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Termination | Flange Feature | Number of Positions [custom] | Number of Positions [custom] | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness | Shell Material, Finish | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Through Hole | 125 VDC | 2 | UL94 V-0 | Gold | Combo D-Sub | Receptacle Female Sockets | Copper Alloy | Polyester Thermoplastic | 3 (DB B) - 9W4 | Black | Shielded | Flash | Coax Signal | -55 °C | 125 °C | 4 5 | Solder | Housing/Shell (Unthreaded) | |||||||
EDAC Inc. | Free Hanging (In-Line) | 125 VDC | 2 | UL94 V-0 | Gold | Combo D-Sub | Receptacle Female Sockets | Copper Alloy | Polyester Thermoplastic | 3 (DB B) - 9W4 | Black | Shielded | Flash | Coax Signal | -55 °C | 125 °C | 4 5 | Housing/Shell (Unthreaded) | ||||||||
EDAC Inc. | Through Hole | 125 VDC | 2 | UL94 V-0 | Gold | Combo D-Sub | Receptacle Female Sockets | Copper Alloy | Polyester Thermoplastic | 3 (DB B) - 9W4 | Black | Shielded | Flash | Coax Signal | -55 °C | 125 °C | 4 5 | Solder | Board Side (M3) | |||||||
EDAC Inc. | Through Hole | 125 VDC | 2 | UL94 V-0 | Gold | Combo D-Sub | Receptacle Female Sockets | Copper Alloy | Polyester Thermoplastic | 3 (DB B) - 9W4 | Black | Shielded | Flash | Coax Signal | -55 °C | 125 °C | 4 5 | Solder | Board Side (M3) | |||||||
EDAC Inc. | Through Hole | 125 VDC | 2 | UL94 V-0 | Gold | Combo D-Sub | Receptacle Female Sockets | Copper Alloy | Polyester Thermoplastic | 3 (DB B) - 9W4 | Black | Board Lock Shielded | Signal and Power | -55 °C | 125 °C | 9 | Solder | Board Side (M3) | 4 | 5 | 5 A 20 A | 0.76 Ám | 30 Áin | Nickel Plated Steel | ||
EDAC Inc. | Free Hanging (In-Line) | 125 VDC | 2 | UL94 V-0 | Gold | Combo D-Sub | Receptacle Female Sockets | Copper Alloy | Polyester Thermoplastic | 3 (DB B) - 9W4 | Black | Shielded | Flash | Signal and Power | -55 °C | 125 °C | 9 | Housing/Shell (Unthreaded) | 4 | 5 | 5 A 20 A | |||||
EDAC Inc. | Through Hole | 125 VDC | 2 | UL94 V-0 | Gold | Combo D-Sub | Receptacle Female Sockets | Copper Alloy | Polyester Thermoplastic | 3 (DB B) - 9W4 | Black | Board Lock Shielded | Flash | Coax Signal | -55 °C | 125 °C | 4 5 | Solder | 4-40 Board Side | |||||||
EDAC Inc. | Through Hole | 125 VDC | 2 | UL94 V-0 | Gold | Combo D-Sub | Receptacle Female Sockets | Copper Alloy | Polyester Thermoplastic | 3 (DB B) - 9W4 | Black | Shielded | Flash | Signal and Power | -55 °C | 125 °C | 9 | Solder | 4-40 | 4 | 5 | 10A 5A | ||||
EDAC Inc. | Free Hanging (In-Line) | 125 VDC | 2 | UL94 V-0 | Gold | Combo D-Sub | Receptacle Female Sockets | Copper Alloy | Polyester Thermoplastic | 3 (DB B) - 9W4 | Black | Shielded | Signal and Power | -55 °C | 125 °C | 9 | Housing/Shell (Unthreaded) | 4 | 5 | 0.76 Ám | 30 Áin | Nickel Plated Steel | 10A 5A | |||
EDAC Inc. | Through Hole | 125 VDC | 2 | UL94 V-0 | Gold | Combo D-Sub | Receptacle Female Sockets | Copper Alloy | Polyester Thermoplastic | 3 (DB B) - 9W4 | Black | Shielded | Flash | Signal and Power | -55 °C | 125 °C | 9 | Solder | Board Side (M3) | 4 | 5 | 5 A 30 A | Nickel Plated Steel |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
628-9W4 Series
9 (5 + 4 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
