628-9W4-222-2T1

Active

EDAC Inc.

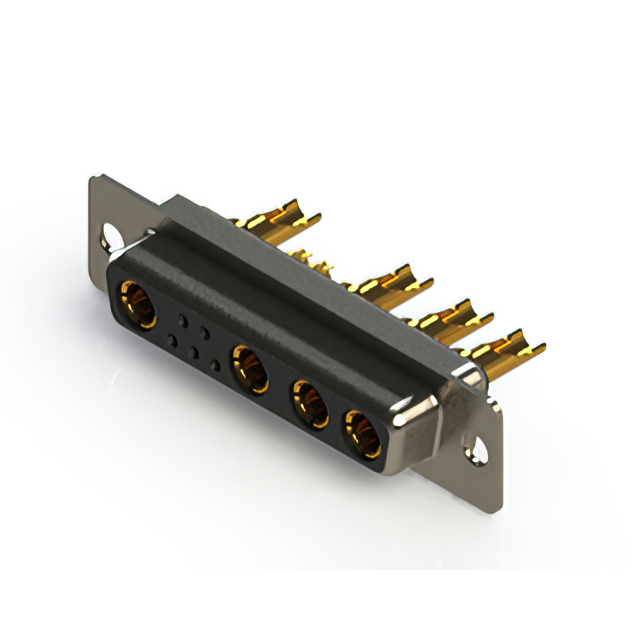

CONN D-SUB RCPT 9POS SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

628-9W4-222-2T1

Active

EDAC Inc.

CONN D-SUB RCPT 9POS SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	628-9W4-222-2T1

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5 A, 20 A
Dielectric Material	Polyester Thermoplastic
Features	Shielded
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	9
Number of Positions [custom]	4
Number of Positions [custom]	5
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	3 (DB, B) - 9W4
Voltage Rating	125 VDC

628-9W4 Series

...

Part	Mounting Type	Voltage Rating	Number of Rows	Material Flammability Rating	Contact Finish	Connector Style	Connector Type	Contact Material	Dielectric Material	Shell Size, Connector Layout	Color	Features	Contact Finish Thickness	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Termination	Flange Feature	Number of Positions [custom]	Number of Positions [custom]	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Shell Material, Finish	Current Rating (Amps)
EDAC Inc. 628-9W4-224-7T1	Through Hole	125 VDC	2	UL94 V-0	Gold	Combo D-Sub	Receptacle Female Sockets	Copper Alloy	Polyester Thermoplastic	3 (DB B) - 9W4	Black	Shielded	Flash	Coax Signal	-55 °C	125 °C	4 5	Solder	Housing/Shell (Unthreaded)
EDAC Inc. 628-9W4-222-5T1	Free Hanging (In-Line)	125 VDC	2	UL94 V-0	Gold	Combo D-Sub	Receptacle Female Sockets	Copper Alloy	Polyester Thermoplastic	3 (DB B) - 9W4	Black	Shielded	Flash	Coax Signal	-55 °C	125 °C	4 5		Housing/Shell (Unthreaded)
EDAC Inc. 628-9W4-224-5TB	Through Hole	125 VDC	2	UL94 V-0	Gold	Combo D-Sub	Receptacle Female Sockets	Copper Alloy	Polyester Thermoplastic	3 (DB B) - 9W4	Black	Shielded	Flash	Coax Signal	-55 °C	125 °C	4 5	Solder	Board Side (M3)
EDAC Inc. 628-9W4-224-5TA	Through Hole	125 VDC	2	UL94 V-0	Gold	Combo D-Sub	Receptacle Female Sockets	Copper Alloy	Polyester Thermoplastic	3 (DB B) - 9W4	Black	Shielded	Flash	Coax Signal	-55 °C	125 °C	4 5	Solder	Board Side (M3)
EDAC Inc. 628-9W4-624-2ND	Through Hole	125 VDC	2	UL94 V-0	Gold	Combo D-Sub	Receptacle Female Sockets	Copper Alloy	Polyester Thermoplastic	3 (DB B) - 9W4	Black	Board Lock Shielded		Signal and Power	-55 °C	125 °C	9	Solder	Board Side (M3)	4	5	5 A 20 A	0.76 Ám	30 Áin	Nickel Plated Steel
EDAC Inc. 628-9W4-222-2T1	Free Hanging (In-Line)	125 VDC	2	UL94 V-0	Gold	Combo D-Sub	Receptacle Female Sockets	Copper Alloy	Polyester Thermoplastic	3 (DB B) - 9W4	Black	Shielded	Flash	Signal and Power	-55 °C	125 °C	9		Housing/Shell (Unthreaded)	4	5	5 A 20 A
EDAC Inc. 628-9W4-224-7T5	Through Hole	125 VDC	2	UL94 V-0	Gold	Combo D-Sub	Receptacle Female Sockets	Copper Alloy	Polyester Thermoplastic	3 (DB B) - 9W4	Black	Board Lock Shielded	Flash	Coax Signal	-55 °C	125 °C	4 5	Solder	4-40 Board Side
EDAC Inc. 628-9W4-224-1T4	Through Hole	125 VDC	2	UL94 V-0	Gold	Combo D-Sub	Receptacle Female Sockets	Copper Alloy	Polyester Thermoplastic	3 (DB B) - 9W4	Black	Shielded	Flash	Signal and Power	-55 °C	125 °C	9	Solder	4-40	4	5					10A 5A
EDAC Inc. 628-9W4-622-1N1	Free Hanging (In-Line)	125 VDC	2	UL94 V-0	Gold	Combo D-Sub	Receptacle Female Sockets	Copper Alloy	Polyester Thermoplastic	3 (DB B) - 9W4	Black	Shielded		Signal and Power	-55 °C	125 °C	9		Housing/Shell (Unthreaded)	4	5		0.76 Ám	30 Áin	Nickel Plated Steel	10A 5A
EDAC Inc. 628-9W4-224-3NA	Through Hole	125 VDC	2	UL94 V-0	Gold	Combo D-Sub	Receptacle Female Sockets	Copper Alloy	Polyester Thermoplastic	3 (DB B) - 9W4	Black	Shielded	Flash	Signal and Power	-55 °C	125 °C	9	Solder	Board Side (M3)	4	5	5 A 30 A			Nickel Plated Steel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 8.76

Description

General part information

628-9W4 Series

9 (5 + 4 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
