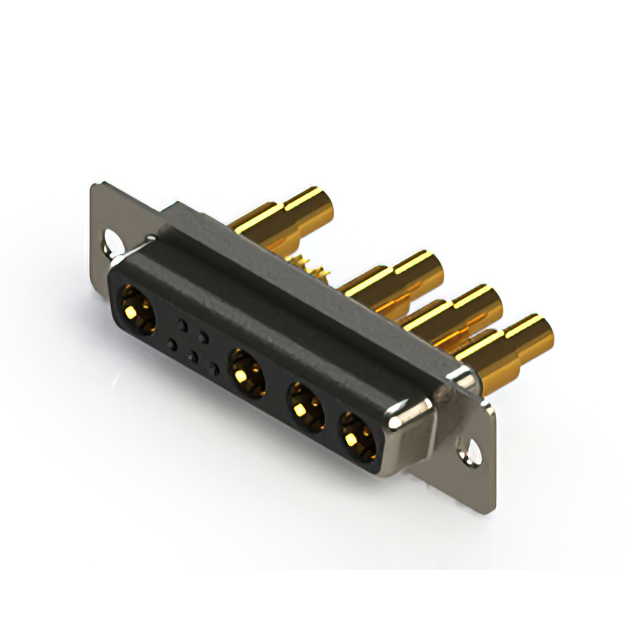

628-9W4-222-5T1

Active

EDAC Inc.

CONN D-SUB RCPT 9POS SLDR CUP

628-9W4-222-5T1

Active

EDAC Inc.

CONN D-SUB RCPT 9POS SLDR CUP

Description Specifications Series Pricing CAD Documents

Description

General part information

628-9W4 Series

9 (5 + 4 Coax) Position D-Sub, Combo Receptacle, Female Sockets Connector

Technical Specifications

Parameters and characteristics for this part

Specification	628-9W4-222-5T1

Color	Black
Connector Layout	DB, B
Connector Style	Combo, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Material	Copper Alloy
Contact Type	Signal, Coax
Dielectric Material	Polyester Thermoplastic
Features	Shielded
Finish	Tin Plated
Flange Feature	Shell (Unthreaded), Housing
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions (Special)	4
Number of Positions (Standard)	5
Number of Positions (Total)	9
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Part Code	9W4
Position Types	Coax
Shell Material	Steel
Shell Size	3
Termination	Solder Cup
Voltage Rating	125 V

628-9W4 Series

...

Part	Number of Positions (Standard)	Position Types	Number of Positions (Special)	Number of Positions (Total)	Termination	Finish	Shell Material	Mounting Type	Number of Rows	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Connector Style	Connector Type	Contact Finish	Features	Flange Feature	Shell Size	Connector Layout	Part Code	Contact Type	Material Flammability Rating	Contact Material	Voltage Rating	Operating Temperature (Max)	Operating Temperature (Min)	Dielectric Material	Color	Current Rating Options	Number of Positions (Power)	Number of Positions (Normal)
EDAC Inc. 628-9W4-224-7T1	5	Coax	4	9	Solder	Tin Plated	Steel	Through Hole	2	0	Flash	Flash	Combo D-Sub	Female Sockets Receptacle	Gold	Shielded	Housing Shell (Unthreaded)	3	B DB	9W4	Coax Signal	UL94 V-0	Copper Alloy	125 V	125 °C	-55 °C	Polyester Thermoplastic	Black
EDAC Inc. 628-9W4-222-5T1	5	Coax	4	9	Solder Cup	Tin Plated	Steel	Free Hanging (In-Line)	2	0	Flash	Flash	Combo D-Sub	Female Sockets Receptacle	Gold	Shielded	Housing Shell (Unthreaded)	3	B DB	9W4	Coax Signal	UL94 V-0	Copper Alloy	125 V	125 °C	-55 °C	Polyester Thermoplastic	Black
EDAC Inc. 628-9W4-224-5TB	5	Coax	4	9	Solder	Tin Plated	Steel	Through Hole	2	0	Flash	Flash	Combo D-Sub	Female Sockets Receptacle	Gold	Shielded	Board Side (M3)	3	B DB	9W4	Coax Signal	UL94 V-0	Copper Alloy	125 V	125 °C	-55 °C	Polyester Thermoplastic	Black
EDAC Inc. 628-9W4-224-5TA	5	Coax	4	9	Solder	Tin Plated	Steel	Through Hole	2	0	Flash	Flash	Combo D-Sub	Female Sockets Receptacle	Gold	Shielded	Board Side (M3)	3	B DB	9W4	Coax Signal	UL94 V-0	Copper Alloy	125 V	125 °C	-55 °C	Polyester Thermoplastic	Black
EDAC Inc. 628-9W4-624-2ND				9	Solder	Nickel Plated	Steel	Through Hole	2	30 µin			Combo D-Sub	Female Sockets Receptacle	Gold	Board Lock Shielded	Board Side (M3)	3	B DB	9W4	Power Signal	UL94 V-0	Copper Alloy	125 V	125 °C	-55 °C	Polyester Thermoplastic	Black	20A 5A	4	5
EDAC Inc. 628-9W4-222-2T1				9	Solder Cup	Tin Plated	Steel	Free Hanging (In-Line)	2	0	Flash	Flash	Combo D-Sub	Female Sockets Receptacle	Gold	Shielded	Housing Shell (Unthreaded)	3	B DB	9W4	Power Signal	UL94 V-0	Copper Alloy	125 V	125 °C	-55 °C	Polyester Thermoplastic	Black	20A 5A	4	5
EDAC Inc. 628-9W4-224-7T5	5	Coax	4	9	Solder	Tin Plated	Steel	Through Hole	2	0	Flash	Flash	Combo D-Sub	Female Sockets Receptacle	Gold	Board Lock Shielded	Board Side (4-40)	3	B DB	9W4	Coax Signal	UL94 V-0	Copper Alloy	125 V	125 °C	-55 °C	Polyester Thermoplastic	Black
EDAC Inc. 628-9W4-224-1T4				9	Solder	Tin Plated	Steel	Through Hole	2	0	Flash	Flash	Combo D-Sub	Female Sockets Receptacle	Gold	Shielded	Board Side (4-40) Mating Side (4-40)	3	B DB	9W4	Power Signal	UL94 V-0	Copper Alloy	125 V	125 °C	-55 °C	Polyester Thermoplastic	Black	10A 5A	4	5
EDAC Inc. 628-9W4-622-1N1				9	Solder Cup	Nickel Plated	Steel	Free Hanging (In-Line)	2	30 µin			Combo D-Sub	Female Sockets Receptacle	Gold	Shielded	Housing Shell (Unthreaded)	3	B DB	9W4	Power Signal	UL94 V-0	Copper Alloy	125 V	125 °C	-55 °C	Polyester Thermoplastic	Black	10A 5A	4	5
EDAC Inc. 628-9W4-224-3NA				9	Solder	Nickel Plated	Steel	Through Hole	2	0	Flash	Flash	Combo D-Sub	Female Sockets Receptacle	Gold	Shielded	Board Side (M3)	3	B DB	9W4	Power Signal	UL94 V-0	Copper Alloy	125 V	125 °C	-55 °C	Polyester Thermoplastic	Black	30A 5A	4	5

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

628-9W4-222-5T1 | Datasheet
