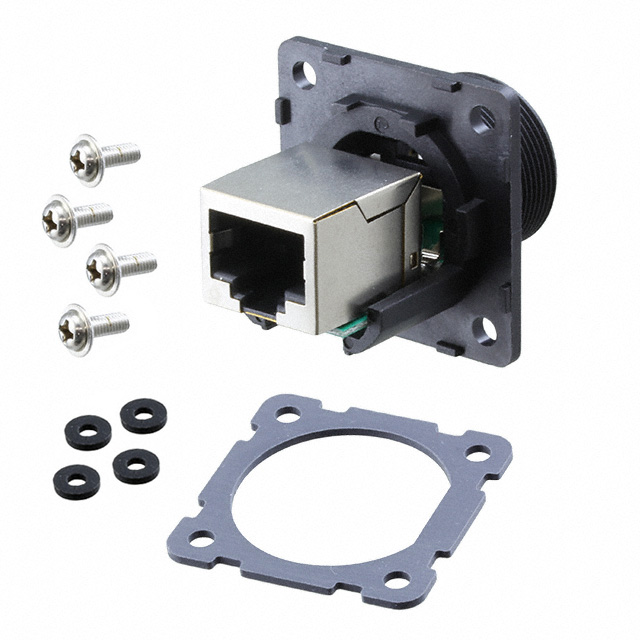

RCP-5SPFFH-SSM7001

Active

Amphenol LTW

RJ, MIDDLE SIZE, PLASTIC, 1.5A, CAT 5E, SQUARE, SCREW THREAD, JACK 180 (HORIZONTAL), RECEPTACLE, IP67 MATED ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RCP-5SPFFH-SSM7001

Active

Amphenol LTW

RJ, MIDDLE SIZE, PLASTIC, 1.5A, CAT 5E, SQUARE, SCREW THREAD, JACK 180 (HORIZONTAL), RECEPTACLE, IP67 MATED ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RCP-5SPFFH-SSM7001

Contact Finish	Gold
Convert From (Adapter End)	Jack, 8p8c (RJ45)
Convert To (Adapter End)	8p8c (RJ45), Jack
Housing Material	Polyamide (PA), Nylon, Glass Filled
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Front Side Nut
Mounting Type	Bulkhead, Panel Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Ratings	Cat5e
Shielding	Shielded
Type	Coupler

RCP-5SPFFH Series

Part	Convert From (Adapter End)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Contact Material	Convert To (Adapter End)	Type	Contact Finish	Mounting Type	Housing Material	Features	Ingress Protection	Ratings	Contact Finish Thickness	Shielding
Amphenol LTW RCP-5SPFFH-TSU7001	Jack 8p8c (RJ45)	-40 °C	105 ░C	Front Side Nut	Phosphor Bronze	8p8c (RJ45) Jack	Coupler	Gold	Bulkhead Panel Mount	Polyamide (PA) Nylon Glass Filled	Circular Bayonet Coupling	IP67 - Dust Tight Waterproof	Cat5e	Flash	Shielded
Amphenol LTW RCP-5SPFFH-TCM7001	Jack 8p8c (RJ45)	-40 °C	105 ░C	Front Side Nut	Phosphor Bronze	8p8c (RJ45) Jack	Coupler	Gold	Bulkhead Panel Mount	Polyamide (PA) Nylon Glass Filled	Circular Bayonet Coupling	IP67 - Dust Tight Waterproof	Cat5e	Flash	Shielded
Amphenol LTW RCP-5SPFFH-SCU7002	Jack 8p8c (RJ45)	-40 °C	105 ░C	Front Side Nut		8p8c (RJ45) Jack	Coupler	Gold	Bulkhead Panel Mount	Polyamide (PA) Nylon Glass Filled		IP67 - Dust Tight Waterproof	Cat5e		Shielded
Amphenol LTW RCP-5SPFFH-SCM7001	Jack 8p8c (RJ45)	-40 °C	105 ░C			8p8c (RJ45) Jack	Coupler	Gold	Bulkhead Panel Mount	Polyamide (PA) Nylon Glass Filled	Circular Bayonet Coupling	IP67 - Dust Tight Waterproof	Cat5e		Shielded
Amphenol LTW RCP-5SPFFH-SSM7001	Jack 8p8c (RJ45)	-40 °C	105 ░C	Front Side Nut		8p8c (RJ45) Jack	Coupler	Gold	Bulkhead Panel Mount	Polyamide (PA) Nylon Glass Filled		IP67 - Dust Tight Waterproof	Cat5e		Shielded
Amphenol LTW RCP-5SPFFH-TSM7001	Jack 8p8c (RJ45)	-40 °C	105 ░C	Front Side Nut	Phosphor Bronze	8p8c (RJ45) Jack	Coupler	Gold	Bulkhead Panel Mount	Polyamide (PA) Nylon Glass Filled	Circular Bayonet Coupling	IP67 - Dust Tight Waterproof	Cat5e	Flash	Shielded
Amphenol LTW RCP-5SPFFH-SSU7001	Jack 8p8c (RJ45)	-40 °C	105 ░C	Front Side Nut		8p8c (RJ45) Jack	Coupler	Gold	Bulkhead Panel Mount	Polyamide (PA) Nylon Glass Filled		IP67 - Dust Tight Waterproof	Cat5e		Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.96
		10	$ 9.87
		100	$ 8.82
		1000	$ 6.53
Newark	Each	10	$ 9.45
		25	$ 8.59
		50	$ 8.05
		100	$ 7.74
		250	$ 7.06

Description

General part information

RCP-5SPFFH Series

Modular Coupler Connector Jack, 8p8c (RJ45) To Jack, 8p8c (RJ45) Cat5e Shielded
