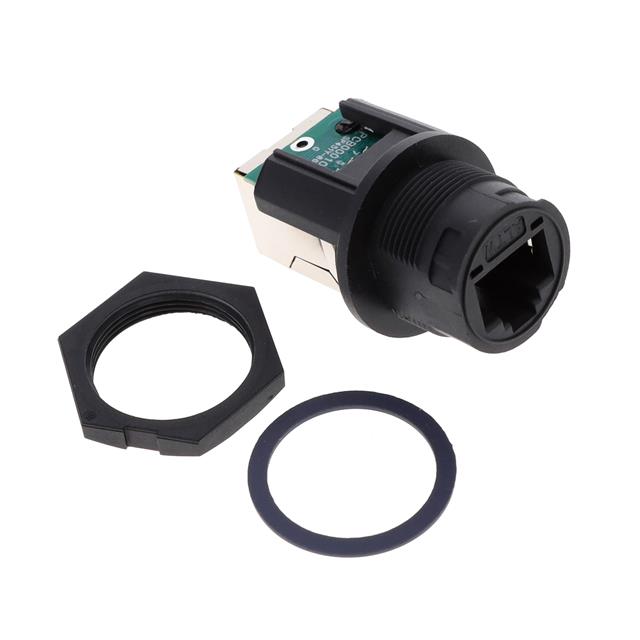

RCP-5SPFFH-TCM7001
ActiveAmphenol LTW
RJ45 C SIZE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RCP-5SPFFH-TCM7001
ActiveAmphenol LTW
RJ45 C SIZE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RCP-5SPFFH-TCM7001 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Phosphor Bronze |
| Convert From (Adapter End) | Jack, 8p8c (RJ45) |
| Convert To (Adapter End) | 8p8c (RJ45), Jack |
| Features | Circular Bayonet Coupling |
| Housing Material | Polyamide (PA), Nylon, Glass Filled |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Feature | Front Side Nut |
| Mounting Type | Bulkhead, Panel Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Ratings | Cat5e |
| Shielding | Shielded |
| Type | Coupler |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.06 | |
| 10 | $ 9.05 | |||
| 30 | $ 8.53 | |||
| 50 | $ 8.31 | |||
| 100 | $ 8.09 | |||
| 250 | $ 7.22 | |||
| 500 | $ 6.78 | |||
| 1000 | $ 5.99 | |||
Description
General part information
RCP-5SPFFH Series
Modular Coupler Connector Jack, 8p8c (RJ45) To Jack, 8p8c (RJ45) Cat5e Shielded
Documents
Technical documentation and resources
