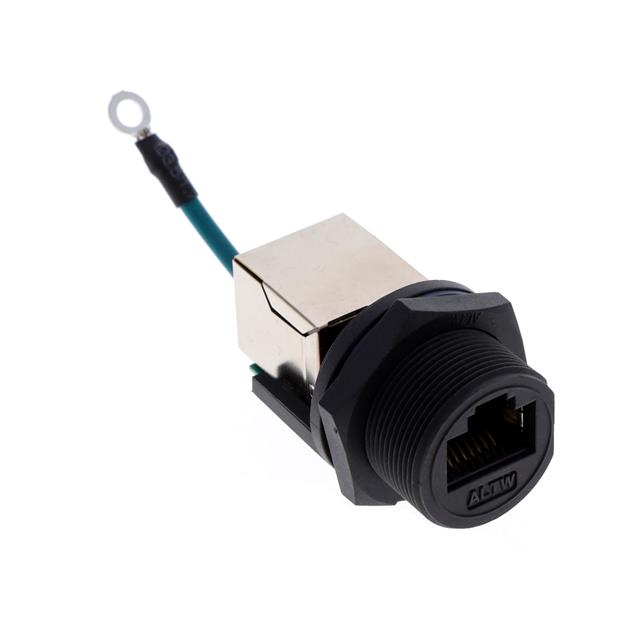

RCP-5SPFFH-SCU7002

Active

Amphenol LTW

ADAPTER, IN-LINE, 8P8C, RJ45 JACK-JACK ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RCP-5SPFFH-SCU7002

Active

Amphenol LTW

ADAPTER, IN-LINE, 8P8C, RJ45 JACK-JACK ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RCP-5SPFFH-SCU7002

Contact Finish	Gold
Convert From (Adapter End)	Jack, 8p8c (RJ45)
Convert To (Adapter End)	8p8c (RJ45), Jack
Housing Material	Polyamide (PA), Nylon, Glass Filled
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Front Side Nut
Mounting Type	Bulkhead, Panel Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Ratings	Cat5e
Shielding	Shielded
Type	Coupler

RCP-5SPFFH Series

Part	Convert From (Adapter End)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Contact Material	Convert To (Adapter End)	Type	Contact Finish	Mounting Type	Housing Material	Features	Ingress Protection	Ratings	Contact Finish Thickness	Shielding
Amphenol LTW RCP-5SPFFH-TSU7001	Jack 8p8c (RJ45)	-40 °C	105 ░C	Front Side Nut	Phosphor Bronze	8p8c (RJ45) Jack	Coupler	Gold	Bulkhead Panel Mount	Polyamide (PA) Nylon Glass Filled	Circular Bayonet Coupling	IP67 - Dust Tight Waterproof	Cat5e	Flash	Shielded
Amphenol LTW RCP-5SPFFH-TCM7001	Jack 8p8c (RJ45)	-40 °C	105 ░C	Front Side Nut	Phosphor Bronze	8p8c (RJ45) Jack	Coupler	Gold	Bulkhead Panel Mount	Polyamide (PA) Nylon Glass Filled	Circular Bayonet Coupling	IP67 - Dust Tight Waterproof	Cat5e	Flash	Shielded
Amphenol LTW RCP-5SPFFH-SCU7002	Jack 8p8c (RJ45)	-40 °C	105 ░C	Front Side Nut		8p8c (RJ45) Jack	Coupler	Gold	Bulkhead Panel Mount	Polyamide (PA) Nylon Glass Filled		IP67 - Dust Tight Waterproof	Cat5e		Shielded
Amphenol LTW RCP-5SPFFH-SCM7001	Jack 8p8c (RJ45)	-40 °C	105 ░C			8p8c (RJ45) Jack	Coupler	Gold	Bulkhead Panel Mount	Polyamide (PA) Nylon Glass Filled	Circular Bayonet Coupling	IP67 - Dust Tight Waterproof	Cat5e		Shielded
Amphenol LTW RCP-5SPFFH-SSM7001	Jack 8p8c (RJ45)	-40 °C	105 ░C	Front Side Nut		8p8c (RJ45) Jack	Coupler	Gold	Bulkhead Panel Mount	Polyamide (PA) Nylon Glass Filled		IP67 - Dust Tight Waterproof	Cat5e		Shielded
Amphenol LTW RCP-5SPFFH-TSM7001	Jack 8p8c (RJ45)	-40 °C	105 ░C	Front Side Nut	Phosphor Bronze	8p8c (RJ45) Jack	Coupler	Gold	Bulkhead Panel Mount	Polyamide (PA) Nylon Glass Filled	Circular Bayonet Coupling	IP67 - Dust Tight Waterproof	Cat5e	Flash	Shielded
Amphenol LTW RCP-5SPFFH-SSU7001	Jack 8p8c (RJ45)	-40 °C	105 ░C	Front Side Nut		8p8c (RJ45) Jack	Coupler	Gold	Bulkhead Panel Mount	Polyamide (PA) Nylon Glass Filled		IP67 - Dust Tight Waterproof	Cat5e		Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.02
		10	$ 10.65
		100	$ 9.29
		1000	$ 7.27
Newark	Each	1	$ 8.89
		5	$ 8.33
		10	$ 7.77
		25	$ 7.44
		50	$ 7.11
		100	$ 6.89
		250	$ 6.41

Description

General part information

RCP-5SPFFH Series

Modular Coupler Connector Jack, 8p8c (RJ45) To Jack, 8p8c (RJ45) Cat5e Shielded
