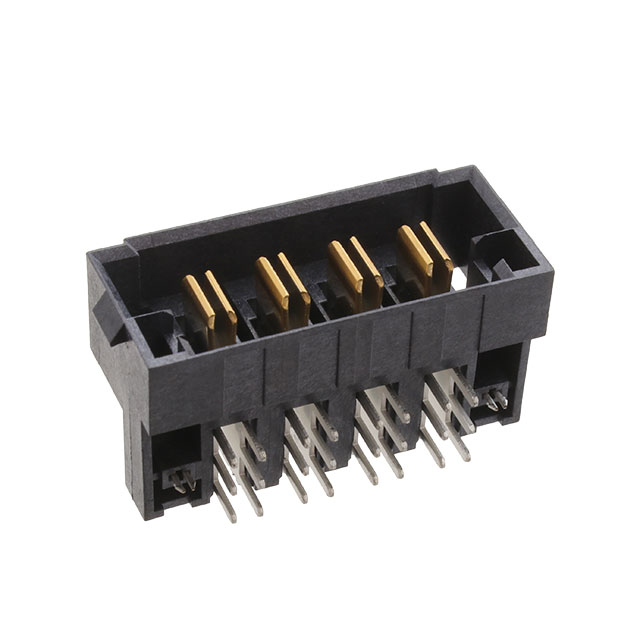

MPT-04-01-01-L-RA-LC

Active

Samtec Inc.

CONN TERMINAL STRIP M 4POWER POS 1.88MM/3.12MM SOLDER RA SIDE ENTRY THRU-HOLE POWERSTRIP™ TRAY

Search across all available documentation for this part.

Active

Samtec Inc.

CONN TERMINAL STRIP M 4POWER POS 1.88MM/3.12MM SOLDER RA SIDE ENTRY THRU-HOLE POWERSTRIP™ TRAY

Technical Specifications

Parameters and characteristics for this part

Part	Contact Material	Connector Type	Color	Contact Finish	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Termination	Features	Current Rating (Amps)	Voltage Rating	Number of Rows	Fastening Type	Pitch [x]	Pitch [x]	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type
Samtec Inc. MPT-04-01-01-L-RA-LC	Copper Alloy	Header Male Blades	Black	Gold	4	10 Áin	0.25 Ám	Solder	Latch Lock	30 A	812 V	1	Locking Ramp	5 mm	0.197 in	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Through Hole Right Angle
Samtec Inc. MPT-04-6.30-03-T-V	Copper Alloy	Header Male Blades	Black	Tin	4			Solder	Board Guide	30 A	812 V	1	Locking Ramp	5 mm	0.197 in	Liquid Crystal Polymer (LCP)	-55 °C	105 ░C	Through Hole
Samtec Inc. MPT-04-01-03-T-RA-LC	Copper Alloy	Header Male Blades	Black	Tin	4			Solder	Board Guide Board Lock	30 A	812 V	1	Locking Ramp	5 mm	0.197 in	Liquid Crystal Polymer (LCP)	-55 °C	105 ░C	Board Edge Right Angle Through Hole
Samtec Inc. MPT-04-6.30-03-L-V	Copper Alloy	Header Male Blades	Black	Gold	4	10 Áin	0.25 Ám	Solder	Board Guide Latch Lock	30 A	812 V	1	Locking Ramp	5 mm	0.197 in	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Header, Male Blades Connector Solder 0.197" (5.00mm) Through Hole, Right Angle
