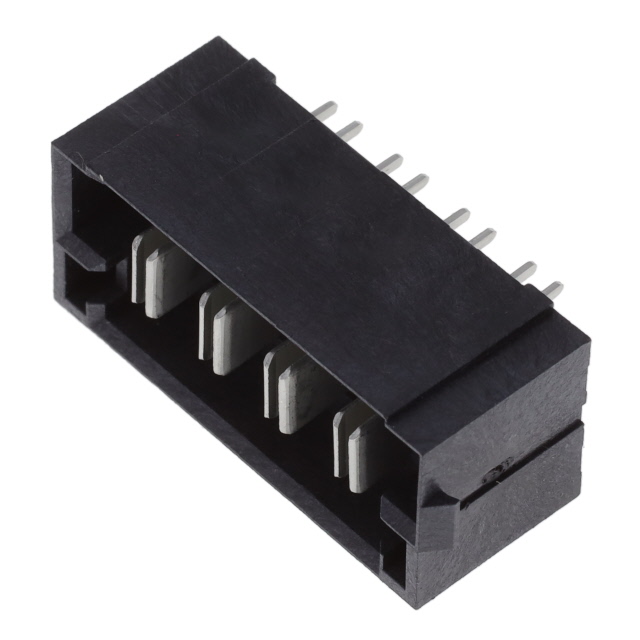

MPT-04-6.30-03-T-V - MPT-04-6.30-03-T-V

MPT-04-6.30-03-T-V

Active
Samtec Inc.

CONN, RCPT, 4POS, 1ROW, 5MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet ENMPT Datasheet+3
MPT-04-6.30-03-T-V - MPT-04-6.30-03-T-V

MPT-04-6.30-03-T-V

Active
Samtec Inc.

CONN, RCPT, 4POS, 1ROW, 5MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsTechnical Data Sheet ENMPT Datasheet+3

Technical Specifications

Parameters and characteristics for this part

SpecificationMPT-04-6.30-03-T-V
ColorBlack
Connector TypeMale Blades, Header
Contact FinishTin
Contact MaterialCopper Alloy
Current Rating (Amps)30 A
Fastening TypeLocking Ramp
FeaturesBoard Guide
Material - InsulationLiquid Crystal Polymer (LCP)
Mounting TypeThrough Hole
Number of Positions4
Number of Rows1
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-55 °C
Pitch [x]5 mm
Pitch [x]0.197 in
TerminationSolder
Voltage Rating812 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 4.40
50$ 3.59
100$ 3.05
500$ 2.84
NewarkEach 1$ 4.43
10$ 4.23
100$ 3.55
500$ 3.01
1000$ 2.55
2500$ 2.34
5000$ 2.29

Description

General part information

MPT-04 Series

4 Position Header, Male Blades Connector Solder 0.197" (5.00mm) Through Hole
