MPT-04 Series

Part	Fastening Type	Contact Finish Thickness	Contact Material	Operating Temperature (Max)	Operating Temperature (Min)	Material - Insulation	Current Rating	Contact Finish	Voltage Rating	Number of Rows	Mounting Type	Connector Type	Termination	Color	Pitch	Number of Positions	Features
Samtec Inc. MPT-04-01-01-L-RA-LC	Locking Ramp	10 Ąin	Copper Alloy	125 °C	-55 °C	LCP Liquid Crystal Polymer	30 A	Gold	812 V	1	Right Angle Through Hole	Header Male Blades	Solder	Black	0.197 in	4	Latch Lock
Samtec Inc. MPT-04-6.30-03-T-V	Locking Ramp		Copper Alloy	105 °C	-55 °C	LCP Liquid Crystal Polymer	30 A	Tin	812 V	1	Through Hole	Header Male Blades	Solder	Black	0.197 in	4	Board Guide
Samtec Inc. MPT-04-01-03-T-RA-LC	Locking Ramp		Copper Alloy	105 °C	-55 °C	LCP Liquid Crystal Polymer	30 A	Tin	812 V	1	Board Edge Right Angle Through Hole	Header Male Blades	Solder	Black	0.197 in	4	Board Guide Board Lock

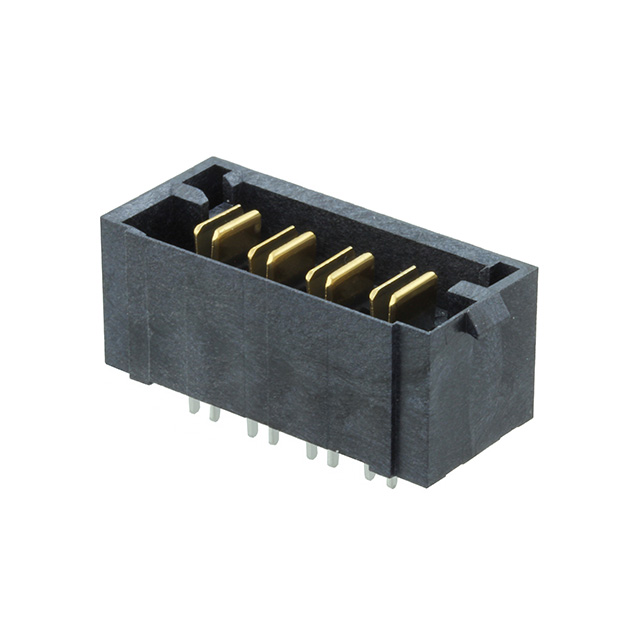

Samtec Inc. MPT-04-6.30-03-L-V	Locking Ramp	10 Ąin	Copper Alloy	125 °C	-55 °C	LCP Liquid Crystal Polymer	30 A	Gold	812 V	1	Through Hole	Header Male Blades	Solder	Black	0.197 in	4	Board Guide Latch Lock
