4-1123723-3
ActiveTE Connectivity Raychem Cable Protection

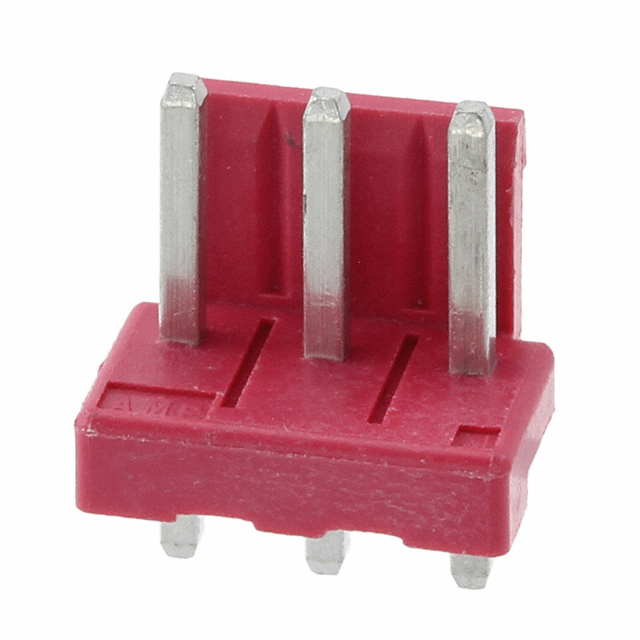

3.96 EP HDR ASSY 3P(RED)
Deep-Dive with AI
Search across all available documentation for this part.
4-1123723-3
ActiveTE Connectivity Raychem Cable Protection
3.96 EP HDR ASSY 3P(RED)
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 4-1123723-3 |
|---|---|
| Applications | General Purpose, Industrial, Lighting |
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 7.7 mm |
| Contact Length - Mating | 0.303 in |
| Contact Length - Post | 0.146 in |
| Contact Length - Post | 3.7 mm |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 7.5 A |
| Fastening Type | Locking Ramp |
| Insulation Color | Red |
| Insulation Height | 0.118 in |
| Insulation Height | 3 mm |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -25 °C |
| Overall Contact Length | 14.4 mm |
| Overall Contact Length | 0.567 " |
| Pitch - Mating | 0.156 in |
| Pitch - Mating | 3.96 mm |
| Shrouding | Shrouded - 1 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 32000 | $ 0.18 | |
Description
General part information
1123723 Series
PCB Mount Header, Vertical, Wire-to-Board, 3 Position, 3.96 mm [.156 in] Centerline, Partially Shrouded, Tin (Sn), Economy Power
