2-1123723-9

Active

TE Connectivity Raychem Cable Protection

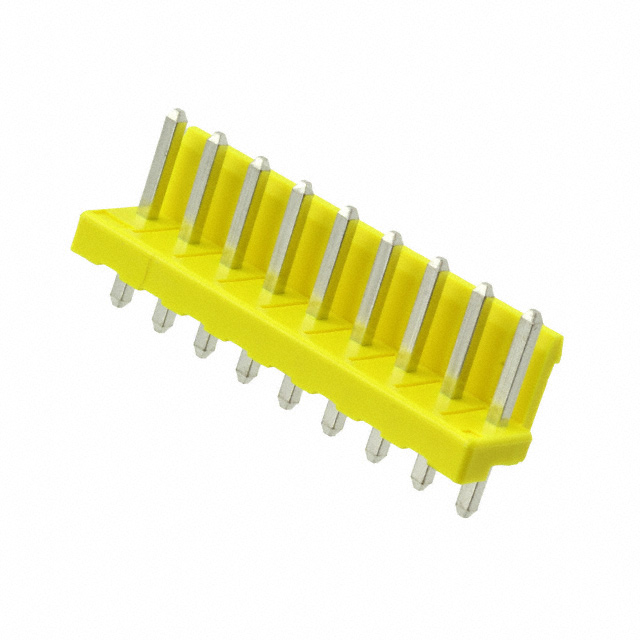

CONN HEADER VERT 9POS 3.96MM

Deep-Dive with AI

Search across all available documentation for this part.

2-1123723-9

Active

TE Connectivity Raychem Cable Protection

CONN HEADER VERT 9POS 3.96MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2-1123723-9

Applications	General Purpose, Industrial, Lighting
Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	7.7 mm
Contact Length - Mating	0.303 in
Contact Length - Post	0.146 in
Contact Length - Post	3.7 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	7.5 A
Fastening Type	Locking Ramp
Insulation Color	Yellow
Insulation Height	0.118 in
Insulation Height	3 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	9
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Overall Contact Length	14.4 mm
Overall Contact Length	0.567 "
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

1123723 Series

Part	Applications	Connector Type	Number of Positions	Mounting Type	Contact Material	Fastening Type	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Contact Finish - Post	Voltage Rating	Contact Shape	Overall Contact Length	Overall Contact Length	Contact Type	Number of Positions Loaded	Style	Contact Length - Mating	Contact Length - Mating	Termination	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Insulation Color	Number of Rows	Current Rating (Amps)
TE Connectivity Raychem Cable Protection 5-1123723-4	General Purpose Industrial Lighting	Header	4	Through Hole	Brass	Locking Ramp	0.146 in	3.7 mm	UL94 V-0	Tin	250 VAC	Square	14.4 mm	0.567 "	Male Pin	All	Board to Cable/Wire	7.7 mm	0.303 in	Solder	Polybutylene Terephthalate (PBT) Glass Filled	-25 °C	105 ░C	Shrouded - 1 Wall	0.118 in	3 mm	0.156 in	3.96 mm	Black	1	7.5 A
TE Connectivity Raychem Cable Protection 3-1123723-1	General Purpose Industrial Lighting	Header	11	Through Hole	Brass	Locking Ramp	0.146 in	3.7 mm	UL94 V-0	Tin	250 VAC	Square	14.4 mm	0.567 "	Male Pin	All	Board to Cable/Wire	7.7 mm	0.303 in	Solder	Polybutylene Terephthalate (PBT) Glass Filled	-25 °C	105 ░C	Shrouded - 1 Wall	0.118 in	3 mm	0.156 in	3.96 mm	Blue	1	7.5 A
TE Connectivity Raychem Cable Protection 1-1123723-2	General Purpose Industrial Lighting	Header	2	Through Hole	Brass	Locking Ramp	0.146 in	3.7 mm	UL94 V-0	Tin	250 VAC	Square	14.4 mm	0.567 "	Male Pin	All	Board to Cable/Wire	7.7 mm	0.303 in	Solder	Polybutylene Terephthalate (PBT) Glass Filled	-25 °C	105 ░C	Shrouded - 1 Wall	0.118 in	3 mm	0.156 in	3.96 mm	Natural	1	7.5 A
TE Connectivity Raychem Cable Protection 5-1123723-6	General Purpose Industrial Lighting	Header	6	Through Hole	Brass	Locking Ramp	0.146 in	3.7 mm	UL94 V-0	Tin	250 VAC	Square	14.4 mm	0.567 "	Male Pin	All	Board to Cable/Wire	7.7 mm	0.303 in	Solder	Polybutylene Terephthalate (PBT) Glass Filled	-25 °C	105 ░C	Shrouded - 1 Wall	0.118 in	3 mm	0.156 in	3.96 mm	Black	1	7.5 A
TE Connectivity Raychem Cable Protection 2-1123723-1	General Purpose Industrial Lighting	Header	11	Through Hole	Brass	Locking Ramp	0.146 in	3.7 mm	UL94 V-0	Tin	250 VAC	Square	14.4 mm	0.567 "	Male Pin	All	Board to Cable/Wire	7.7 mm	0.303 in	Solder	Polybutylene Terephthalate (PBT) Glass Filled	-25 °C	105 ░C	Shrouded - 1 Wall	0.118 in	3 mm	0.156 in	3.96 mm	Yellow	1	7.5 A
TE Connectivity Raychem Cable Protection 5-1123723-7	General Purpose Industrial Lighting	Header	7	Through Hole	Brass	Locking Ramp	0.146 in	3.7 mm	UL94 V-0	Tin	250 VAC	Square	14.4 mm	0.567 "	Male Pin	All	Board to Cable/Wire	7.7 mm	0.303 in	Solder	Polybutylene Terephthalate (PBT) Glass Filled	-25 °C	105 ░C	Shrouded - 1 Wall	0.118 in	3 mm	0.156 in	3.96 mm	Black	1	7.5 A
TE Connectivity Raychem Cable Protection 4-1123723-3	General Purpose Industrial Lighting	Header		Through Hole	Brass	Locking Ramp	0.146 in	3.7 mm	UL94 V-0	Tin	250 VAC	Square	14.4 mm	0.567 "	Male Pin	All	Board to Cable/Wire	7.7 mm	0.303 in	Solder	Polybutylene Terephthalate (PBT) Glass Filled	-25 °C	105 ░C	Shrouded - 1 Wall	0.118 in	3 mm	0.156 in	3.96 mm	Red	1	7.5 A
TE Connectivity Raychem Cable Protection 1-1123723-1	General Purpose Industrial Lighting	Header	11	Through Hole	Brass	Locking Ramp	0.146 in	3.7 mm	UL94 V-0	Tin	250 VAC	Square	14.4 mm	0.567 "	Male Pin	All	Board to Cable/Wire	7.7 mm	0.303 in	Solder	Polybutylene Terephthalate (PBT) Glass Filled	-25 °C	105 ░C	Shrouded - 1 Wall	0.118 in	3 mm	0.156 in	3.96 mm	Natural	1	7.5 A
TE Connectivity Raychem Cable Protection 2-1123723-9	General Purpose Industrial Lighting	Header	9	Through Hole	Brass	Locking Ramp	0.146 in	3.7 mm	UL94 V-0	Tin	250 VAC	Square	14.4 mm	0.567 "	Male Pin	All	Board to Cable/Wire	7.7 mm	0.303 in	Solder	Polybutylene Terephthalate (PBT) Glass Filled	-25 °C	105 ░C	Shrouded - 1 Wall	0.118 in	3 mm	0.156 in	3.96 mm	Yellow	1	7.5 A
TE Connectivity Raychem Cable Protection 6-1123723-1	General Purpose Industrial Lighting	Header	11	Through Hole	Brass	Locking Ramp	0.146 in	3.7 mm	UL94 V-0	Tin	250 VAC	Square	14.4 mm	0.567 "	Male Pin	All	Board to Cable/Wire	7.7 mm	0.303 in	Solder	Polybutylene Terephthalate (PBT) Glass Filled	-25 °C	105 ░C	Shrouded - 1 Wall	0.118 in	3 mm	0.156 in	3.96 mm	Green	1	7.5 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25200	$ 0.27

Description

General part information

1123723 Series

Connector Header Through Hole 9 position 0.156" (3.96mm)
