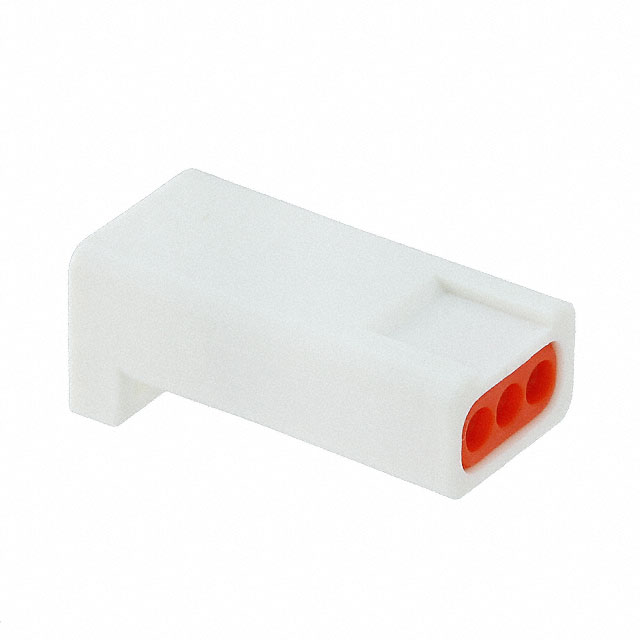

1-2834075-3 - 1-2834075-3

1-2834075-3

Active
TE Connectivity Raychem Cable Protection

CONN HOUSING RCP 3 POS 2.5MM CRIMP ST CABLE MOUNT WHITE TRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsApplication specification for Miniature waterproof connectorDatasheet+8
1-2834075-3 - 1-2834075-3

1-2834075-3

Active
TE Connectivity Raychem Cable Protection

CONN HOUSING RCP 3 POS 2.5MM CRIMP ST CABLE MOUNT WHITE TRAY

Deep-Dive with AI

DocumentsApplication specification for Miniature waterproof connectorDatasheet+8

Technical Specifications

Parameters and characteristics for this part

Specification1-2834075-3
Connector TypeReceptacle Housing for Pin Contact
Current Rating (Amps)5 A, 3.5 A
Fastening TypeLatch Holder
Housing ColorWhite
Housing MaterialPolybutylene Terephthalate (PBT)
Ingress ProtectionIP67 - Dust Tight, Waterproof
Mating Cycles30
Mounting TypeFree Hanging (In-Line)
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-40 °C
Pitch [x]0.098 in
Pitch [x]2.5 mm
StyleCable/Wire to Cable/Wire
TerminationCrimp
Voltage Rating400 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
ArrowN/A 1$ 0.53
10$ 0.49
25$ 0.46
50$ 0.45
100$ 0.44
250$ 0.43
500$ 0.41
1440$ 0.40
2880$ 0.40
DigikeyTray 1$ 0.78
10$ 0.64
25$ 0.60
40$ 0.58
80$ 0.54
230$ 0.50
440$ 0.47
945$ 0.44
2400$ 0.41

Description

General part information

SlimSeal Miniature Connectors Series

3 Position Ballast Connector, Connector, Crimp, Wire-to-Wire, 2.5 mm Centerline, Sealable, Wire & Cable, 18 – 22 AWG, SlimSeal Miniature Connectors
