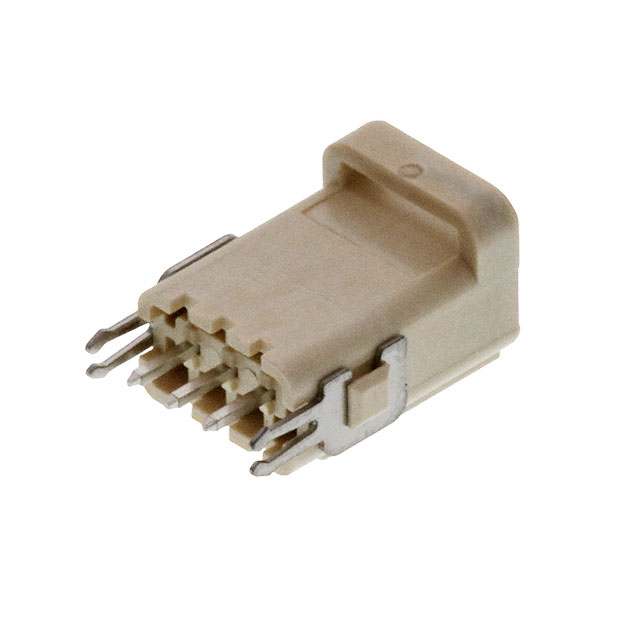

1-2834237-1
ActiveTE Connectivity Raychem Cable Protection
3P REC, IP67 VERTICAL T/H CONN,NATURE
Deep-Dive with AI
Search across all available documentation for this part.
1-2834237-1
ActiveTE Connectivity Raychem Cable Protection
3P REC, IP67 VERTICAL T/H CONN,NATURE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2834237-1 |
|---|---|
| Connector Type | Receptacle, Male Pins |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 5 A |
| Fastening Type | Latch Holder |
| Housing Color | Natural |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.098 in |
| Pitch [x] | 2.5 mm |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VDC |
SlimSeal Miniature Connectors Series
| Part | Contact Finish | Termination | Pitch [x] | Pitch [x] | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Housing Material | Contact Material | Number of Positions | Connector Type | Voltage Rating | Style | Fastening Type | Mounting Type | Housing Color | Mating Cycles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Tin | Solder | 0.098 in | 2.5 mm | IP67 - Dust Tight Waterproof | -40 °C | 105 ░C | 5 A | Liquid Crystal Polymer (LCP) | Copper Alloy | 2 | Male Pins Receptacle | 250 VDC | Board to Cable/Wire | Latch Holder | Surface Mount Right Angle | Natural | |
TE Connectivity Raychem Cable Protection | ||||||||||||||||||
TE Connectivity Raychem Cable Protection | Crimp | 0.098 in | 2.5 mm | IP67 - Dust Tight Waterproof | -40 °C | 105 ░C | 3.5 A 5 A | Thermoplastic | 2 | Plug Housing for Socket Contact | 400 V | Cable/Wire to Cable/Wire | Latch Lock | Free Hanging (In-Line) | Black | 30 | ||
TE Connectivity Raychem Cable Protection | ||||||||||||||||||
TE Connectivity Raychem Cable Protection | Crimp | 0.098 in | 2.5 mm | IP67 - Dust Tight Waterproof | -40 °C | 105 ░C | 3.5 A 5 A | Polybutylene Terephthalate (PBT) | Receptacle Housing for Pin Contact | 400 V | Cable/Wire to Cable/Wire | Latch Holder | Free Hanging (In-Line) | White | 30 | |||
TE Connectivity Raychem Cable Protection | Tin | Solder | 0.098 in | 2.5 mm | IP67 - Dust Tight Waterproof | -40 °C | 105 ░C | 5 A | Liquid Crystal Polymer (LCP) | Copper Alloy | Male Pins Receptacle | 250 VDC | Board to Cable/Wire | Latch Holder | Through Hole | Natural |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 0.30 | |
| 10 | $ 0.27 | |||
| 25 | $ 0.27 | |||
| 70 | $ 0.26 | |||
| 140 | $ 0.23 | |||
| 280 | $ 0.20 | |||
| 980 | $ 0.20 | |||
Description
General part information
SlimSeal Miniature Connectors Series
3 Position Ballast Connector, Connector, Wire-to-Board, 2.5 mm Centerline, Sealable, Printed Circuit Board, 18 – 22 AWG, SlimSeal Miniature Connectors
