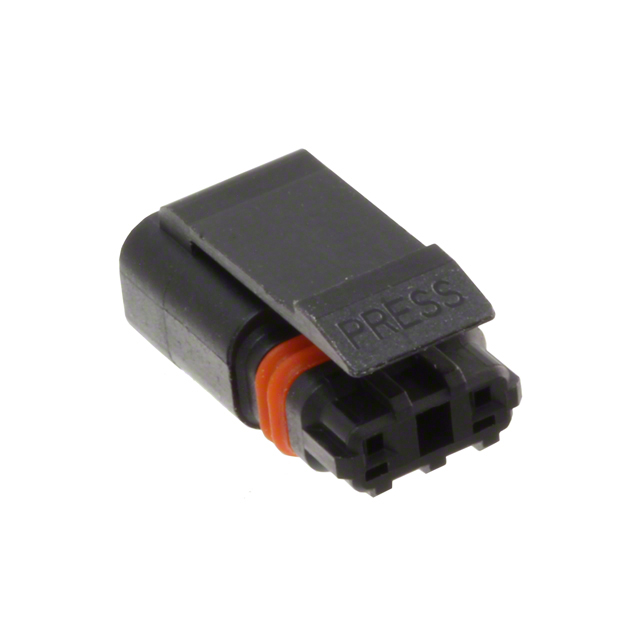

2-2834074-2
ActiveTE Connectivity Raychem Cable Protection
2P PLUG, MINIATURE WATERPROOF CONN,BLACK
Deep-Dive with AI
Search across all available documentation for this part.
2-2834074-2
ActiveTE Connectivity Raychem Cable Protection
2P PLUG, MINIATURE WATERPROOF CONN,BLACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-2834074-2 |
|---|---|
| Connector Type | Plug Housing for Socket Contact |
| Current Rating (Amps) | 5 A, 3.5 A |
| Fastening Type | Latch Lock |
| Housing Color | Black |
| Housing Material | Thermoplastic |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mating Cycles | 30 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.098 in |
| Pitch [x] | 2.5 mm |
| Style | Cable/Wire to Cable/Wire |
| Termination | Crimp |
| Voltage Rating | 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.25 | |
| 10 | $ 1.04 | |||
| 25 | $ 0.96 | |||
| 40 | $ 0.93 | |||
| 80 | $ 0.88 | |||
| 230 | $ 0.80 | |||
| 440 | $ 0.76 | |||
| 945 | $ 0.72 | |||
| 2400 | $ 0.66 | |||
Description
General part information
SlimSeal Miniature Connectors Series
2 Position Ballast Connector, Connector, Crimp, Wire-to-Wire, 2.5 mm Centerline, Sealable, Wire & Cable, 18 – 22 AWG, SlimSeal Miniature Connectors
