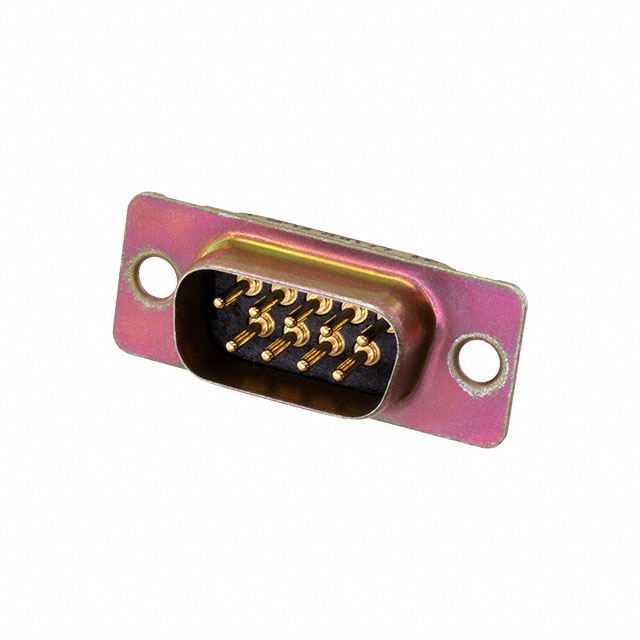

M24308/3-1F

Active

ITT Cannon, LLC

D SUB CONNECTOR, DB9, STANDARD, PLUG, MIL-C-24308 SERIES, 9 CONTACTS, DE, SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

M24308/3-1F

Active

ITT Cannon, LLC

D SUB CONNECTOR, DB9, STANDARD, PLUG, MIL-C-24308 SERIES, 9 CONTACTS, DE, SOLDER

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M24308/3-1F

Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Polyester
Flange Feature	Housing/Shell (Unthreaded)
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Yellow Chromate Plated Cadmium, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1

M24308/3 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Number of Positions	Shell Material, Finish	Connector Style	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Shell Size, Connector Layout	Contact Finish	Dielectric Material	Contact Type	Connector Type	Current Rating (Amps)	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]
ITT Cannon, LLC M24308/3-5F	-55 °C	150 °C	Housing/Shell (Unthreaded)	50	Steel Yellow Chromate Plated Cadmium	D-Sub	50 µin	1.27 µm	3	5	Gold	Polyester	Signal	Male Pins Plug	7.5 A
ITT Cannon, LLC M24308/3-2Z	-55 °C	150 °C	Housing/Shell (Unthreaded)	15	Steel Yellow Chromate Plated Zinc	D-Sub	50 µin	1.27 µm	2	2	Gold	Polyester	Signal	Male Pins Plug	7.5 A
ITT Cannon, LLC M24308/3-3F	-55 °C	150 °C	Housing/Shell (Unthreaded)		Steel Yellow Chromate Plated Cadmium	D-Sub	50 µin	1.27 µm	2		Gold	Polyester	Signal	Male Pins Plug	7.5 A	B DB	3
ITT Cannon, LLC M24308/3-5Z	-55 °C	150 °C	Housing/Shell (Unthreaded)	50	Steel Yellow Chromate Plated Zinc	D-Sub	50 µin	1.27 µm	3	5	Gold	Polyester	Signal	Male Pins Plug	7.5 A
ITT Cannon, LLC M24308/3-1F	-55 °C	150 °C	Housing/Shell (Unthreaded)	9	Steel Yellow Chromate Plated Cadmium	D-Sub	50 µin	1.27 µm	2		Gold	Polyester	Signal	Male Pins Plug	7.5 A	DE E	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.92
		1	$ 11.14
		10	$ 11.13
		10	$ 14.38
		25	$ 13.48
		25	$ 10.92
		50	$ 13.26
		50	$ 12.83
		50	$ 9.77
		100	$ 12.22
		100	$ 8.84
		250	$ 11.46
		500	$ 10.91
Newark	Each	1	$ 24.96
		1	$ 15.33
		5	$ 13.92
		10	$ 12.49
		10	$ 22.21
		25	$ 21.50
		25	$ 11.51
		50	$ 10.83
		50	$ 20.18
		100	$ 10.18
		100	$ 18.99
		250	$ 9.39

Description

General part information

M24308/3 Series

The M24308/3-1F is a 9-way D-sub Connector with cadmium finish. The 130774-0120 pin contact general purpose class G connector delivers optimum performance and reliability. The wire separator increases reliability and allows for use in high vibration environment. The high temperature insulators compatible with IPC/JEDEC J-STD-006. This solder type connector comes with push-pull, guide pin and attached clinch nut and float mount. It is suitable for both cable and printed circuit boards.
