M24308/3-3F
ActiveITT Cannon, LLC

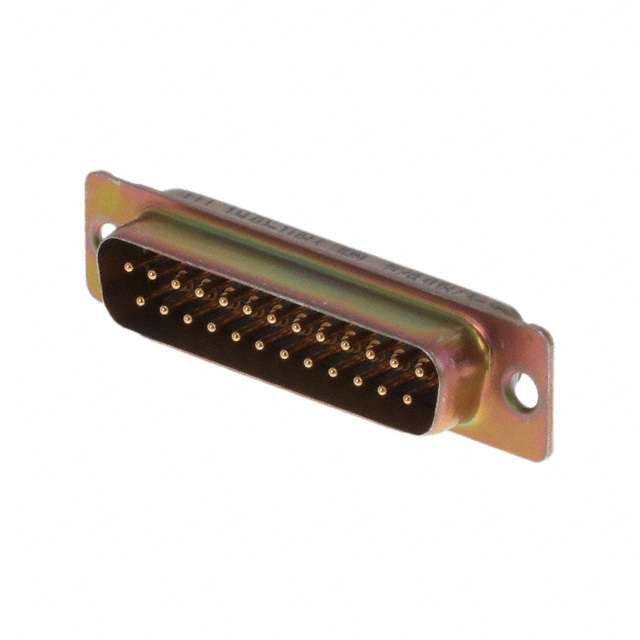

CONN D-SUB PIN 25 POS SOLDER POT ST PANEL MOUNT 25 TERMINAL 1 PORT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M24308/3-3F
ActiveITT Cannon, LLC
CONN D-SUB PIN 25 POS SOLDER POT ST PANEL MOUNT 25 TERMINAL 1 PORT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M24308/3-3F |
|---|---|
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Type | Signal |
| Current Rating (Amps) | 7.5 A |
| Dielectric Material | Polyester |
| Flange Feature | Housing/Shell (Unthreaded) |
| Number of Rows | 2 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Yellow Chromate Plated Cadmium, Steel |
| Shell Size, Connector Layout [custom] | DB, B |
| Shell Size, Connector Layout [custom] | 3 |
M24308/3 Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Number of Positions | Shell Material, Finish | Connector Style | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Shell Size, Connector Layout | Contact Finish | Dielectric Material | Contact Type | Connector Type | Current Rating (Amps) | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ITT Cannon, LLC | -55 °C | 150 °C | Housing/Shell (Unthreaded) | 50 | Steel Yellow Chromate Plated Cadmium | D-Sub | 50 µin | 1.27 µm | 3 | 5 | Gold | Polyester | Signal | Male Pins Plug | 7.5 A | ||
ITT Cannon, LLC | -55 °C | 150 °C | Housing/Shell (Unthreaded) | 15 | Steel Yellow Chromate Plated Zinc | D-Sub | 50 µin | 1.27 µm | 2 | 2 | Gold | Polyester | Signal | Male Pins Plug | 7.5 A | ||
ITT Cannon, LLC | -55 °C | 150 °C | Housing/Shell (Unthreaded) | Steel Yellow Chromate Plated Cadmium | D-Sub | 50 µin | 1.27 µm | 2 | Gold | Polyester | Signal | Male Pins Plug | 7.5 A | B DB | 3 | ||
ITT Cannon, LLC | -55 °C | 150 °C | Housing/Shell (Unthreaded) | 50 | Steel Yellow Chromate Plated Zinc | D-Sub | 50 µin | 1.27 µm | 3 | 5 | Gold | Polyester | Signal | Male Pins Plug | 7.5 A | ||
ITT Cannon, LLC | -55 °C | 150 °C | Housing/Shell (Unthreaded) | 9 | Steel Yellow Chromate Plated Cadmium | D-Sub | 50 µin | 1.27 µm | 2 | Gold | Polyester | Signal | Male Pins Plug | 7.5 A | DE E | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M24308/3 Series
25 Position D-Sub Plug, Male Pins Connector
