M24308/3-2Z

Active

ITT Cannon, LLC

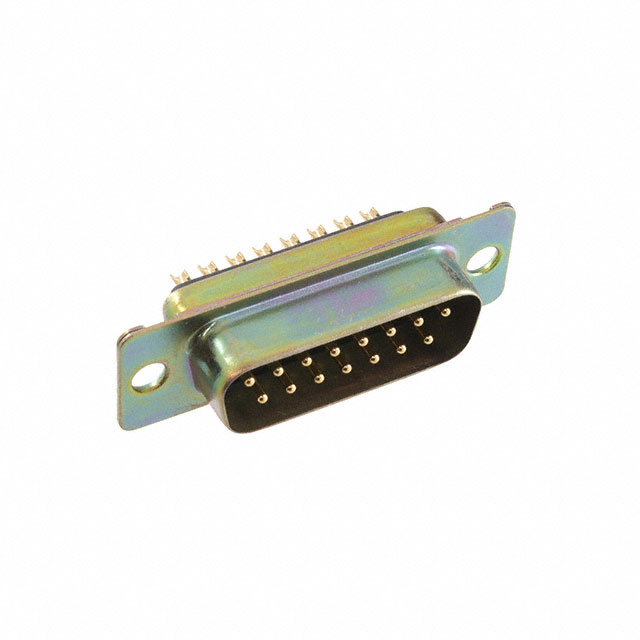

CONN D-SUB PLUG 15POS PNL MNT

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN D-SUB PLUG 15POS PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	M24308/3-2Z

Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Polyester
Flange Feature	Housing/Shell (Unthreaded)
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Steel, Yellow Chromate Plated Zinc
Shell Size, Connector Layout	2

Part	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Number of Positions	Shell Material, Finish	Connector Style	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Shell Size, Connector Layout	Contact Finish	Dielectric Material	Contact Type	Connector Type	Current Rating (Amps)	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]
ITT Cannon, LLC M24308/3-5F	-55 °C	150 °C	Housing/Shell (Unthreaded)	50	Steel Yellow Chromate Plated Cadmium	D-Sub	50 µin	1.27 µm	3	5	Gold	Polyester	Signal	Male Pins Plug	7.5 A
ITT Cannon, LLC M24308/3-2Z	-55 °C	150 °C	Housing/Shell (Unthreaded)	15	Steel Yellow Chromate Plated Zinc	D-Sub	50 µin	1.27 µm	2	2	Gold	Polyester	Signal	Male Pins Plug	7.5 A
ITT Cannon, LLC M24308/3-3F	-55 °C	150 °C	Housing/Shell (Unthreaded)		Steel Yellow Chromate Plated Cadmium	D-Sub	50 µin	1.27 µm	2		Gold	Polyester	Signal	Male Pins Plug	7.5 A	B DB	3
ITT Cannon, LLC M24308/3-5Z	-55 °C	150 °C	Housing/Shell (Unthreaded)	50	Steel Yellow Chromate Plated Zinc	D-Sub	50 µin	1.27 µm	3	5	Gold	Polyester	Signal	Male Pins Plug	7.5 A
ITT Cannon, LLC M24308/3-1F	-55 °C	150 °C	Housing/Shell (Unthreaded)	9	Steel Yellow Chromate Plated Cadmium	D-Sub	50 µin	1.27 µm	2		Gold	Polyester	Signal	Male Pins Plug	7.5 A	DE E	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 Position D-Sub Plug, Male Pins Connector
