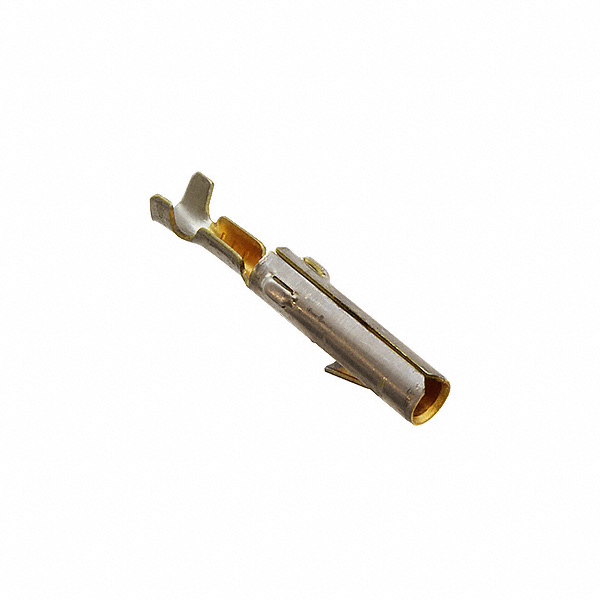

350078-5
ActiveTE Connectivity Raychem Cable Protection
CMNL SOK 30-22 AUNIBR
Deep-Dive with AI
Search across all available documentation for this part.
350078-5
ActiveTE Connectivity Raychem Cable Protection
CMNL SOK 30-22 AUNIBR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 350078-5 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Wire Gauge [Max] | 30 AWG |
| Wire Gauge [Min] | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.46 | |
| 10 | $ 1.34 | |||
| 25 | $ 1.30 | |||
| 50 | $ 1.28 | |||
| 100 | $ 1.19 | |||
| 250 | $ 1.17 | |||
| 500 | $ 1.07 | |||
| 1000 | $ 0.95 | |||
| 2500 | $ 0.88 | |||
| Tape & Reel (TR) | 26000 | $ 0.82 | ||
Description
General part information
Commercial MATE-N-LOK Series
Socket Contact, Gold (Au), 250 VAC, Locking Lance Contact Retention, 30 – 22 AWG, .05 – .4 mm² Wire, Crimp, Brass, Power, Commercial MATE-N-LOK
