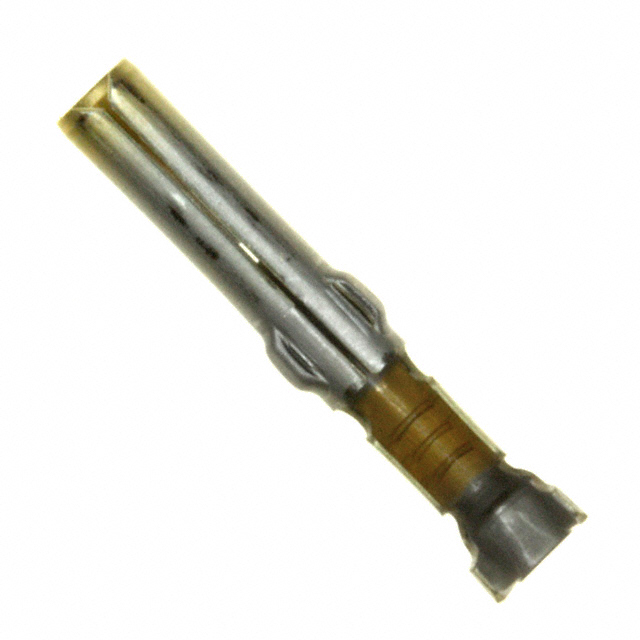

60617-5

Active

TE Connectivity Raychem Cable Protection

CONN SOCKET 18-24AWG CRIMP GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

60617-5

Active

TE Connectivity Raychem Cable Protection

CONN SOCKET 18-24AWG CRIMP GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	60617-5

Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Termination	Crimp
Pin or Socket	Socket
Wire Gauge [Max]	24 AWG
Wire Gauge [Min]	17.5 AWG

Commercial MATE-N-LOK Series

Part	Pin or Socket	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge [Max]	Wire Gauge [Min]	Contact Termination	Contact Finish	Wire Type	Number of Rows	Pitch [x]	Pitch [x]	Cable Termination	Features	Contact Type	Mounting Type	Wire Gauge	Number of Positions	Connector Type	Color	Type	Row Spacing	Row Spacing	Note	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Insulation Material	Shell Material	Housing Color	Orientation	Shielding	Material Flammability Rating	Contact Shape
TE Connectivity Raychem Cable Protection 60617-5	Socket	0.76 Ám	30 Áin	24 AWG	17.5 AWG	Crimp	Gold
TE Connectivity Raychem Cable Protection 61314-6	Socket	0.76 Ám	30 Áin	24 AWG	17.5 AWG	Crimp	Gold
TE Connectivity Raychem Cable Protection 794036-2							Tin	Discrete	1	0.2 in	5.08 mm	IDC	Feed Through	Female Socket	Free Hanging (In-Line)	20 AWG	4	Plug	Yellow
TE Connectivity Raychem Cable Protection 61116-4	Pin			24 AWG	17.5 AWG	Crimp	Tin													Stamped
TE Connectivity Raychem Cable Protection 1-480672-0						Crimp			3	0.24 in	6.1 mm			Female Socket	Panel Mount Snap-In		9	Plug	Natural		0.24 in	6.1 mm	Contacts Not Included	105 ░C	-55 °C	Locking Ramp	Nylon Polyamide (PA)
TE Connectivity Raychem Cable Protection 925076-7														Crimp	Free Hanging (In-Line)		4	Plug Housing		For Female Sockets			Contacts Not Included	105 ░C	-55 °C	Push-Pull		Polyamide (PA66) Nylon 6/6	Natural	Keyed	Unshielded	UL94 V-0	Circular
TE Connectivity Raychem Cable Protection 1-480273-0						Crimp			3	0.202 in	5.13 mm			Female Socket	Panel Mount Snap-In		6	Plug	Natural		0.202 in	5.13 mm	Contacts Not Included	105 ░C	-55 °C	Latch Lock	Nylon Polyamide (PA)
TE Connectivity Raychem Cable Protection 350078-5	Socket	0.76 Ám	30 Áin	30 AWG	22 AWG	Crimp	Gold
TE Connectivity Raychem Cable Protection 350079-5	Pin	0.76 Ám	30 Áin	30 AWG	22 AWG	Crimp	Gold
TE Connectivity Raychem Cable Protection 880687-1	Socket			17 AWG	13 AWG	Crimp														Stamped

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.27
		10	$ 1.93
		25	$ 1.81
		50	$ 1.72
		100	$ 1.64
		250	$ 1.54
		500	$ 1.46
		1000	$ 1.39
		3000	$ 1.29

Description

General part information

Commercial MATE-N-LOK Series

Socket Contact Gold 18-24 AWG Crimp
