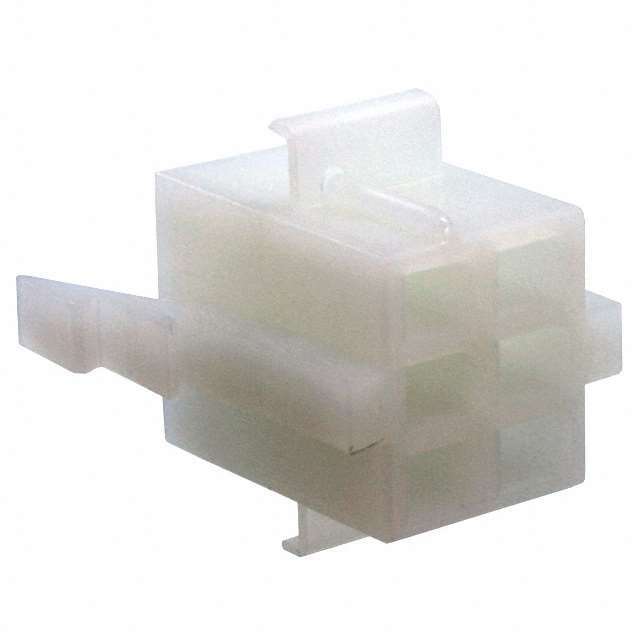

1-480273-0
ActiveTE Connectivity Raychem Cable Protection
06P CMNL PLUG HSG P/M NATL
Deep-Dive with AI
Search across all available documentation for this part.
1-480273-0
ActiveTE Connectivity Raychem Cable Protection
06P CMNL PLUG HSG P/M NATL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-480273-0 |
|---|---|
| Color | Natural |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Insulation Material | Polyamide (PA), Nylon |
| Mounting Type | Panel Mount, Snap-In |
| Note | Contacts Not Included |
| Number of Positions | 6 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.202 in |
| Pitch [x] | 5.13 mm |
| Row Spacing | 5.13 mm |
| Row Spacing | 0.202 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.07 | |
| 10 | $ 1.00 | |||
| 25 | $ 0.96 | |||
| 50 | $ 0.95 | |||
| 100 | $ 0.86 | |||
| 250 | $ 0.83 | |||
| 500 | $ 0.76 | |||
| 1000 | $ 0.68 | |||
| 2500 | $ 0.63 | |||
Description
General part information
Commercial MATE-N-LOK Series
6 Position, Plug, Housing, Crimp, Wire-to-Panel / Wire-to-Wire, UL 94V-2, 5.1 mm [.202 in] Centerline, 2 Row, 250 VAC, Commercial MATE-N-LOK
