8125/08 100

Active

3M (TC)

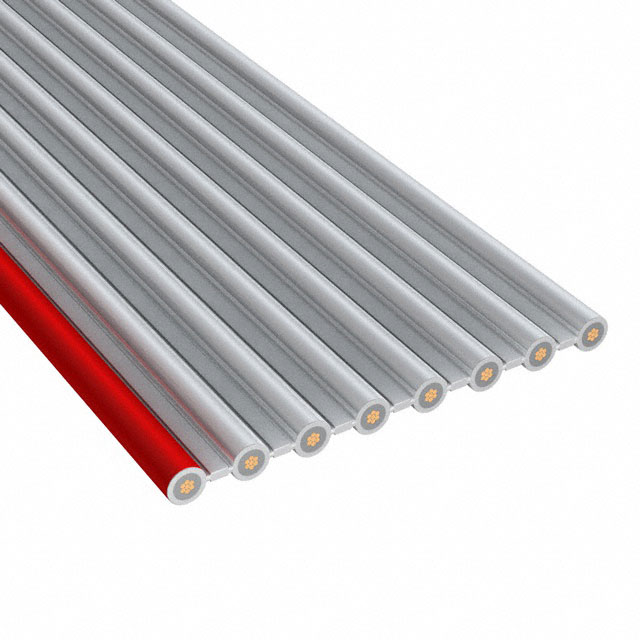

CBL RIBN 8COND 0.1 GRAY 100'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8125/08 100

Active

3M (TC)

CBL RIBN 8COND 0.1 GRAY 100'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8125/08 100

Cable Type	Flat Cable
Conductor Material	Copper, Tinned
Conductor Strand	32 AWG
Conductor Strand [custom]	7
Features	Zippable
First Conductor Mark	Red
Insulation Resistance	10 GOhm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	1 ft, 25 ft
Length	304.8 mm, 7.62 m
Length [x]	100 ft, 10 ft
Length [x]	30.48 m, 3.05 m
Number of Conductors	8
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Ratings	UL E42769
Ribbon Thickness	1.37 mm
Ribbon Thickness	0.054 in
Ribbon Width	0.768 "
Ribbon Width	19.51 mm
Shielding	Unshielded
Voltage	300 V
Wire Gauge	24 AWG

8125 Series

Part	Ratings	Ribbon Width	Ribbon Width	Shielding	First Conductor Mark	Wire Gauge	Pitch [x]	Pitch [x]	Voltage	Features	Insulation Resistance	Length	Length	Conductor Material	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Ribbon Thickness	Ribbon Thickness	Jacket Color	Cable Type	Jacket (Insulation) Material	Number of Conductors	Conductor Strand [custom]	Conductor Strand	Ribbon Width [y]	Ribbon Width
3M (TC) 8125/04 100	UL E42769	0.368 in	9.35 mm	Unshielded	Red	24 AWG	2.54 mm	0.1 in	300 V	Zippable	10 GOhm	1 ft	304.8 mm	Copper Tinned	3.05 m 30.48 m	10 ft 100 ft	-20 C	105 ░C	1.37 mm	0.054 in	Gray	Flat Cable	Poly-Vinyl Chloride (PVC)	4	7	32 AWG
3M (TC) 8125/16	UL E42769			Unshielded	Red	24 AWG	2.54 mm	0.1 in	300 V	Zippable	10 GOhm			Copper Tinned	30.48 m	100 ft	-20 C	105 ░C	1.37 mm	0.054 in	Gray	Flat Cable	Poly-Vinyl Chloride (PVC)	16	7	32 AWG
3M (TC) 8125/06 100	UL E42769	0.568 in	14.43 mm	Unshielded	Red	24 AWG	2.54 mm	0.1 in	300 V	Zippable	10 GOhm	50 ft	15.24 m	Copper Tinned	3.05 m 30.48 m	10 ft 100 ft	-20 C	105 ░C	1.37 mm	0.054 in	Gray	Flat Cable	Poly-Vinyl Chloride (PVC)	6	7	32 AWG
3M (TC) 8125/10 100	UL E42769		24.59 mm	Unshielded	Red	24 AWG	2.54 mm	0.1 in	300 V	Zippable	10 GOhm	1 ft 25 ft	7.62 m 304.8 mm	Copper Tinned	3.05 m 30.48 m	10 ft 100 ft	-20 C	105 ░C	1.37 mm	0.054 in	Gray	Flat Cable	Poly-Vinyl Chloride (PVC)	10	7	32 AWG	0.968 in
3M (TC) 8125/08 100	UL E42769		0.768 "	Unshielded	Red	24 AWG	2.54 mm	0.1 in	300 V	Zippable	10 GOhm	1 ft 25 ft	7.62 m 304.8 mm	Copper Tinned	3.05 m 30.48 m	10 ft 100 ft	-20 C	105 ░C	1.37 mm	0.054 in	Gray	Flat Cable	Poly-Vinyl Chloride (PVC)	8	7	32 AWG		19.51 mm
3M (TC) 8125/26	UL E42769			Unshielded	Red	24 AWG	2.54 mm	0.1 in	300 V	Zippable	10 GOhm			Copper Tinned	30.48 m	100 ft	-20 C	105 ░C	1.37 mm	0.054 in	Gray	Flat Cable	Poly-Vinyl Chloride (PVC)	26	7	32 AWG
3M (TC) 8125/20 100	UL E42769	1.968 "	49.99 mm	Unshielded	Red	24 AWG	2.54 mm	0.1 in	300 V	Zippable	10 GOhm			Copper Tinned	30.48 m	100 ft	-20 C	105 ░C	1.37 mm	0.054 in	Gray	Flat Cable	Poly-Vinyl Chloride (PVC)	20	7	32 AWG
3M (TC) 8125/05	UL E42769			Unshielded	Red	24 AWG	2.54 mm	0.1 in	300 V	Zippable	10 GOhm			Copper Tinned	30.48 m	100 ft	-20 C	105 ░C	1.37 mm	0.054 in	Gray	Flat Cable	Poly-Vinyl Chloride (PVC)	5	7	32 AWG
3M (TC) 8125/12 100	UL E42769	1.168 in	29.67 mm	Unshielded	Red	24 AWG	2.54 mm	0.1 in	300 V	Zippable	10 GOhm			Copper Tinned	30.48 m	100 ft	-20 C	105 ░C	1.37 mm	0.054 in	Gray	Flat Cable	Poly-Vinyl Chloride (PVC)	12	7	32 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.54
		1	$ 67.87
		1	$ 31.90
		5	$ 3.77
		5	$ 26.32
		5	$ 55.77
		10	$ 51.30
		10	$ 3.48
		10	$ 24.21
		25	$ 21.69
		25	$ 3.13
		25	$ 45.77
		50	$ 2.87
		50	$ 19.90
		50	$ 41.83
		100	$ 38.41
		100	$ 2.65
		100	$ 18.21
	Spool	1	$ 259.94
		2	$ 239.81
		3	$ 226.37
		5	$ 206.70
		7	$ 200.72
		10	$ 187.91
		25	$ 164.94
		50	$ 135.71

Description

General part information

8125 Series

Flat Ribbon Cable Gray 8 Conductors 0.100" (2.54mm) Flat Cable 100.0' (30.48m)
