8125/04 100

Unknown

3M (TC)

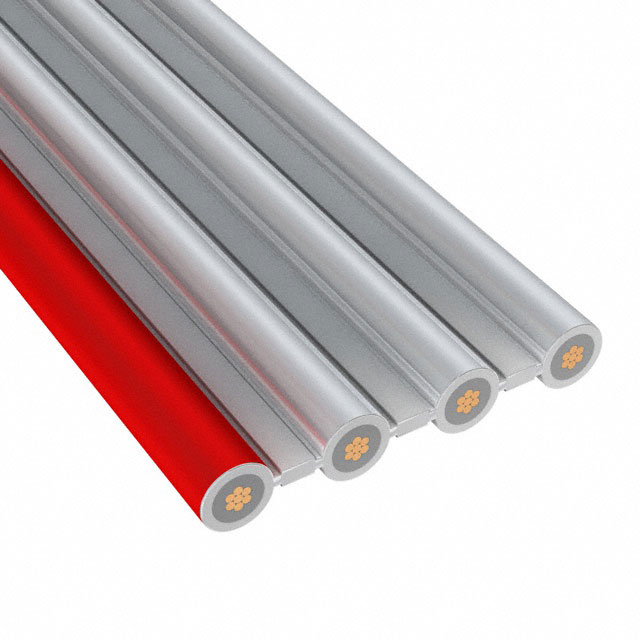

CBL RIBN 4COND FLAT 0.1 GRAY 10'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCables & Accessories Selection Guide Datasheet

8125/04 100

Unknown

3M (TC)

CBL RIBN 4COND FLAT 0.1 GRAY 10'

Deep-Dive with AI

DocumentsCables & Accessories Selection Guide Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8125/04 100

Cable Type	Flat Cable
Conductor Material	Copper, Tinned
Conductor Strand	32 AWG
Conductor Strand [custom]	7
Features	Zippable
First Conductor Mark	Red
Insulation Resistance	10 GOhm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	1 ft
Length	304.8 mm
Length [x]	3.05 m, 30.48 m
Length [x]	10 ft, 100 ft
Number of Conductors	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Ratings	UL E42769
Ribbon Thickness	1.37 mm
Ribbon Thickness	0.054 in
Ribbon Width	0.368 in
Ribbon Width	9.35 mm
Shielding	Unshielded
Voltage	300 V
Wire Gauge	24 AWG

8125 Series

Part	Ratings	Ribbon Width	Ribbon Width	Shielding	First Conductor Mark	Wire Gauge	Pitch [x]	Pitch [x]	Voltage	Features	Insulation Resistance	Length	Length	Conductor Material	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Ribbon Thickness	Ribbon Thickness	Jacket Color	Cable Type	Jacket (Insulation) Material	Number of Conductors	Conductor Strand [custom]	Conductor Strand	Ribbon Width [y]	Ribbon Width
3M (TC) 8125/04 100	UL E42769	0.368 in	9.35 mm	Unshielded	Red	24 AWG	2.54 mm	0.1 in	300 V	Zippable	10 GOhm	1 ft	304.8 mm	Copper Tinned	3.05 m 30.48 m	10 ft 100 ft	-20 C	105 ░C	1.37 mm	0.054 in	Gray	Flat Cable	Poly-Vinyl Chloride (PVC)	4	7	32 AWG
3M (TC) 8125/16	UL E42769			Unshielded	Red	24 AWG	2.54 mm	0.1 in	300 V	Zippable	10 GOhm			Copper Tinned	30.48 m	100 ft	-20 C	105 ░C	1.37 mm	0.054 in	Gray	Flat Cable	Poly-Vinyl Chloride (PVC)	16	7	32 AWG
3M (TC) 8125/06 100	UL E42769	0.568 in	14.43 mm	Unshielded	Red	24 AWG	2.54 mm	0.1 in	300 V	Zippable	10 GOhm	50 ft	15.24 m	Copper Tinned	3.05 m 30.48 m	10 ft 100 ft	-20 C	105 ░C	1.37 mm	0.054 in	Gray	Flat Cable	Poly-Vinyl Chloride (PVC)	6	7	32 AWG
3M (TC) 8125/10 100	UL E42769		24.59 mm	Unshielded	Red	24 AWG	2.54 mm	0.1 in	300 V	Zippable	10 GOhm	1 ft 25 ft	7.62 m 304.8 mm	Copper Tinned	3.05 m 30.48 m	10 ft 100 ft	-20 C	105 ░C	1.37 mm	0.054 in	Gray	Flat Cable	Poly-Vinyl Chloride (PVC)	10	7	32 AWG	0.968 in
3M (TC) 8125/08 100	UL E42769		0.768 "	Unshielded	Red	24 AWG	2.54 mm	0.1 in	300 V	Zippable	10 GOhm	1 ft 25 ft	7.62 m 304.8 mm	Copper Tinned	3.05 m 30.48 m	10 ft 100 ft	-20 C	105 ░C	1.37 mm	0.054 in	Gray	Flat Cable	Poly-Vinyl Chloride (PVC)	8	7	32 AWG		19.51 mm
3M (TC) 8125/26	UL E42769			Unshielded	Red	24 AWG	2.54 mm	0.1 in	300 V	Zippable	10 GOhm			Copper Tinned	30.48 m	100 ft	-20 C	105 ░C	1.37 mm	0.054 in	Gray	Flat Cable	Poly-Vinyl Chloride (PVC)	26	7	32 AWG
3M (TC) 8125/20 100	UL E42769	1.968 "	49.99 mm	Unshielded	Red	24 AWG	2.54 mm	0.1 in	300 V	Zippable	10 GOhm			Copper Tinned	30.48 m	100 ft	-20 C	105 ░C	1.37 mm	0.054 in	Gray	Flat Cable	Poly-Vinyl Chloride (PVC)	20	7	32 AWG
3M (TC) 8125/05	UL E42769			Unshielded	Red	24 AWG	2.54 mm	0.1 in	300 V	Zippable	10 GOhm			Copper Tinned	30.48 m	100 ft	-20 C	105 ░C	1.37 mm	0.054 in	Gray	Flat Cable	Poly-Vinyl Chloride (PVC)	5	7	32 AWG
3M (TC) 8125/12 100	UL E42769	1.168 in	29.67 mm	Unshielded	Red	24 AWG	2.54 mm	0.1 in	300 V	Zippable	10 GOhm			Copper Tinned	30.48 m	100 ft	-20 C	105 ░C	1.37 mm	0.054 in	Gray	Flat Cable	Poly-Vinyl Chloride (PVC)	12	7	32 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.89
		1	$ 19.39
		5	$ 16.03
		5	$ 2.40
		10	$ 2.22
		25	$ 1.99
		50	$ 1.83
		100	$ 1.69
	Spool	1	$ 151.49
		5	$ 120.39
		10	$ 109.44
		25	$ 96.19
		50	$ 86.98
		100	$ 74.88

Description

General part information

8125 Series

Flat Ribbon Cable Gray 4 Conductors 0.100" (2.54mm) Flat Cable 10.0' (3.05m)

Documents

Technical documentation and resources

Cables & Accessories Selection Guide

Datasheet
